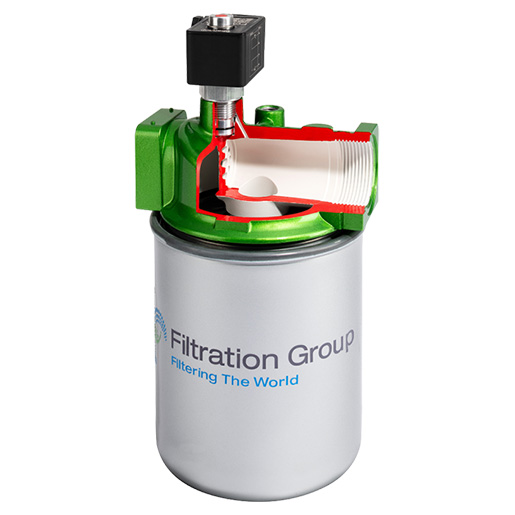

Filtration Group Low pressure filter PI 2205-069

https://www.filcom-technik.de/web/image/product.template/52508/image_1920?unique=7796e26

Low-pressure filter Pi 225-69
Nominal size 63 l/min
Includes:
- Electrical maintenance indicator

181.83 € 181.83 EUR 181.83 € VAT Included

191.00 € VAT Included

(181.83 € / pcs)

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77665854

Category :

Low Pressure Filters

Weight :

0.40 kg

Filtration Group (formerly MAHLE) Low pressure filter Pi 225-69 / 77665854

  • Intended for installation in pipes
  • Modular system for optimum filter selection
  • Flow-optimized design of the components, resulting in minimal pressure loss
  • Compact design means less space required
  • Electrical maintenance indicator
  • Version with threaded connections
  • Available with high-efficiency Mic or Sm-x filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded

    Important note:
    We supply the Mahle Pi 225-69 low-pressure filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 3/4
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Max. Operating pressure (bar) 10
    Nominal size 63
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter head material ALU
