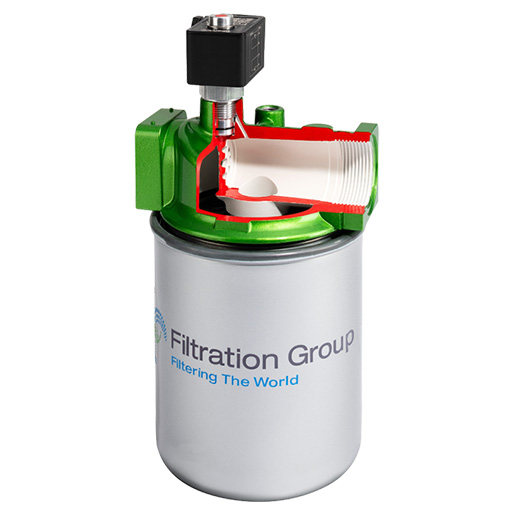

Filtration Group Low pressure filter Pi 2210-056

Low-pressure filter Pi 221-56
Nominal size 1 l/min
Includes:
- Bypass

137.94 € 137.94 EUR 137.94 € VAT Included

138.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77665979

Category :

Low Pressure Filters

Weight :

0.82 kg

Description
Specifications

Filtration Group (formerly MAHLE) Low pressure filter Pi 221-56 / 77665979

Intended for installation in pipes

Modular system for optimum filter selection

Flow-optimized design of the components, resulting in minimal pressure loss

Compact design means less space required

Bypass

Version with threaded connections

Available with high-efficiency Mic or Sm-x filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Filtration Group (formerly MAHLE) low-pressure filter Pi 221-56 without the filter element.
For suitable filter elements, see "Accessories"

Connection type	Thread ISO 228
Connection size	G1 1/4
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	16
Nominal size	100
Seal material	NBR
Filter head material	ALU
