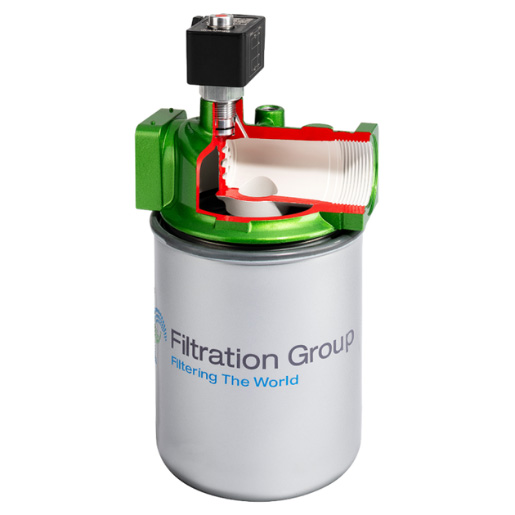

Filtration Group Low pressure filter Pi 2210-057

Low-pressure filter Pi 221-57
Nominal size 1 l/min
Includes:
- Bypass
- Visual maintenance indicator

228.34 € 228.34 EUR 228.34 € VAT Included

234.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77665987

Category :

Filtration Group Low Pressure Filter

Weight :

0.86 kg

Filtration Group (formerly MAHLE) Low-pressure filter Pi 221-57 / 77665987

Intended for installation in pipes

Modular system for optimum filter selection

Flow-optimized design of the components, resulting in minimal pressure loss

Compact design means less space required

Bypass

Visual maintenance indicator

Version with threaded connections

Available with high-efficiency Mic or Sm-x filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 221-57 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G1 1/4
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	16
Nominal size	100
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter head material	ALU
