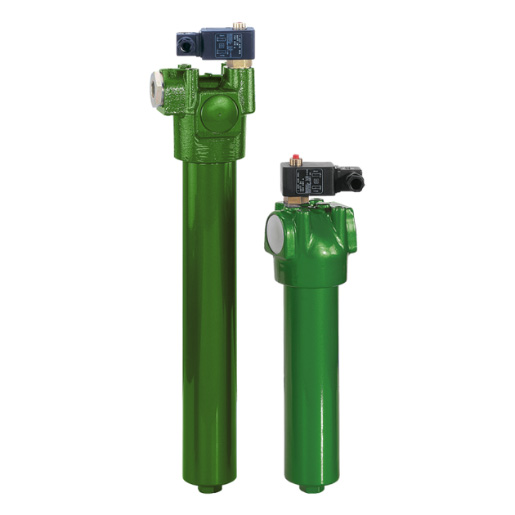

Filtration Group High pressure filter Pi 4208-011
High-pressure filter Pi 42
rated size 8 l/min,
threaded version
including:
- bypass
- hole for maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) High-pressure filter Pi 428-11 / 77666431
Important note:
We supply the Mahle Pi 428-11 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Flange ISO 6162-2 |
| Bypass opening pressure (bar) | 7 |
| Filter housing material | Steel |
| Operating temperature | -10°C bis +120°C |
| Nominal size | 80 |
| Filter head material | GGG |
| Seal material | NBR |
| Max. Operating pressure (bar) | 400 |
