Filtration Group High pressure filter Pi 40025-011

Price:

642.25 €
    ​
English (US)
  2. Shop
  3. High Pressure Filter
  4. Filtration Group High pressure filter Pi 40025-011
Filtration Group High pressure filter Pi 40016-015/PIS 3152 incl. Filter element PI 23016 DN PS 10
Filtration Group High pressure filter Pi 40016-015/PIS 3152 incl. Filter element PI 23016 DN PS 10
860.61 €
860.61 €
Filtration Group High pressure filter Pi 40025-012
Filtration Group High pressure filter Pi 40025-012
650.86 €
650.86 €

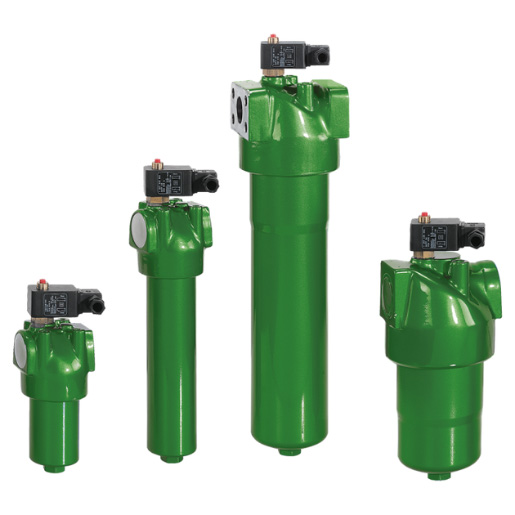

Filtration Group High pressure filter Pi 40025-011

https://www.filcom-technik.de/web/image/product.template/233812/image_1920?unique=c0c8d8f

High-pressure filter Pi 4 DIN 2455
Nominal size 25 l/min,
includes:
- Bypass
- Hole for maintenance indicator

642.25 € 642.25 EUR 642.25 € VAT Included

674.64 € VAT Included

  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group
Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :
78207466
Category :
High Pressure Filter
Weight :
14.00 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 40025-011 / 78207466

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle Pi 425-11 high-pressure filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Contact type Contamination indicator eingeschraubtem Blindstopfen für VA
    Bypass opening pressure (bar) 7
    Filter housing material Stahl
    Betriebstemperatur (°C) -10°C bis +120°C
    Anschlussart Gewinde ISO 228
    Nenngröße 250
    Werkstoff Filterkopf GGG
    Connection size G 1 1/2
    Seal material NBR
    Max. Operating pressure (bar) 400
    FG-Datenblatt_Pi4000_NG400_de
    Download
    ​
