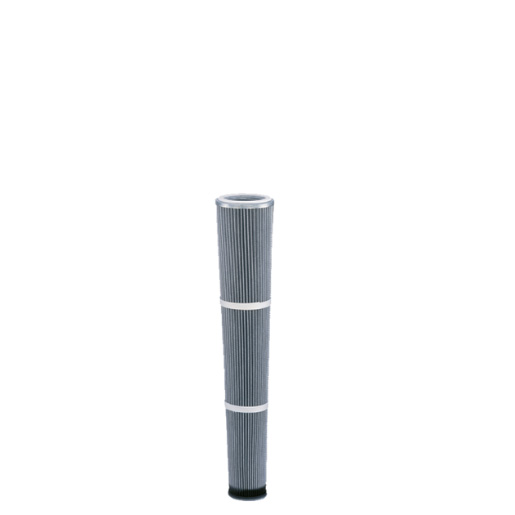

Filtration Group dust filter element 852 903 TI 70-1

Conical dust filter element

Diameter:328 mm

Filter material: Cellulose with 30 % polyester fibers

Filter area: 1 m²

78.64 € 78.64 EUR 78.64 € VAT Included

82.60 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

78311763

Category :

Dedusting Filter Media

Weight :

0.61 kg

Filtration Group (formerly MAHLE) Dust filter element 852 93 TI 7-1 / 78311763

Lower filter surface load due to reduced inflow velocity

Even cleaning down to the lower area

3 % more free area - thus improved dust sedimentation

Longer element service life thanks to improved cleaning line

Notes:
- Deviations in the volume flow values are possible due to the type of dust and gas composition.
- The operating temperature depends on the medium/material.

Outer diameter (mm)	120
Element fastening	Rd 72 x 5
Element shape	Conical
Element type	852 Series
End disc material	Sheet metal end plate
Wrinkle stabilisation	Banderole
Filter material	TI 70
Height (mm)	600
Inner diameter (mm)	68
Installation	Raw gas side
Medium	Air
Seal material	Felt (polyester)
