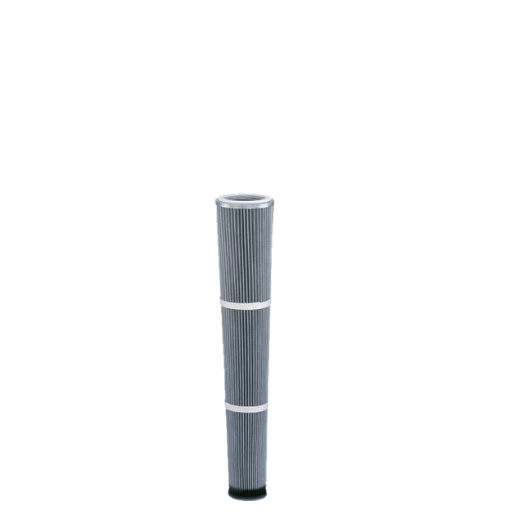

Filtration Group dust filter element 852 904 TI 07/1-1,6 V4A

Conical dust filter element

Diameter:328 mm

Filter material: Polyester fleece with PTFE membrane, electrically dissipative

Filter area: 1.6 m²

305.59 € 305.59000000000003 EUR 305.59 € VAT Included

321.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78333320

Category :

Dedusting Filter Media

Weight :

1.05 kg

Filtration Group (formerly MAHLE) Dust filter element 852 904 TI 07/1-1.6 V4A / 78333320

Lower filter surface load due to reduced inflow velocity

Even cleaning down to the lower area

3 % more free area - thus improved dust sedimentation

Longer element service life thanks to improved cleaning line

Notes:
- Deviations in the volume flow values are possible due to the type of dust and gas composition.
- The operating temperature depends on the medium/material.

Outer diameter (mm)	120
Electrostatic discharge capability	yes
Element fastening	Rd 72 x 5
Element shape	Conical
Element type	852 Series
End disc material	Sheet metal end plate
Wrinkle stabilisation	Banderole
Filter material	TI 07/1
Height (mm)	983
Inner diameter (mm)	68
Installation	Raw gas side
Medium	Air
Seal material	Felt (polyester)

FG-Datenblatt_fg-120nk-de

Download

Variants / Alternatives

Product		Price

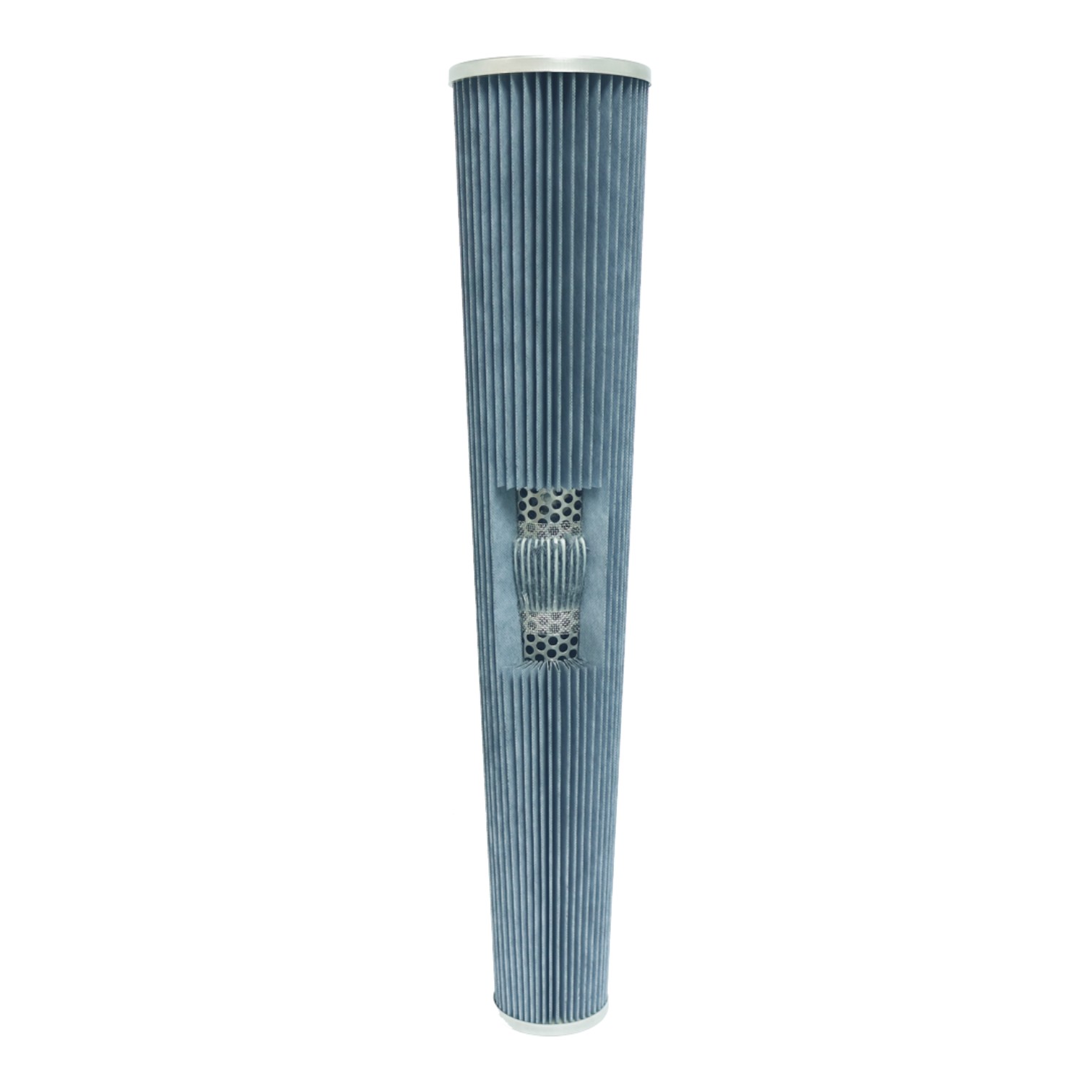

	[72502643] Filtration Group dust filter element 852 904 TI 07/1-1,6 V4A FOOD IFIX Successor to: Filtration Group dust filter element 852 904 TI 07/1-1.6 V4A \| 78333320 Conical dust filter element Diameter:120 mm Filter material: Polyester fleece with PTFE membrane, electrically dissipative Filter area: 1.6 m²	305.59 €	Add to cart
