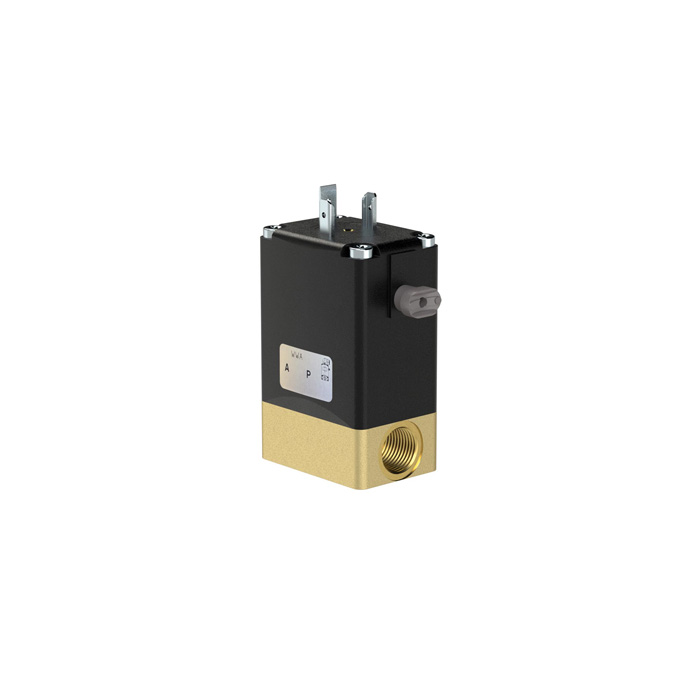

RIEGLER 2/2 We-MV, NO, MS, G 14, DN 3, PN 0-10, NBR, direktg. 110V AC
Typennummer: MVB.14.MS.110.N.BD.3
Das Familienunternehmen RIEGLER & Co. KG in Bad Urach steht seit über 80 Jahren für innovative, qualitativ hochwertige Lösungen im Bereich Druckluft- und Pneumatikkomponenten
2/2-Wege-Magnetv. mediengetr., NO, MS, G 1/4, DN 3,0, PN 0-10, NBR, direkt. 110V AC, Med.-Temp 0 bis 80, Umgeb.-Temp 0 bis 55
| Gehäuse | Messing |
| Dichtmaterial | NBR |
| Schutzart | IP 65 (bei Verwendung der Gerätesteckdose) |
| Betriebsdruck min. | 0 bar |
| Betriebsdruck max. | 10 bar |
| Mediumstemperatur min. | 0 °C |
| Mediumstemperatur max. | 80 °C |
| Umgebungstemperatur min. | 0 °C |
| Umgebungstemperatur max. | 55 °C |
| Innenteile | Messing |
| Ventilsitz | Messing |
| Gewinde | G 1/4 |
| DN | 3 |
| Funktion | stromlos offen (NO) |
| A (mm) | 71 |
| B (mm) | 46 |
| C (mm) | 18 |
| REACH SVHC1 Stoff Name | Blei |
| CAS-Nr. SVHC 1 | 7439-92-1 |
| RoHS Werkstoff-Hinweis | RoHS konform |
| RoHS Richtlinie | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Artikel der Richtlinie | Artikel 4, Absatz 1, Anhang 3 |
| Anteil SVHC Stoff in % bei RoHS | 0.04 |
| Ausnahme | 6c |
| REACH Info | enthält SVHC Stoff |
| SCIP Meldungsnummer Lieferant | keine SCIP Nr. vorhanden |
| Anteil SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| SCIP Meldungsnummer RIEGLER | keine SCIP Nr. vorhanden |
| Anteil SVHC Stoff in SCIP | >= 0,1 % in w/w |
| Materialkennung | CW614N |
| Klassenname | MAX |
| Stand Material Compliance | 44797 |
| Elektrischer Anschluss | Steckerfahnen nach DIN EN 175301-803 |
| Spannung | 110V AC |
