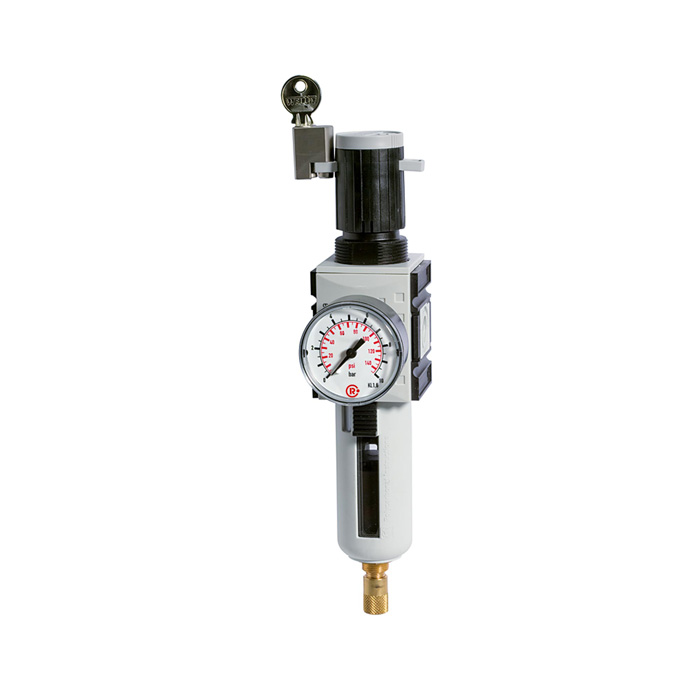

RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 1, 0,5-10 bar, VA
Typennummer: FU 6121-10
RIEGLER & Co. KG in Bad Urach ist ein angesehenes Unternehmen, das für seine innovativen Ansätze, erstklassige Produktqualität und engagierte Kundenbetreuung geschätzt wird. Seit mehr als 80 Jahren hat sich dieses Familienunternehmen zu einem führenden Anbieter von Komponenten für Druckluft- und Pneumatik sowie individuellen Systemlösungen entwickelt.
Filter regulator »FUTURA« with PC container, Protective cage, Pressure gauge, 5 µm, Size 4, G 1, Control range 0.5-10 bar, Fully
| Eingangsdruck min. | 1.5 bar |
| Eingangsdruck max. | 16 bar |
| Temperaturbereich min. | -10 °C |
| Temperaturbereich max. | 50 °C |
| Medium | Druckluft, neutrale Gase |
| Gehäuse | PA66 GF60 |
| Anschlussgewinde | Werkstoff Zink-Druckguss |
| Dichtmaterial | NBR |
| Membrane | NBR |
| Eigenluftverbrauch max. | 1,5 l/min (abhängig vom Sekundärdruck) |
| Durchflusswertmessung | bei P1 = 10 bar, P2 = 6,3 bar und Druckabfall Δp = 1 bar |
| Serie | FUTURA |
| Behälter | Polycarbonatbehälter mit Schutzkorb |
| Filterelement | Cellpor (PE) |
| Filterfeinheit | 5 µm |
| Gewinde | G 1 |
| Regelbereich min. | 0.5 bar |
| Regelbereich max. | 10 bar |
| Kondensatablass | vollautomatisch |
| Manometeranzeige min. | 0 bar |
| Manometeranzeige max. | 16 bar |
| BG | 4 |
| A (mm) | 85 |
| B (mm) | 343 |
| C (mm) | 137 |
| REACH SVHC1 Stoff Name | Blei |
| CAS-Nr. SVHC 1 | 7439-92-1 |
| RoHS Werkstoff-Hinweis | RoHS konform |
| RoHS Richtlinie | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Artikel der Richtlinie | Artikel 4, Absatz 1, Anhang 3 |
| Anteil SVHC Stoff in % bei RoHS | 0.04 |
| Ausnahme | 6a-I. 6b-I, 6c |
| REACH Info | enthält SVHC Stoff |
| Anteil SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| SCIP Meldungsnummer RIEGLER | keine SCIP Nr. vorhanden |
| Anteil SVHC Stoff in SCIP | >= 0,1 % in w/w |
| Materialkennung | CW614N |
| Eigenluftverbrauch | Ja |
| Klassenname | MAX |
| Stand Material Compliance | 45159 |
| Durchfluss_1 | 13000 l/min |
| SCIP Meldungsnummer Lieferant | a1c358e0-4f9a-4131-b9a7-bac815e07394 |
Varianten / Alternativen
| Produkt | Einzelpreis | ||
|---|---|---|---|
![[151764] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 1/4, 0,1-1 bar, HA](/web/image/product.template/122202/image_128/%5B151764%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%201-4%2C%200%2C1-1%20bar%2C%20HA?unique=90bc1cf)
|
Typennummer: FU 811-1 |
79,88 € | |
![[151765] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 1/4, 0,1-2 bar, HA](/web/image/product.template/122264/image_128/%5B151765%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%201-4%2C%200%2C1-2%20bar%2C%20HA?unique=483e2e4)
|
Typennummer: FU 811-2 |
79,88 € | |
![[151785] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 1/4, 0,1-2 bar, VA](/web/image/product.template/122301/image_128/%5B151785%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%201-4%2C%200%2C1-2%20bar%2C%20VA?unique=cecd528)
|
Typennummer: FU 821-2 |
136,58 € | |
![[151767] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 1/4, 0,5-10 bar, HA](/web/image/product.template/122268/image_128/%5B151767%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%201-4%2C%200%2C5-10%20bar%2C%20HA?unique=8227159)
|
Typennummer: FU 811-10 |
79,88 € | |
![[151787] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 1/4, 0,5-10 bar, VA](/web/image/product.template/122304/image_128/%5B151787%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%201-4%2C%200%2C5-10%20bar%2C%20VA?unique=19b3a2f)
|
Typennummer: FU 821-10 |
136,58 € | |
![[151768] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 1/4, 0,5-16 bar, HA](/web/image/product.template/122269/image_128/%5B151768%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%201-4%2C%200%2C5-16%20bar%2C%20HA?unique=3d03709)
|
Typennummer: FU 811-16 |
79,88 € | |
![[100118] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 1/4, 0,5-8 bar, HA](/web/image/product.template/122267/image_128/%5B100118%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%201-4%2C%200%2C5-8%20bar%2C%20HA?unique=29f6c90)
|
Typennummer: FU 811 |
81,41 € | |
![[100124] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 1/4, 0,5-8 bar, VA](/web/image/product.template/122303/image_128/%5B100124%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%201-4%2C%200%2C5-8%20bar%2C%20VA?unique=04a552a)
|
Typennummer: FU 821 |
139,17 € | |
![[151771] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 3/8, 0,2-4 bar, HA](/web/image/product.template/122272/image_128/%5B151771%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%203-8%2C%200%2C2-4%20bar%2C%20HA?unique=0c847a3)
|
Typennummer: FU 812-4 |
79,88 € | |
![[151791] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 3/8, 0,2-4 bar, VA](/web/image/product.template/122308/image_128/%5B151791%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%203-8%2C%200%2C2-4%20bar%2C%20VA?unique=7193230)
|
Typennummer: FU 822-4 |
136,58 € | |
![[151772] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 3/8, 0,5-10 bar, HA](/web/image/product.template/122274/image_128/%5B151772%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%203-8%2C%200%2C5-10%20bar%2C%20HA?unique=e1a8b73)
|
Typennummer: FU 812-10 |
79,88 € | |
![[151792] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 3/8, 0,5-10 bar, VA](/web/image/product.template/122310/image_128/%5B151792%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%203-8%2C%200%2C5-10%20bar%2C%20VA?unique=52fd217)
|
Typennummer: FU 822-10 |
130,07 € | |
![[151773] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 3/8, 0,5-16 bar, HA](/web/image/product.template/122275/image_128/%5B151773%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%203-8%2C%200%2C5-16%20bar%2C%20HA?unique=cd024b7)
|
Typennummer: FU 812-16 |
79,88 € | |
![[151793] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 3/8, 0,5-16 bar, VA](/web/image/product.template/122311/image_128/%5B151793%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%203-8%2C%200%2C5-16%20bar%2C%20VA?unique=651159c)
|
Typennummer: FU 822-16 |
136,58 € | |
![[100119] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 3/8, 0,5-8 bar, HA](/web/image/product.template/122273/image_128/%5B100119%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%203-8%2C%200%2C5-8%20bar%2C%20HA?unique=39e66fb)
|
Typennummer: FU 812 |
81,41 € | |
![[100125] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 1, G 3/8, 0,5-8 bar, VA](/web/image/product.template/122309/image_128/%5B100125%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%201%2C%20G%203-8%2C%200%2C5-8%20bar%2C%20VA?unique=157ca96)
|
Typennummer: FU 822 |
139,17 € | |
![[139501] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,1-1 bar, HA](/web/image/product.template/122282/image_128/%5B139501%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C1-1%20bar%2C%20HA?unique=426514f)
|
Typennummer: FU 814-1 |
136,87 € | |
![[151799] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,1-1 bar, VA](/web/image/product.template/122318/image_128/%5B151799%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C1-1%20bar%2C%20VA?unique=b825045)
|
Typennummer: FU 824-1 |
193,89 € | |
![[139502] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,1-2 bar, HA](/web/image/product.template/122283/image_128/%5B139502%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C1-2%20bar%2C%20HA?unique=74d2277)
|
Typennummer: FU 814-2 |
136,87 € | |
![[151800] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,1-2 bar, VA](/web/image/product.template/122319/image_128/%5B151800%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C1-2%20bar%2C%20VA?unique=740e0d6)
|
Typennummer: FU 824-2 |
193,89 € | |
![[139504] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,5-10 bar, HA](/web/image/product.template/122286/image_128/%5B139504%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C5-10%20bar%2C%20HA?unique=2e68f38)
|
Typennummer: FU 814-10 |
136,87 € | |
![[151802] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,5-10 bar, VA](/web/image/product.template/122322/image_128/%5B151802%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C5-10%20bar%2C%20VA?unique=ef5300b)
|
Typennummer: FU 824-10 |
193,89 € | |
![[139505] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,5-16 bar, HA](/web/image/product.template/122287/image_128/%5B139505%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C5-16%20bar%2C%20HA?unique=09c8f44)
|
Typennummer: FU 814-16 |
136,87 € | |
![[151803] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,5-16 bar, VA](/web/image/product.template/122323/image_128/%5B151803%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C5-16%20bar%2C%20VA?unique=27467c2)
|
Typennummer: FU 824-16 |
193,89 € | |
![[100121] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,5-8 bar, HA](/web/image/product.template/122285/image_128/%5B100121%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C5-8%20bar%2C%20HA?unique=f83e606)
|
Typennummer: FU 814 |
139,49 € | |
![[100127] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 1/2, 0,5-8 bar, VA](/web/image/product.template/122321/image_128/%5B100127%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%201-2%2C%200%2C5-8%20bar%2C%20VA?unique=72c6b1d)
|
Typennummer: FU 824 |
197,58 € | |
![[139496] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 3/8, 0,1-1 bar, HA](/web/image/product.template/122276/image_128/%5B139496%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%203-8%2C%200%2C1-1%20bar%2C%20HA?unique=432ec67)
|
Typennummer: FU 813-1 |
136,87 € | |
![[151794] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 3/8, 0,1-1 bar, VA](/web/image/product.template/122312/image_128/%5B151794%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%203-8%2C%200%2C1-1%20bar%2C%20VA?unique=400b2e5)
|
Typennummer: FU 823-1 |
193,89 € | |
![[139499] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 3/8, 0,5-10 bar, HA](/web/image/product.template/122280/image_128/%5B139499%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%203-8%2C%200%2C5-10%20bar%2C%20HA?unique=da398f3)
|
Typennummer: FU 813-10 |
136,87 € | |
![[151797] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 3/8, 0,5-10 bar, VA](/web/image/product.template/122316/image_128/%5B151797%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%203-8%2C%200%2C5-10%20bar%2C%20VA?unique=b6c7e3d)
|
Typennummer: FU 823-10 |
193,89 € | |
![[139500] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 3/8, 0,5-16 bar, HA](/web/image/product.template/122281/image_128/%5B139500%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%203-8%2C%200%2C5-16%20bar%2C%20HA?unique=67b34c9)
|
Typennummer: FU 813-16 |
136,87 € | |
![[151798] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 3/8, 0,5-16 bar, VA](/web/image/product.template/122317/image_128/%5B151798%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%203-8%2C%200%2C5-16%20bar%2C%20VA?unique=e30c9f5)
|
Typennummer: FU 823-16 |
193,89 € | |
![[100120] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 3/8, 0,5-8 bar, HA](/web/image/product.template/122279/image_128/%5B100120%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%203-8%2C%200%2C5-8%20bar%2C%20HA?unique=90fd405)
|
Typennummer: FU 813 |
139,49 € | |
![[100126] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 2, G 3/8, 0,5-8 bar, VA](/web/image/product.template/122315/image_128/%5B100126%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%202%2C%20G%203-8%2C%200%2C5-8%20bar%2C%20VA?unique=de7f9a6)
|
Typennummer: FU 823 |
197,58 € | |
![[151781] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 1, 0,2-4 bar, HA](/web/image/product.template/122296/image_128/%5B151781%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%201%2C%200%2C2-4%20bar%2C%20HA?unique=543af4a)
|
Typennummer: FU 6111-4 |
314,37 € | |
![[151811] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 1, 0,2-4 bar, VA](/web/image/product.template/122332/image_128/%5B151811%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%201%2C%200%2C2-4%20bar%2C%20VA?unique=5f68878)
|
Typennummer: FU 6121-4 |
377,37 € | |
![[151813] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 1, 0,5-16 bar, VA](/web/image/product.template/122335/image_128/%5B151813%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%201%2C%200%2C5-16%20bar%2C%20VA?unique=49f9021)
|
Typennummer: FU 6121-16 |
377,37 € | |
![[100123] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 1, 0,5-8 bar, HA](/web/image/product.template/122297/image_128/%5B100123%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%201%2C%200%2C5-8%20bar%2C%20HA?unique=ad7c3f2)
|
Typennummer: FU 6111 |
320,37 € | |
![[100129] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 1, 0,5-8 bar, VA](/web/image/product.template/122333/image_128/%5B100129%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%201%2C%200%2C5-8%20bar%2C%20VA?unique=1d622e3)
|
Typennummer: FU 6121 |
384,57 € | |
![[151775] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 3/4, 0,1-2 bar, HA](/web/image/product.template/122289/image_128/%5B151775%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%203-4%2C%200%2C1-2%20bar%2C%20HA?unique=5375451)
|
Typennummer: FU 6110-2 |
314,37 € | |
![[151778] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 3/4, 0,5-16 bar, HA](/web/image/product.template/122293/image_128/%5B151778%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%203-4%2C%200%2C5-16%20bar%2C%20HA?unique=1196d89)
|
Typennummer: FU 6110-16 |
314,37 € | |
![[100122] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 3/4, 0,5-8 bar, HA](/web/image/product.template/122291/image_128/%5B100122%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%203-4%2C%200%2C5-8%20bar%2C%20HA?unique=c42ee99)
|
Typennummer: FU 6110 |
320,37 € | |
![[100128] RIEGLER Filterregler »FUTURA«, PC, SK, Mano, BG 4, G 3/4, 0,5-8 bar, VA](/web/image/product.template/122327/image_128/%5B100128%5D%20RIEGLER%20Filterregler%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20SK%2C%20Mano%2C%20BG%204%2C%20G%203-4%2C%200%2C5-8%20bar%2C%20VA?unique=7b3266d)
|
Typennummer: FU 6120 |
384,57 € | |
Zubehör und passende Erweiterungen
| Produkt | Einzelpreis | ||
|---|---|---|---|
![[100037] RIEGLER Steckschloss für »FUTURA«, aus Messing vernickelt](/web/image/product.template/118199/image_128/%5B100037%5D%20RIEGLER%20Steckschloss%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20aus%20Messing%20vernickelt?unique=e6e931c)
|
Typennummer: SS 32 |
73,26 € | |
![[100048] RIEGLER Befestigungswinkel inkl. 2 Schrauben, für »FUTURA«, BG 4](/web/image/product.template/118210/image_128/%5B100048%5D%20RIEGLER%20Befestigungswinkel%20inkl.%202%20Schrauben%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20BG%204?unique=c80aa80)
|
Typennummer: H 854 |
21,59 € | |
![[100049] RIEGLER Wandkonsole inkl. 2 Schrauben und O-Ring, für »FUTURA«, BG 4](/web/image/product.template/118211/image_128/%5B100049%5D%20RIEGLER%20Wandkonsole%20inkl.%202%20Schrauben%20und%20O-Ring%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20BG%204?unique=97db1fa)
|
Typennummer: WK 103 |
10,28 € | |
![[100050] RIEGLER Verblockungsset inkl. 2 Schrauben und O-Ring, für »FUTURA«, BG 4](/web/image/product.template/118212/image_128/%5B100050%5D%20RIEGLER%20Verblockungsset%20inkl.%202%20Schrauben%20und%20O-Ring%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20BG%204?unique=a26c95c)
|
Typennummer: KP 300 |
7,32 € | |
![[100140] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, »FUTURA«, BG 4, Ablass: HA](/web/image/product.template/123204/image_128/%5B100140%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20%C2%BBFUTURA%C2%AB%2C%20BG%204%2C%20Ablass:%20HA?unique=bc2b740)
|
Typennummer: BSF 34 |
20,11 € | |
![[100141] RIEGLER Metallbehälter inkl. Sichtrohr, für »FUTURA«, BG 4, Ablass: HA](/web/image/product.template/123205/image_128/%5B100141%5D%20RIEGLER%20Metallbeh%C3%A4lter%20inkl.%20Sichtrohr%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20BG%204%2C%20Ablass:%20HA?unique=ede1f7d)
|
Typennummer: MF 34 |
73,08 € | |

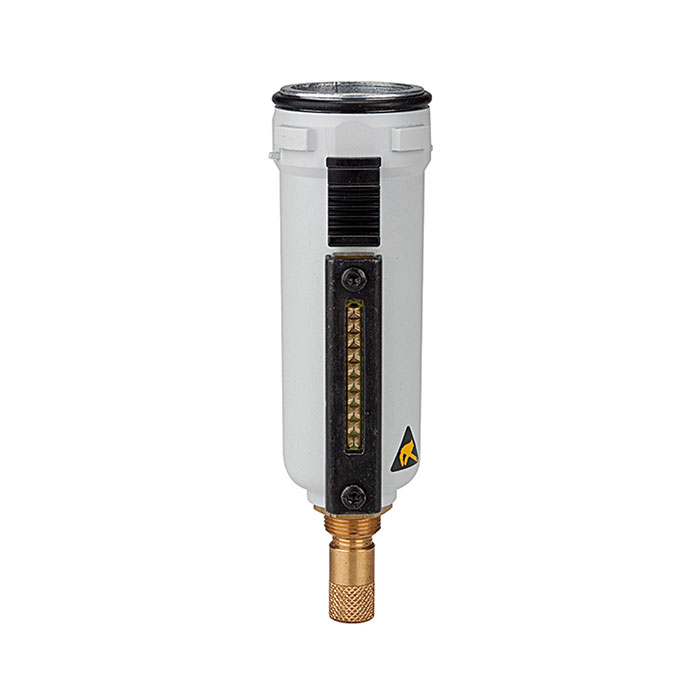

![[123967] RIEGLER Metallbehälter inkl. Sichtrohr, »FUTURA«, BG 4, Ablass: VA (NC)](/web/image/product.template/202406/image_128/%5B123967%5D%20RIEGLER%20Metallbeh%C3%A4lter%20inkl.%20Sichtrohr%2C%20%C2%BBFUTURA%C2%AB%2C%20BG%204%2C%20Ablass:%20VA%20%28NC%29?unique=b48bf1f)
|
Typennummer: MF 34-NC-A |
88,06 € | |

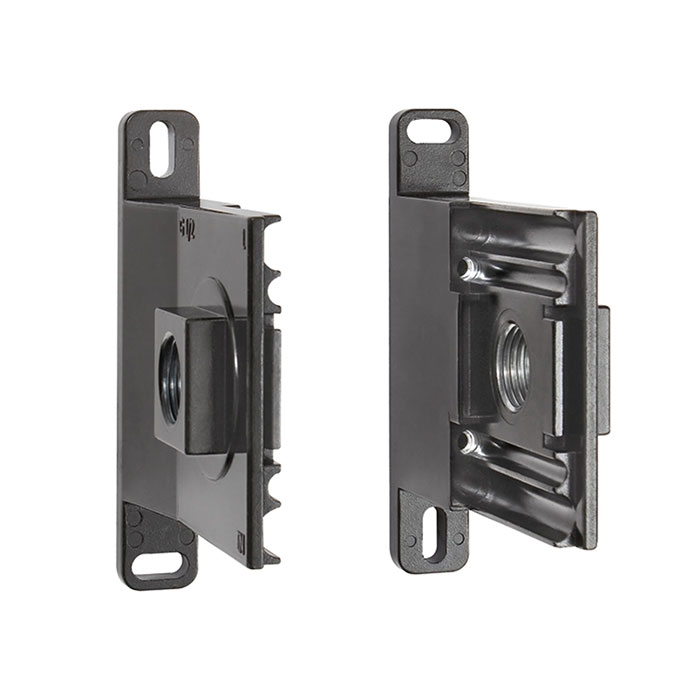

![[135853] RIEGLER Wandkonsole mit Anschlussgewinde G 3/4, für »FUTURA«, BG 4](/web/image/product.template/206210/image_128/%5B135853%5D%20RIEGLER%20Wandkonsole%20mit%20Anschlussgewinde%20G%203-4%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20BG%204?unique=1c8e668)
|
Typennummer: WK 104-34 |
64,47 € | |
![[135854] RIEGLER Wandkonsole mit Anschlussgewinde G 1, für »FUTURA«, BG 4](/web/image/product.template/206211/image_128/%5B135854%5D%20RIEGLER%20Wandkonsole%20mit%20Anschlussgewinde%20G%201%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20BG%204?unique=bbe8c20)
|
Typennummer: WK 104-1 |
64,47 € | |
![[152961] RIEGLER Automatisches Ablassventil, drucklos geschlossen (NC)](/web/image/product.template/212486/image_128/%5B152961%5D%20RIEGLER%20Automatisches%20Ablassventil%2C%20drucklos%20geschlossen%20%28NC%29?unique=22177f7)
|
Typennummer: 655.6.901 |
64,69 € | |

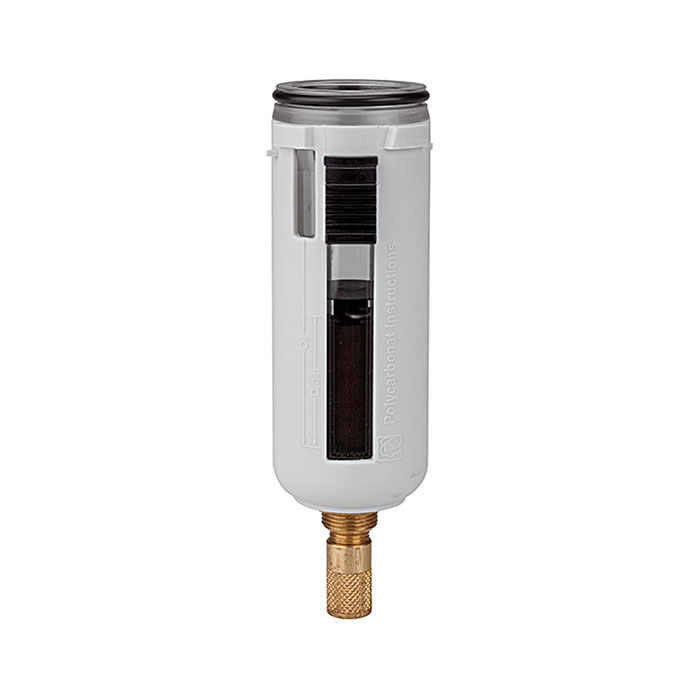

![[156476] RIEGLER PC-Behälter inkl. Schutzkorb, für »FUTURA«, BG 4, Ablass: VA (NC)](/web/image/product.template/213291/image_128/%5B156476%5D%20RIEGLER%20PC-Beh%C3%A4lter%20inkl.%20Schutzkorb%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20BG%204%2C%20Ablass:%20VA%20%28NC%29?unique=58b91c9)
|
Typennummer: BSF 34-NC-A |
59,17 € | |
Instandhaltung: Wartung, Verschleiß und Ersatzteile
| Produkt | Einzelpreis | ||
|---|---|---|---|

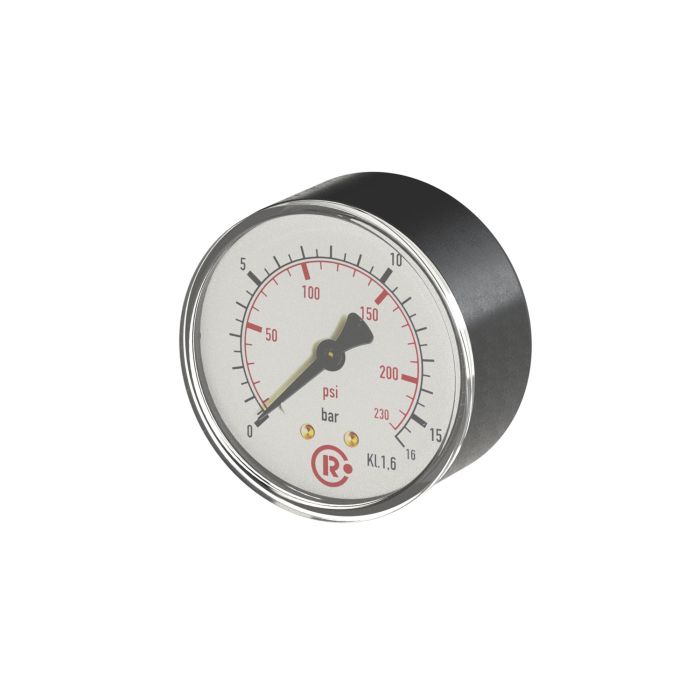

![[101398] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 16,0 bar/230 psi, Ø63](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2016%2C0%20bar-230%20psi%2C%20%C3%9863?unique=ae20dc8)
|
Typennummer: 218-KD |
6,30 € | |
![[100362] RIEGLER Automatisches Ablassventil für »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatisches%20Ablassventil%20f%C3%BCr%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=fdaeaef)
|
Typennummer: 655.6.900 |
36,96 € | |
![[100051] RIEGLER Dichtungssatz Druckregler, für »FUTURA«, BG 4, G 3/4 und G 1](/web/image/product.template/118213/image_128/%5B100051%5D%20RIEGLER%20Dichtungssatz%20Druckregler%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%2C%20BG%204%2C%20G%203-4%20und%20G%201?unique=3adb5ff)
|
Typennummer: 22.71110.4 |
33,13 € | |
![[100144] RIEGLER Filterelement 5 µm, Cellpor, für »FUTURA« und »multifix«, BG 4](/web/image/product.template/123337/image_128/%5B100144%5D%20RIEGLER%20Filterelement%205%20%C2%B5m%2C%20Cellpor%2C%20f%C3%BCr%20%C2%BBFUTURA%C2%AB%20und%20%C2%BBmultifix%C2%AB%2C%20BG%204?unique=35a1198)
|
Typennummer: 6141.6.905 |
41,25 € | |
