Riegler Pressure regulator »FUTURA«, Size 2, G 1/2, 0.2 - 4 bar
Type number: FU 7274
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator made of PA66 GF60, for compressed air preparation, 0.2 bar - Type FU 7274
The RIEGLER pressure regulator, through. Pressure regul. "FUTURA", BG 2, G 1/2, 0.2-4 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.2 bar to 4 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for compressed air, neutral gases. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1/2 |
| Control range min. | 0.2 bar |
| Control range max. | 4 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 6 bar |
| BG | 2 |
| A | 63 mm |
| B | 150 mm |
| C | 110 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 5200 l/min |
| SCIP message number Supplier | 32c49020-2501-4057-98f7-8a9ac79c605a |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=f92ff32)
|
Type number: SS 32 |
43.95 € | |
![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=16e8c98)
|
Type number: H 852 |
10.22 € | |
![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=86c1375)
|
Type number: WK 102 |
5.13 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=dc343f6)
|
Type number: KP 200 |
2.58 € | |
![[100046] Riegler Control panel nut M42x1.5, for »FUTURA«, Size 2, G 3/8 and G 1/2](/web/image/product.template/118208/image_128/%5B100046%5D%20Riegler%20Control%20panel%20nut%20M42x1.5%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%20and%20G%201-2?unique=cf932d0)
|
Type number: FU 33-55 |
1.77 € | |
![[100331] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 2](/web/image/product.template/139765/image_128/%5B100331%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=8e3de4c)
|
Type number: WK 102-38 |
42.36 € | |
![[100332] RIEGLER Wall console with connection thread G 1/2, for »FUTURA«, Size 2](/web/image/product.template/139766/image_128/%5B100332%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-2%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=71c0121)
|
Type number: WK 102-12 |
42.36 € | |
![[100333] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 2](/web/image/product.template/139767/image_128/%5B100333%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=ed3feda)
|
Type number: WK 102-34 |
42.36 € | |
![[152946] RIEGLER Mounting bracket with control panel nut M42x1.5, »FUTURA«, Size 2](/web/image/product.template/212485/image_128/%5B152946%5D%20RIEGLER%20Mounting%20bracket%20with%20control%20panel%20nut%20M42x1.5%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=0d29142)
|
Typennummer: H 853 |
10.47 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

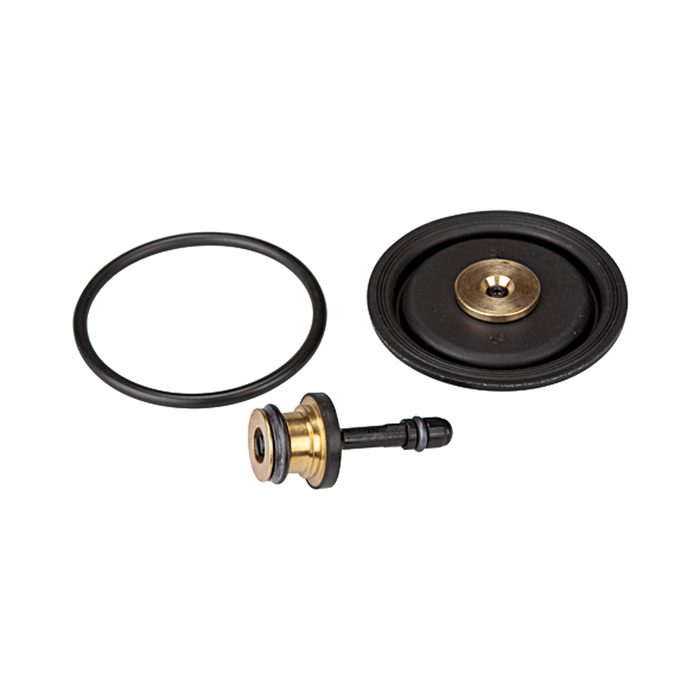

![[100047] Riegler Wear part set for »FUTURA«, size 2, G 3/8 and G 1/2](/web/image/product.template/118209/image_128/%5B100047%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%202%2C%20G%203-8%20and%20G%201-2?unique=4302868)
|
Type number: 22.7180.4 |
12.57 € | |
