RIEGLER Filter »multifix-mini« with metal container, 5 µm, Size 0, G 1/4
Type number: F 06 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter "multifix-mini" with metal container, 5 µm, BG 0, G 1/4, PE max. 20 bar, ambient media temp. max. 60 °C, condensate drain: HA
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Container | Metal container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 1000 l/min |
| Condensate drain | semi-automatic |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 111.6 mm |
| C | 12.3 mm |
| D | 99.3 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

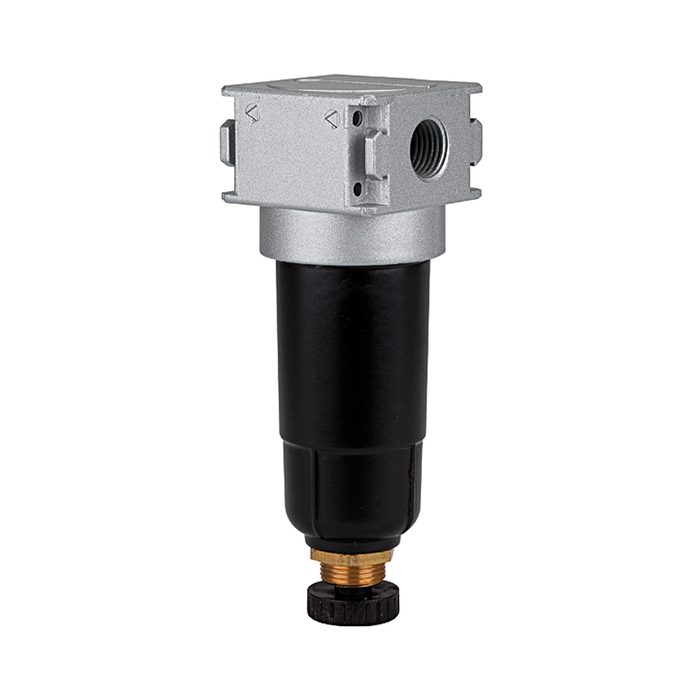

![[100365] RIEGLER Filter »multifix-mini« with metal container, 5 µm, Size 0, G 1/8](/web/image/product.template/139799/image_128/%5B100365%5D%20RIEGLER%20Filter%20%C2%BBmultifix-mini%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%200%2C%20G%201-8?unique=e0495c5)
|
Type number: F 05 M |
27.79 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100346] RIEGLER Coupling package for blocking several components](/web/image/product.template/139780/image_128/%5B100346%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components?unique=682274d)
|
Type number: KP 05 |
0.93 € | |
![[100357] RIEGLER Polycarbonate container, incl. NBR O-ring 30x2](/web/image/product.template/139791/image_128/%5B100357%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=e31b337)
|
Type number: 640/1-HA |
10.21 € | |
![[100359] RIEGLER Metal container, incl. NBR O-ring, with semi autom. bleeder valve](/web/image/product.template/139793/image_128/%5B100359%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2C%20with%20semi%20autom.%20bleeder%20valve?unique=53ad0b6)
|
Type number: 641/11-HA |
21.96 € | |
![[100360] RIEGLER Metal container, incl. O-ring, with fully autom. bleeder valve](/web/image/product.template/139794/image_128/%5B100360%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20with%20fully%20autom.%20bleeder%20valve?unique=4e45042)
|
Type number: 640/11-A |
55.26 € | |
![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=7d09600)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=7114555)
|
Type number: 655.6.900 |
36.96 € | |
![[100367] RIEGLER Mounting set for »multifix-mini«](/web/image/product.template/139801/image_128/%5B100367%5D%20RIEGLER%20Mounting%20set%20for%20%C2%BBmultifix-mini%C2%AB?unique=5048ac1)
|
Type number: ZW 05 |
4.03 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100358] RIEGLER Metal container, incl. NBR O-ring 30x2](/web/image/product.template/139792/image_128/%5B100358%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=847a53e)
|
Type number: 640/11 |
17.06 € | |
