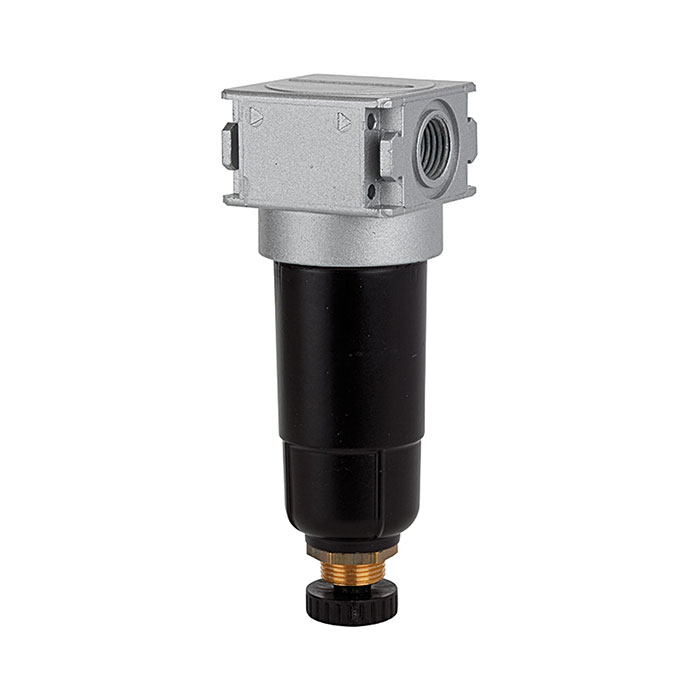

RIEGLER Pre-filter »multifix-mini«, Metal container, 0.3 µm, Size 0 G 1/4
Type number: FV 06 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Vorfilter »multifix-mini« mit Metallbehälter, 0,3 µm, BG 0, G 1/4, PE max. 16 bar, Med.-Umgeb.temp. max. 60 °C, Kondensatablass HA
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | multifix-mini |
| Container | Metal container |
| Filter element | Paper POM |
| Filter fineness | 0.3 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/4 |
| Flow rate | 160 l/min |
| Condensate drain | semi-automatic |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 138.1 mm |
| C | 12.3 mm |
| D | 125.8 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

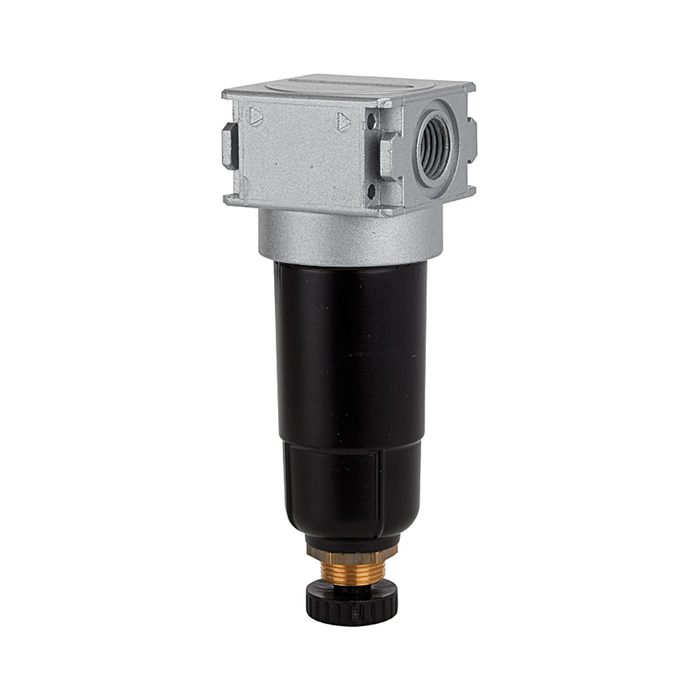

![[100370] RIEGLER Pre-filter »multifix-mini«, Metal container, 0.3 µm, Size 0 G 1/8](/web/image/product.template/139804/image_128/%5B100370%5D%20RIEGLER%20Pre-filter%20%C2%BBmultifix-mini%C2%AB%2C%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%200%20G%201-8?unique=414c18c)
|
Type number: FV 05 M |
66.20 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100346] RIEGLER Coupling package for blocking several components](/web/image/product.template/139780/image_128/%5B100346%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components?unique=cb311b4)
|
Type number: KP 05 |
0.92 € | |
![[100367] RIEGLER Mounting set for »multifix-mini«](/web/image/product.template/139801/image_128/%5B100367%5D%20RIEGLER%20Mounting%20set%20for%20%C2%BBmultifix-mini%C2%AB?unique=2a64d48)
|
Type number: ZW 05 |
4.03 € | |
![[100500] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139935/image_128/%5B100500%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=7ac1a44)
|
Type number: KS 11 F-HA |
13.15 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100359] RIEGLER Metal container, incl. NBR O-ring, with semi autom. bleeder valve](/web/image/product.template/139793/image_128/%5B100359%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2C%20with%20semi%20autom.%20bleeder%20valve?unique=a63fef2)
|
Type number: 641/11-HA |
21.74 € | |
![[100380] RIEGLER Pre-filter element 0.3 µm, Paper-POM, incl. O-ring, for G 1/4](/web/image/product.template/139814/image_128/%5B100380%5D%20RIEGLER%20Pre-filter%20element%200.3%20%C2%B5m%2C%20Paper-POM%2C%20incl.%20O-ring%2C%20for%20G%201-4?unique=41b72a0)
|
Type number: V 23/60 |
49.40 € | |
