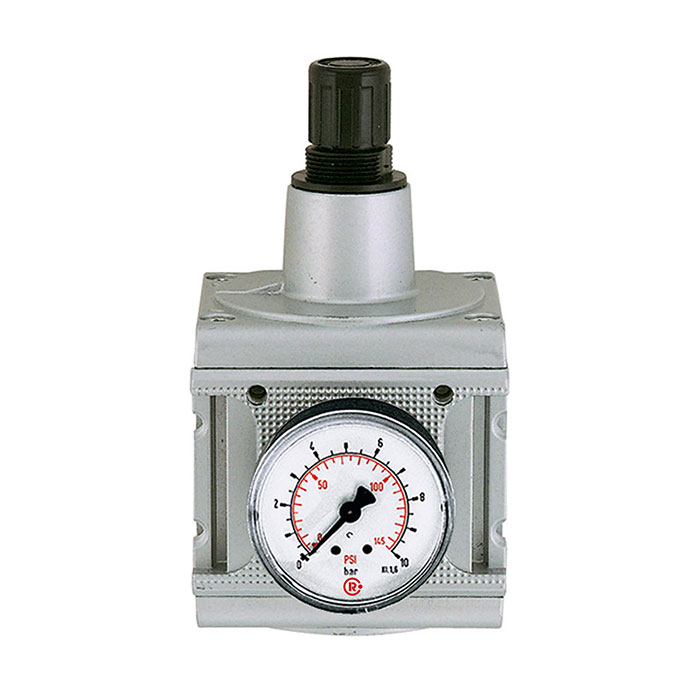

RIEGLER Pressure regulator »multifix«, Size 5, G 1, 0.5 - 16 bar
Type number: R 55 - 16
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator "multifix", incl. pressure gauge, BG 5, G 1, PE max. 16 bar, medium ambient temp. max. 60 °C, control range 0.5 - 16 bar
| Inlet pressure max. | 16 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Intrinsic air consumption max. | 0.5 l/min (depending on secondary pressure) |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1 |
| Flow rate | 17500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| DN | 25 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 25 bar |
| BG | 5 |
| A | 100 mm |
| B | 179.5 mm |
| C | 128 mm |
| D | 51.5 mm |
| Intrinsic air consumption | Yes |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100417] RIEGLER Pressure regulator »multifix«, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/139851/image_128/%5B100417%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=113424f)
|
Type number: R 11 - 10 |
35.94 € | |
![[100421] RIEGLER Pressure regulator »multifix«, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/139855/image_128/%5B100421%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=02da902)
|
Type number: R 12 - 10 |
35.94 € | |
![[100425] RIEGLER Pressure regulator »multifix«, Size 3, G 1/2, 0.5 - 10 bar](/web/image/product.template/139859/image_128/%5B100425%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=925631a)
|
Type number: R 33 - 10 |
53.70 € | |
![[100415] RIEGLER Pressure regulator »multifix«, Size 1, G 1/4, 0.1 - 3 bar](/web/image/product.template/139849/image_128/%5B100415%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.1%20-%203%20bar?unique=1d49301)
|
Type number: R 11 - 3 |
35.94 € | |
![[100416] RIEGLER Pressure regulator »multifix«, Size 1, G 1/4, 0.2 - 6 bar](/web/image/product.template/139850/image_128/%5B100416%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.2%20-%206%20bar?unique=72298dc)
|
Type number: R 11 - 6 |
35.94 € | |
![[100418] RIEGLER Pressure regulator »multifix«, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/139852/image_128/%5B100418%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=1b0e587)
|
Type number: R 11 - 16 |
35.94 € | |
![[100419] RIEGLER Pressure regulator »multifix«, Size 1, G 3/8, 0.1 - 3 bar](/web/image/product.template/139853/image_128/%5B100419%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.1%20-%203%20bar?unique=c4f751d)
|
Type number: R 12 - 3 |
35.94 € | |
![[100420] RIEGLER Pressure regulator »multifix«, Size 1, G 3/8, 0.2 - 6 bar](/web/image/product.template/139854/image_128/%5B100420%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.2%20-%206%20bar?unique=47024cf)
|
Type number: R 12 - 6 |
35.94 € | |
![[100422] RIEGLER Pressure regulator »multifix«, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/139856/image_128/%5B100422%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=3016efc)
|
Type number: R 12 - 16 |
35.94 € | |
![[100423] RIEGLER Pressure regulator »multifix«, Size 3, G 1/2, 0.1 - 3 bar](/web/image/product.template/139857/image_128/%5B100423%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%200.1%20-%203%20bar?unique=13bbfcd)
|
Type number: R 33 - 3 |
53.70 € | |
![[100424] RIEGLER Pressure regulator »multifix«, Size 3, G 1/2, 0.2 - 6 bar](/web/image/product.template/139858/image_128/%5B100424%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%200.2%20-%206%20bar?unique=eb93942)
|
Type number: R 33 - 6 |
53.70 € | |
![[100426] RIEGLER Pressure regulator »multifix«, Size 3, G 1/2, 0.5 - 16 bar](/web/image/product.template/139860/image_128/%5B100426%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=db07955)
|
Type number: R 33 - 16 |
53.70 € | |
![[100427] RIEGLER Pressure regulator »multifix«, Size 3, G 3/4, 0.1 - 3 bar](/web/image/product.template/139861/image_128/%5B100427%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%203-4%2C%200.1%20-%203%20bar?unique=6e36f3f)
|
Type number: R 34 - 3 |
53.70 € | |
![[100428] RIEGLER Pressure regulator »multifix«, Size 3, G 3/4, 0.2 - 6 bar](/web/image/product.template/139862/image_128/%5B100428%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%203-4%2C%200.2%20-%206%20bar?unique=e96b4a8)
|
Type number: R 34 - 6 |
53.70 € | |
![[100429] RIEGLER Pressure regulator »multifix«, Size 3, G 3/4, 0.5 - 10 bar](/web/image/product.template/139863/image_128/%5B100429%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=12c20d1)
|
Type number: R 34 - 10 |
53.70 € | |
![[100430] RIEGLER Pressure regulator »multifix«, Size 3, G 3/4, 0.5 - 16 bar](/web/image/product.template/139864/image_128/%5B100430%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=2d04715)
|
Type number: R 34 - 16 |
53.70 € | |
![[133101] RIEGLER Pressure regulator »multifix«, Size 4, G 1, 0.1 - 3 bar](/web/image/product.template/202751/image_128/%5B133101%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%201%2C%200.1%20-%203%20bar?unique=7bb7971)
|
Type number: R 45 - 3 |
112.94 € | |
![[133102] RIEGLER Pressure regulator »multifix«, Size 4, G 1, 0.2 - 6 bar](/web/image/product.template/202752/image_128/%5B133102%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%201%2C%200.2%20-%206%20bar?unique=3f5ee94)
|
Type number: R 45 - 6 |
112.94 € | |
![[133103] RIEGLER Pressure regulator »multifix«, Size 4, G 1, 0.5 - 10 bar](/web/image/product.template/202753/image_128/%5B133103%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%201%2C%200.5%20-%2010%20bar?unique=61e73b1)
|
Type number: R 45 - 10 |
112.94 € | |
![[133104] RIEGLER Pressure regulator »multifix«, Size 4, G 1, 0.5 - 16 bar](/web/image/product.template/202754/image_128/%5B133104%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%201%2C%200.5%20-%2016%20bar?unique=4579f39)
|
Type number: R 45 - 16 |
112.94 € | |
![[133097] RIEGLER Pressure regulator »multifix«, Size 4, G 3/4, 0.1 - 3 bar](/web/image/product.template/202747/image_128/%5B133097%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.1%20-%203%20bar?unique=7dcca6b)
|
Type number: R 44 - 3 |
112.94 € | |
![[133098] RIEGLER Pressure regulator »multifix«, Size 4, G 3/4, 0.2 - 6 bar](/web/image/product.template/202748/image_128/%5B133098%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.2%20-%206%20bar?unique=6482cc2)
|
Type number: R 44 - 6 |
112.94 € | |
![[133099] RIEGLER Pressure regulator »multifix«, Size 4, G 3/4, 0.5 - 10 bar](/web/image/product.template/202749/image_128/%5B133099%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=5eee309)
|
Type number: R 44 - 10 |
112.94 € | |
![[133100] RIEGLER Pressure regulator »multifix«, Size 4, G 3/4, 0.5 - 16 bar](/web/image/product.template/202750/image_128/%5B133100%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=b05b83d)
|
Type number: R 44 - 16 |
112.94 € | |
![[100431] RIEGLER Pressure regulator »multifix«, Size 5, G 1, 0.1 - 3 bar](/web/image/product.template/139865/image_128/%5B100431%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201%2C%200.1%20-%203%20bar?unique=2b63404)
|
Type number: R 55 - 3 |
138.11 € | |
![[100432] RIEGLER Pressure regulator »multifix«, Size 5, G 1, 0.2 - 6 bar](/web/image/product.template/139866/image_128/%5B100432%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201%2C%200.2%20-%206%20bar?unique=6252aaa)
|
Type number: R 55 - 6 |
138.11 € | |
![[100433] RIEGLER Pressure regulator »multifix«, Size 5, G 1, 0.5 - 10 bar](/web/image/product.template/139867/image_128/%5B100433%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201%2C%200.5%20-%2010%20bar?unique=c30585c)
|
Type number: R 55 - 10 |
138.11 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=8e2bced)
|
Type number: R 11-55 |
1.64 € | |

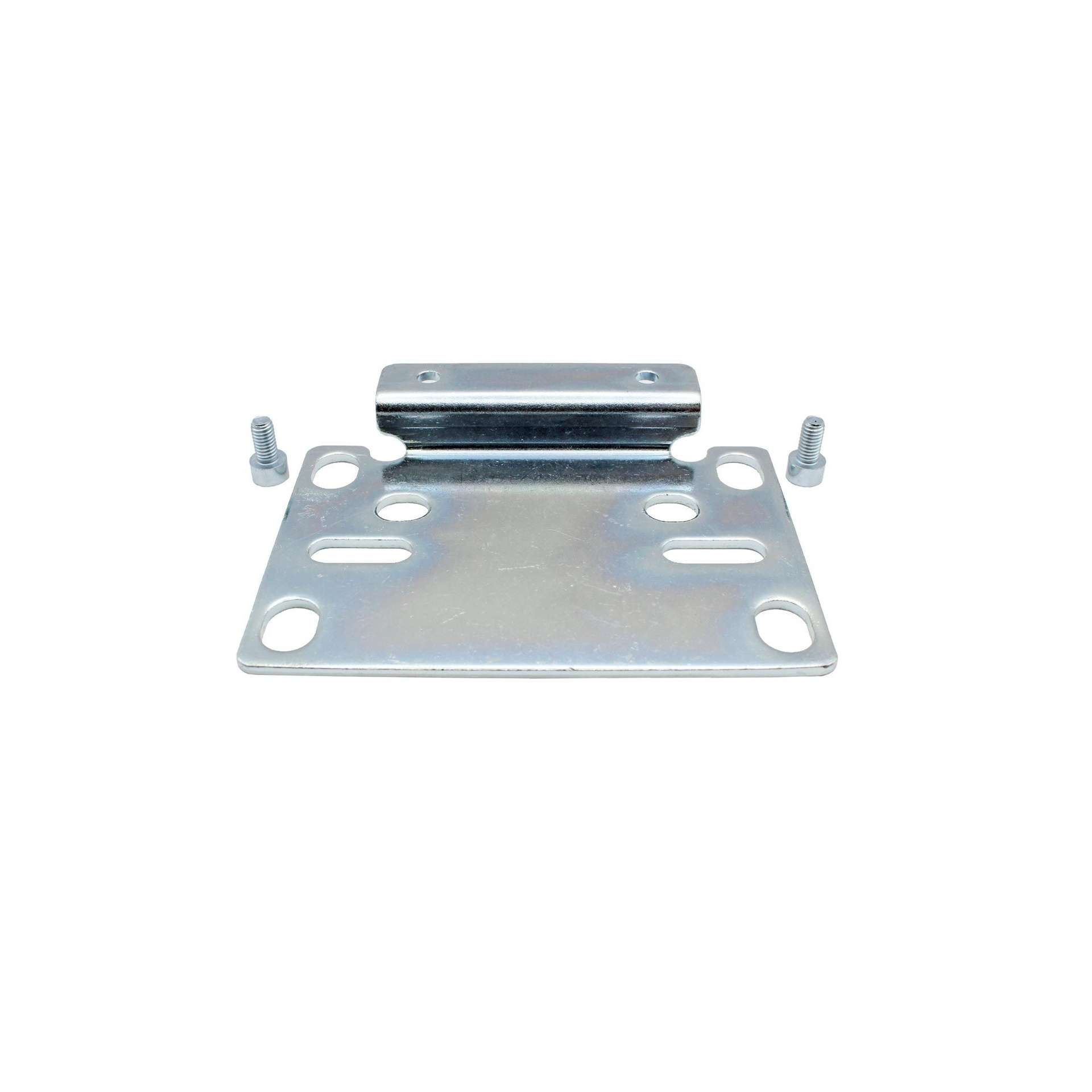

![[100445] RIEGLER Mounting bracket with 2 screws, for »multifix«, Size 5, G 1](/web/image/product.template/139879/image_128/%5B100445%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201?unique=8c39b76)
|
