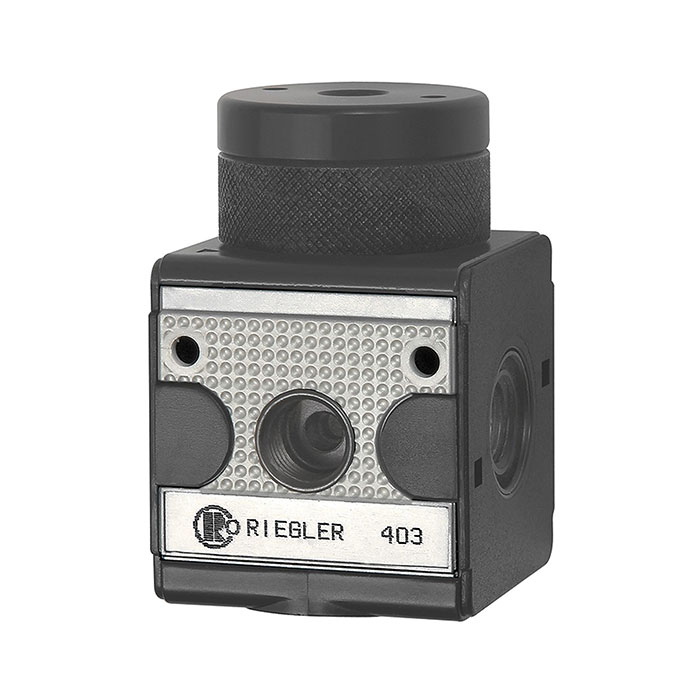

RIEGLER Pressure regulator pneumatic remote controlled »multifix«, G 1/4
Type number: RI 11
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator pneumatic remote controlled »multifix«, without pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 2100 l/min |
| DN | 6 |
| Control air connection | G 1/8 |
| BG | 1 |
| A | 48 mm |
| B | 75 mm |
| C | 48 mm |
| D | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

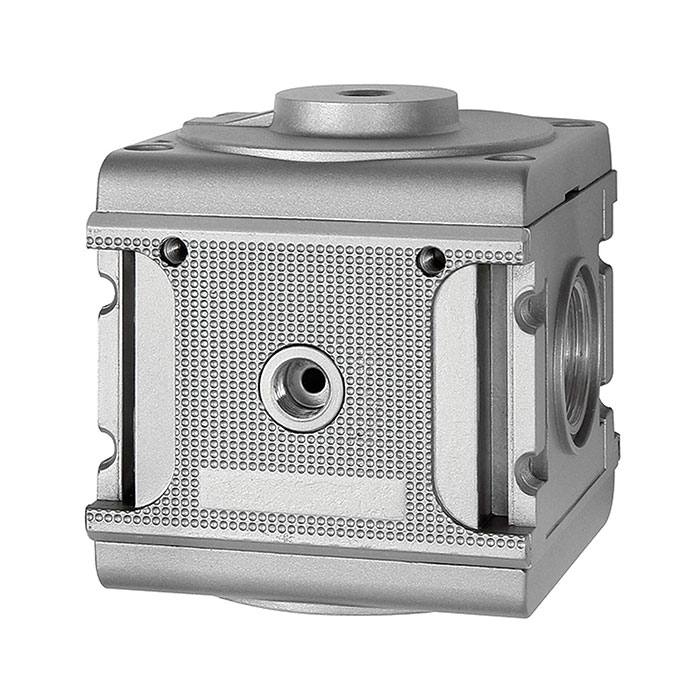

![[100464] RIEGLER Pressure regulator pneumatic remote controlled »multifix«, G 1](/web/image/product.template/139898/image_128/%5B100464%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBmultifix%C2%AB%2C%20G%201?unique=715160f)
|
Type number: RI 55 |
129.92 € | |
![[133106] RIEGLER Pressure regulator pneumatic remote controlled »multifix«, G 1](/web/image/product.template/202756/image_128/%5B133106%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBmultifix%C2%AB%2C%20G%201?unique=97d93fa)
|
Type number: RI 45 |
115.97 € | |
![[100463] RIEGLER Pressure regulator pneumatic remote controlled »multifix«, G 1/2](/web/image/product.template/139897/image_128/%5B100463%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBmultifix%C2%AB%2C%20G%201-2?unique=c7c0c04)
|
Type number: RI 33 |
91.98 € | |

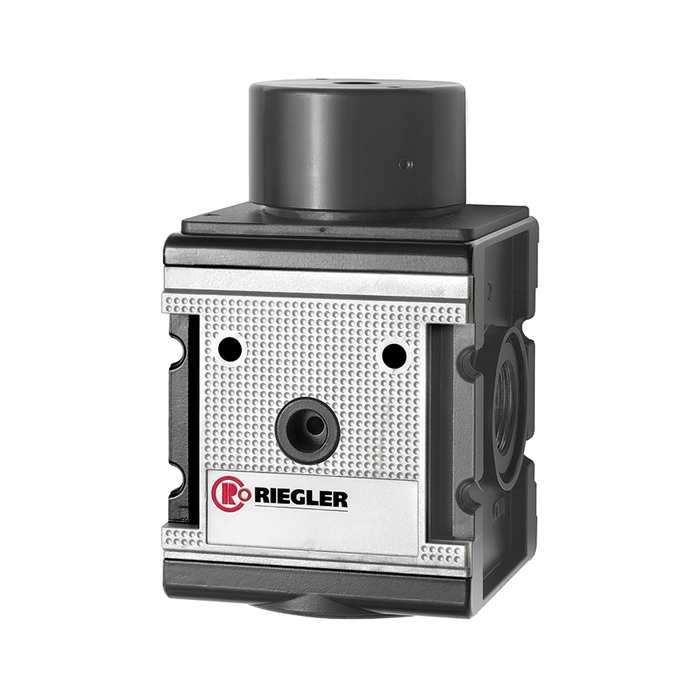

![[133105] RIEGLER Pressure regulator pneumatic remote controlled »multifix«, G 3/4](/web/image/product.template/202755/image_128/%5B133105%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBmultifix%C2%AB%2C%20G%203-4?unique=01a8fa5)
|
Type number: RI 44 |
115.97 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=5ba636d)
|
Type number: ZW 11 |
3.63 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

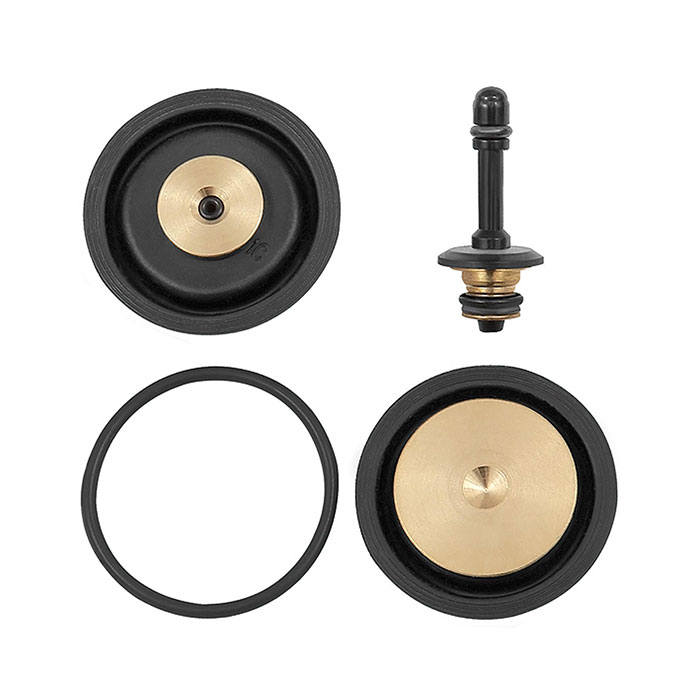

![[100465] RIEGLER Wear part set, pressure regulator pneu. remote contr. »multifix«](/web/image/product.template/139899/image_128/%5B100465%5D%20RIEGLER%20Wear%20part%20set%2C%20pressure%20regulator%20pneu.%20remote%20contr.%20%C2%BBmultifix%C2%AB?unique=df1c327)
|
Type number: 22.18911.4 |
29.65 € | |
