RIEGLER Filter »multifix«, Polycarbonate container, 5 µm, Size 3, G 1/2
Type number: F 33 K-HA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "multifix" with polycarbonate bowl made of die-cast zinc, for compressed air treatment - type F 33 K-HA
The RIEGLER "multifix" filter with polycarbonate container, 5 µm, BG 3, G 1/2, HA removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 5850 l/min (at P1= 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air treatment upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Flow rate measurement | with P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 5850 l/min |
| Condensate drain | semi-automatic |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 181.8 mm |
| C | 34.5 mm |
| D | 147.3 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100516] RIEGLER Filter »multifix«, Polycarbonate container, 40 µm, Size 5, G 1](/web/image/product.template/139951/image_128/%5B100516%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Polycarbonate%20container%2C%2040%20%C2%B5m%2C%20Size%205%2C%20G%201?unique=82083c7)
|
Type number: F 55 K-HA |
132.51 € | |

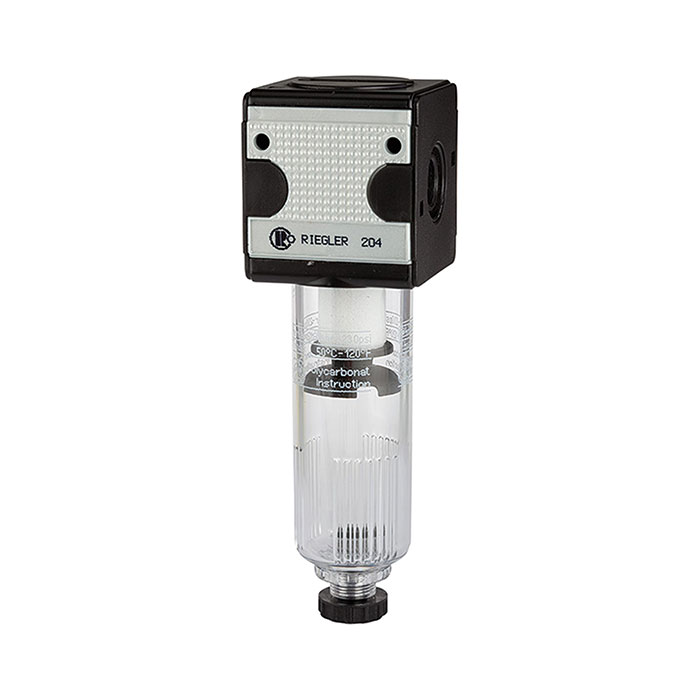

![[100512] RIEGLER Filter »multifix«, Polycarbonate container, 5 µm, Size 1, G 1/4](/web/image/product.template/139947/image_128/%5B100512%5D%20RIEGLER%20Filter%20%C2%BBmultifix%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=720f948)
|
