RIEGLER Pre-filter »multifix« with PC container, 0.3 µm, Size 3, G 1/2
Type number: FV 33 K-HA
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Vorfilter »multifix« mit PC-Behälter, 0,3 µm, BG 3, G 1/2, PE max. 16 bar, Mediums-Umgebungstemp. max. 60 °C, Ablassventil: HA
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Filter element | Paper POM |
| Filter fineness | 0.3 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 1/2 |
| Flow rate | 500 l/min |
| Condensate drain | semi-automatic |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 185.8 mm |
| C | 38.5 mm |
| D | 147.3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

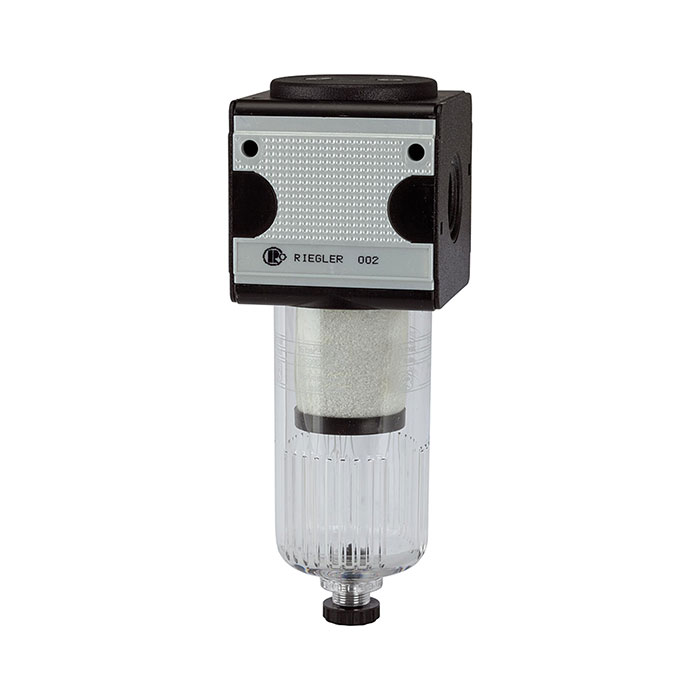

![[100527] RIEGLER Pre-filter »multifix« with PC container, 0.3 µm, Size 1, G 1/4](/web/image/product.template/139962/image_128/%5B100527%5D%20RIEGLER%20Pre-filter%20%C2%BBmultifix%C2%AB%20with%20PC%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=8b4f1d0)
|
Type number: FV 11 K-HA |
72.59 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

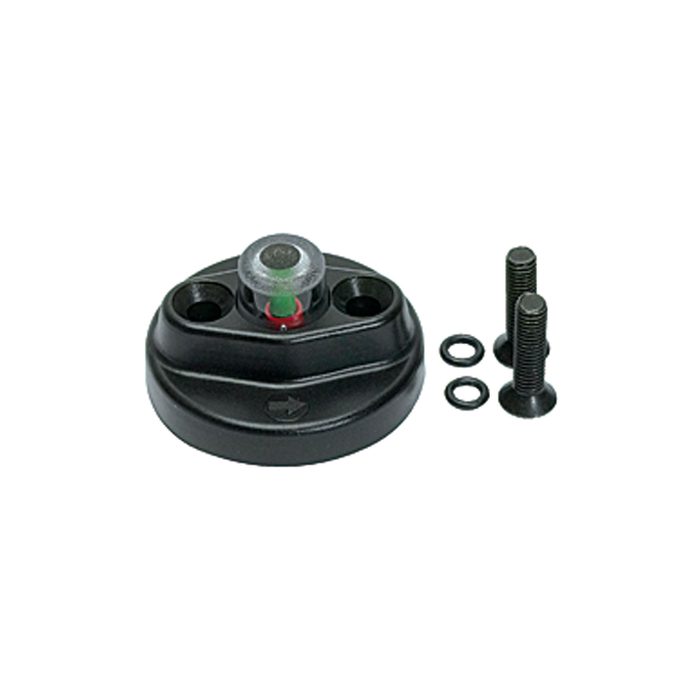

![[100171] Riegler Differential pressure display, for pre / microfilter](/web/image/product.template/123232/image_128/%5B100171%5D%20Riegler%20Differential%20pressure%20display%2C%20for%20pre%20-%20microfilter?unique=d3668e8)
|
Type number: DAF 1 |
29.18 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=1b40a6e)
|
Type number: 655.6.900 |
36.96 € | |

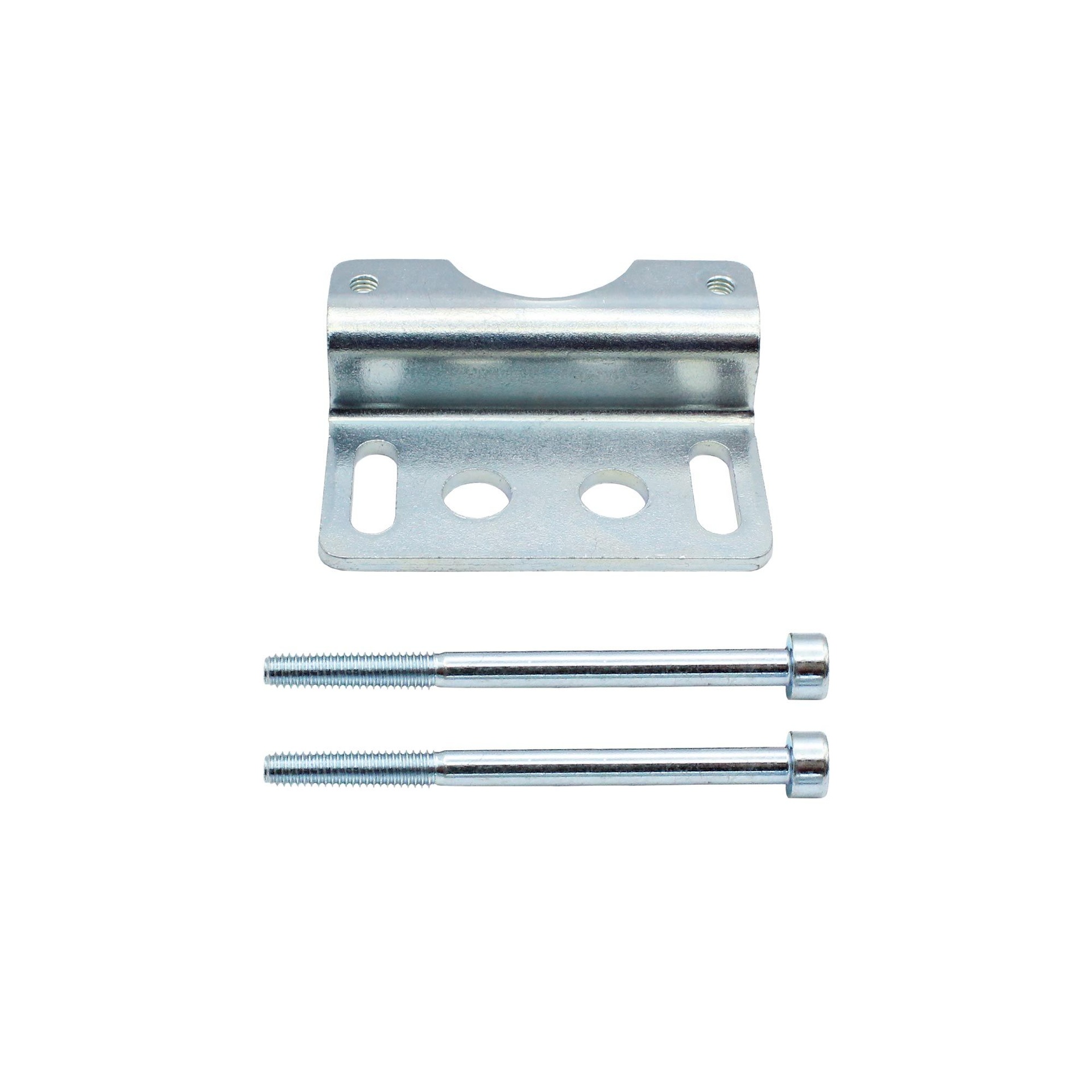

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=43d24c5)
|
Type number: ZW 33 |
5.00 € | |

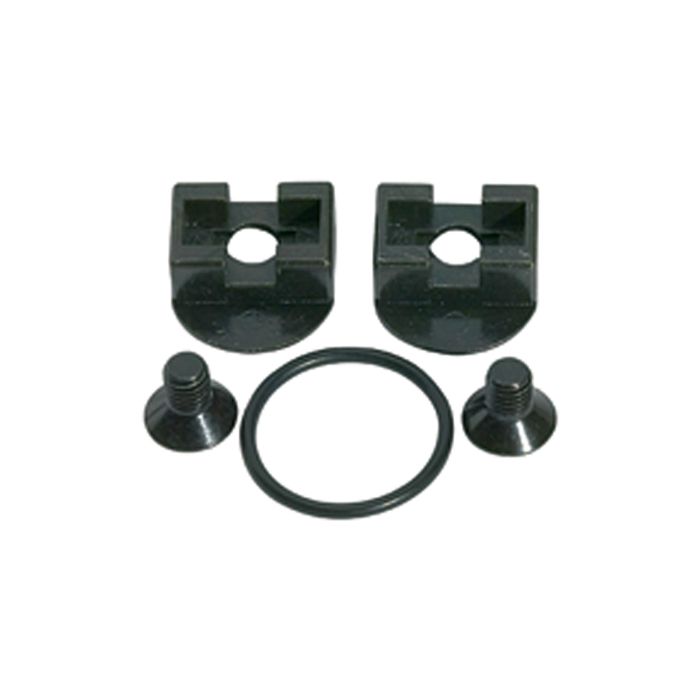

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=215f977)
|
Type number: KP 33 |
2.02 € | |

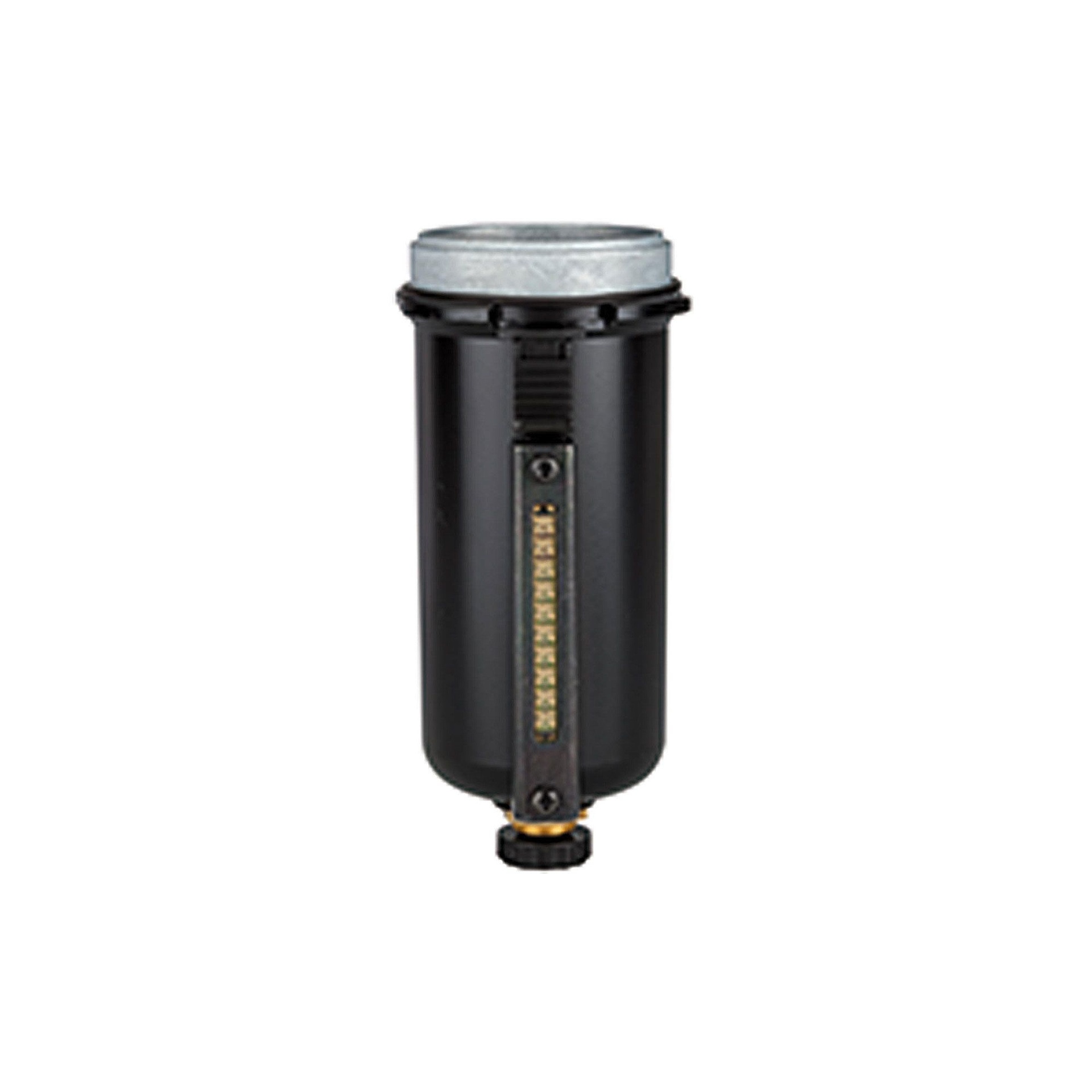

![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=bb4c1db)
|
Type number: MS 33 FS |
34.69 € | |
![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=bfd6062)
|
Type number: SK 33 |
10.91 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=fc72cfa)
|
Type number: KS 33 F-HA |
13.66 € | |
