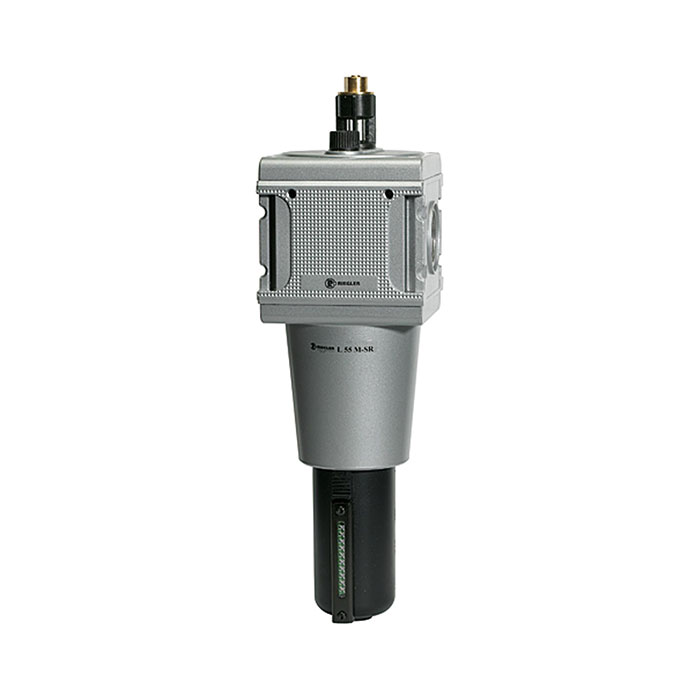

RIEGLER Mist oiler »multifix«, with metal container, Size 5, G 1
Type number: L 55 M-SR
EAN: 4047322155830
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist lubricator "multifix" with metal container, sight tube, metal drip cap, BG 5, G 1, PE max. 20 bar, max. ambient temp. 60 °C
| Inlet pressure max. | 20 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 19000 l/min |
| DN | 25 |
| BG | 5 |
| A | 100 mm |
| B | 322.9 mm |
| C | 82.7 mm |
| D | 240.2 mm |
| Class name | PLUS |
