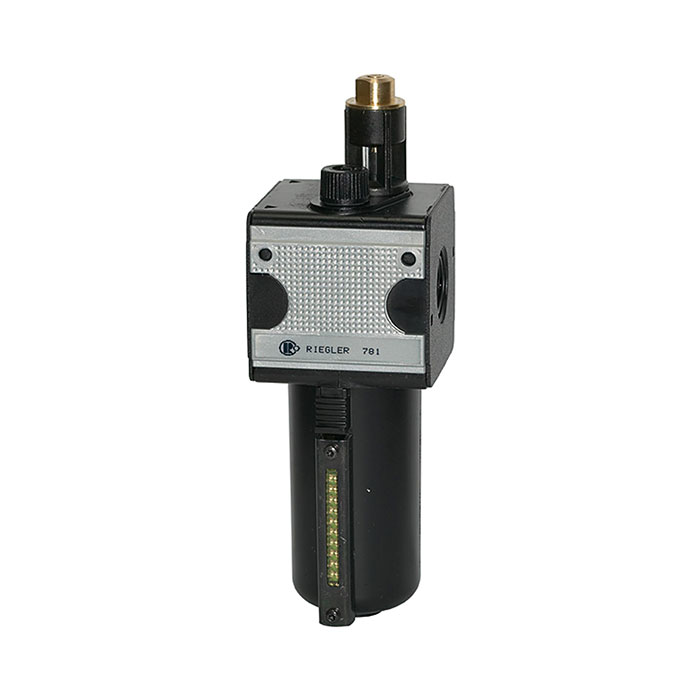

RIEGLER Mist oiler »multifix«, with metal container, Size 3, G 1/2
Type number: L 33 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Mist lubricator "multifix" with metal container, sight tube, metal drip cap, BG 3, G 1/2, PE max. 20 bar, max. ambient temp. 60 °C
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 5000 l/min |
| DN | 15 |
| BG | 3 |
| A | 68.8 mm |
| B | 213 mm |
| C | 79.3 mm |
| D | 133.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100561] RIEGLER Mist oiler »multifix«, with metal container, Size 1, G 1/4](/web/image/product.template/139996/image_128/%5B100561%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=0f00303)
|
Type number: L 11 M-SR |
57.16 € | |

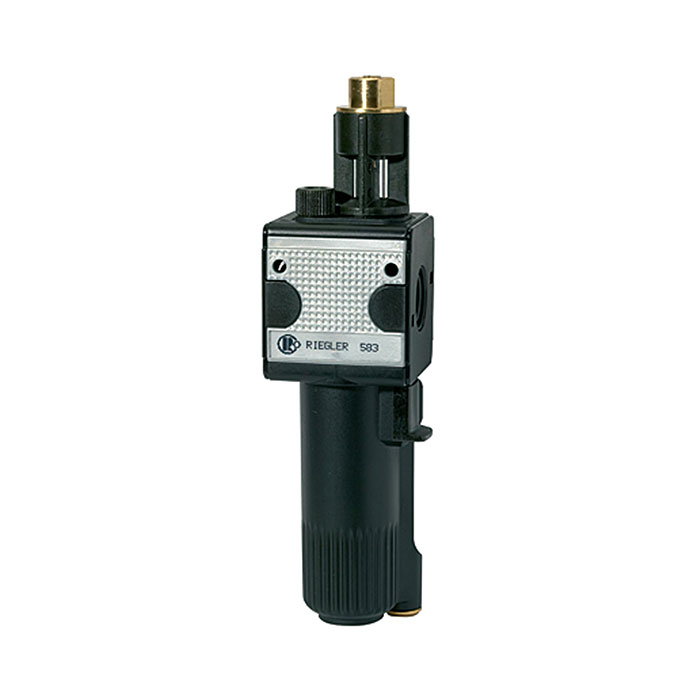

![[100562] RIEGLER Mist oiler »multifix«, with metal container, Size 1, G 3/8](/web/image/product.template/139997/image_128/%5B100562%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%201%2C%20G%203-8?unique=bde1573)
|
Type number: L 12 M-SR |
57.16 € | |
![[100564] RIEGLER Mist oiler »multifix«, with metal container, Size 3, G 3/4](/web/image/product.template/139999/image_128/%5B100564%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%203%2C%20G%203-4?unique=a1bc8af)
|
Type number: L 34 M-SR |
72.98 € | |
![[133122] RIEGLER Mist oiler »multifix«, with metal container, Size 4, G 1](/web/image/product.template/202772/image_128/%5B133122%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%204%2C%20G%201?unique=d06ed90)
|
Type number: L 45 M-SR |
136.95 € | |

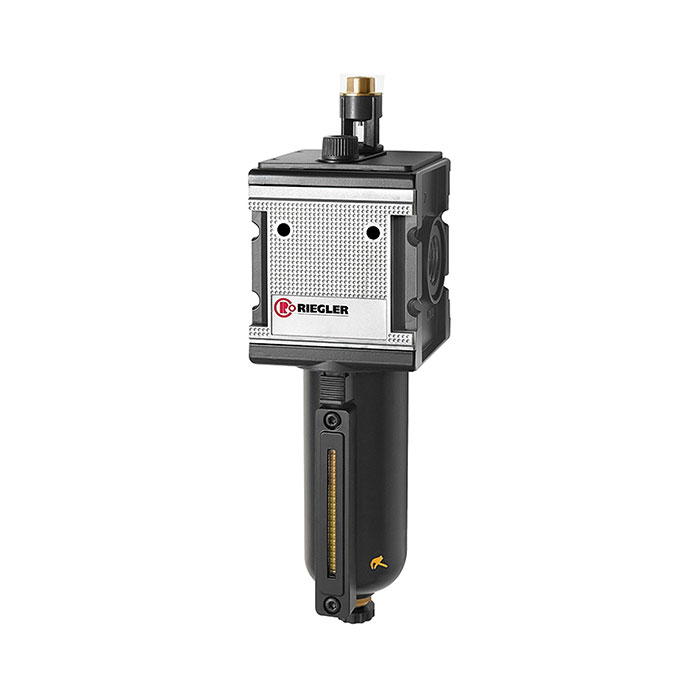

![[133121] RIEGLER Mist oiler »multifix«, with metal container, Size 4, G 3/4](/web/image/product.template/202771/image_128/%5B133121%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%204%2C%20G%203-4?unique=772abab)
|
Type number: L 44 M-SR |
136.95 € | |

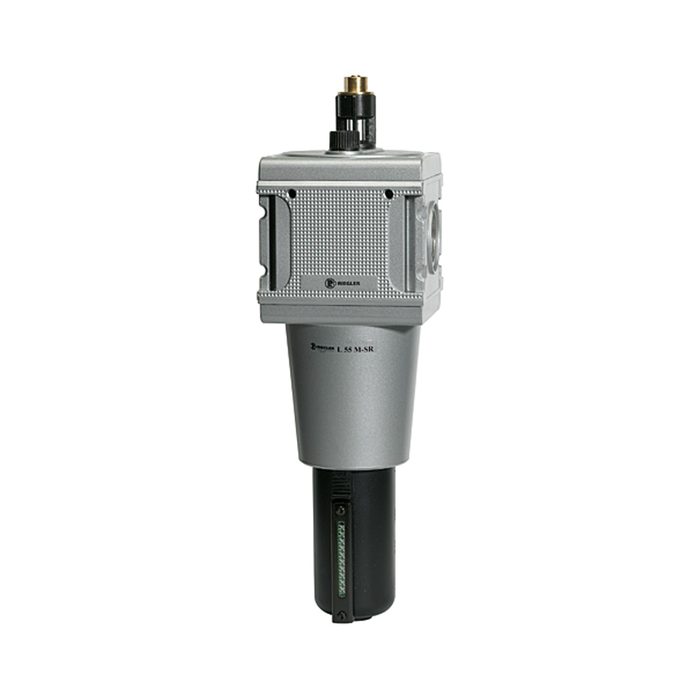

![[100565] RIEGLER Mist oiler »multifix«, with metal container, Size 5, G 1](/web/image/product.template/140000/image_128/%5B100565%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%205%2C%20G%201?unique=eb8a88d)
|
Type number: L 55 M-SR |
154.57 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=f58d385)
|
Type number: 32 |
34.09 € | |
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=a3b6f2a)
|
Type number: 1233.7.990 |
9.48 € | |

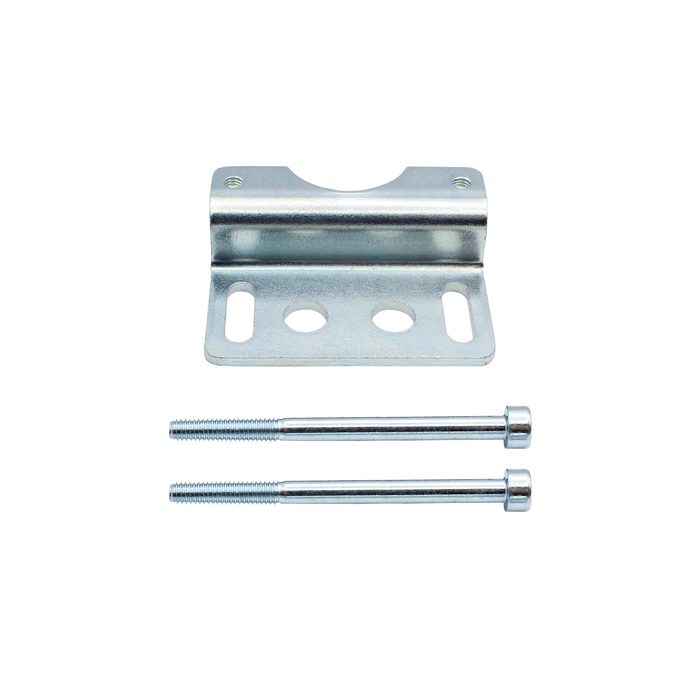

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=ce664ef)
|
Type number: ZW 33 |
5.00 € | |

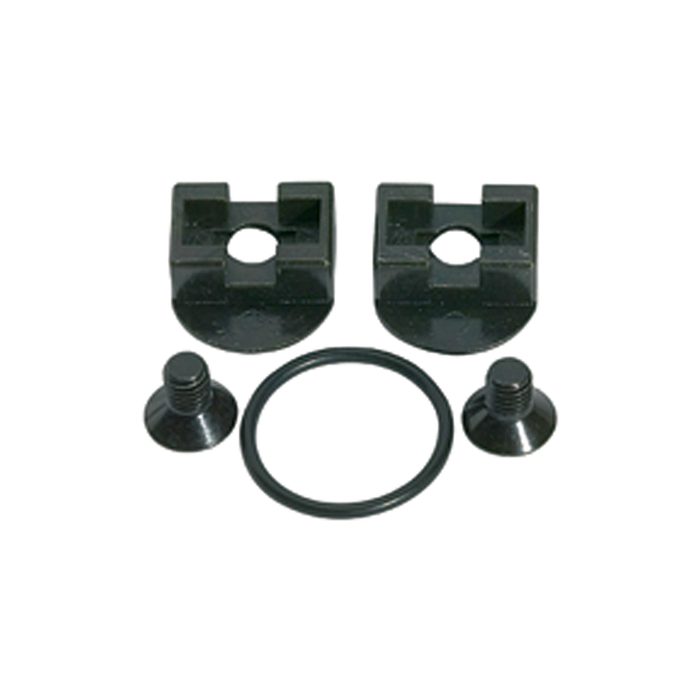

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=8a0b258)
|
Type number: KP 33 |
2.01 € | |
![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=61cd795)
|
Type number: SK 33 |
10.91 € | |

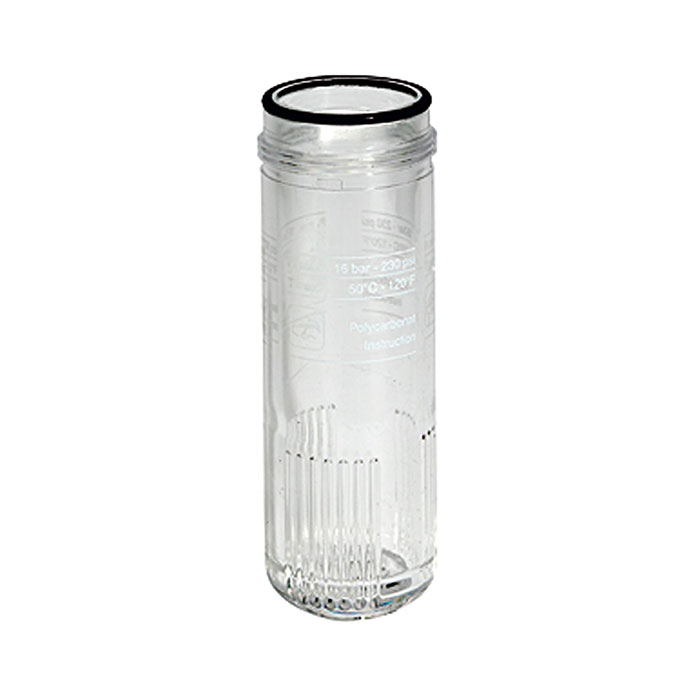

![[100548] RIEGLER Polycarbonate container, incl. O-ring, for »multifix«, Size 3+5](/web/image/product.template/139983/image_128/%5B100548%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2B5?unique=b62cdf5)
|
Type number: KS 33 N |
11.90 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=6ed47aa)
|
Type number: 1233.7.909 |
18.71 € | |

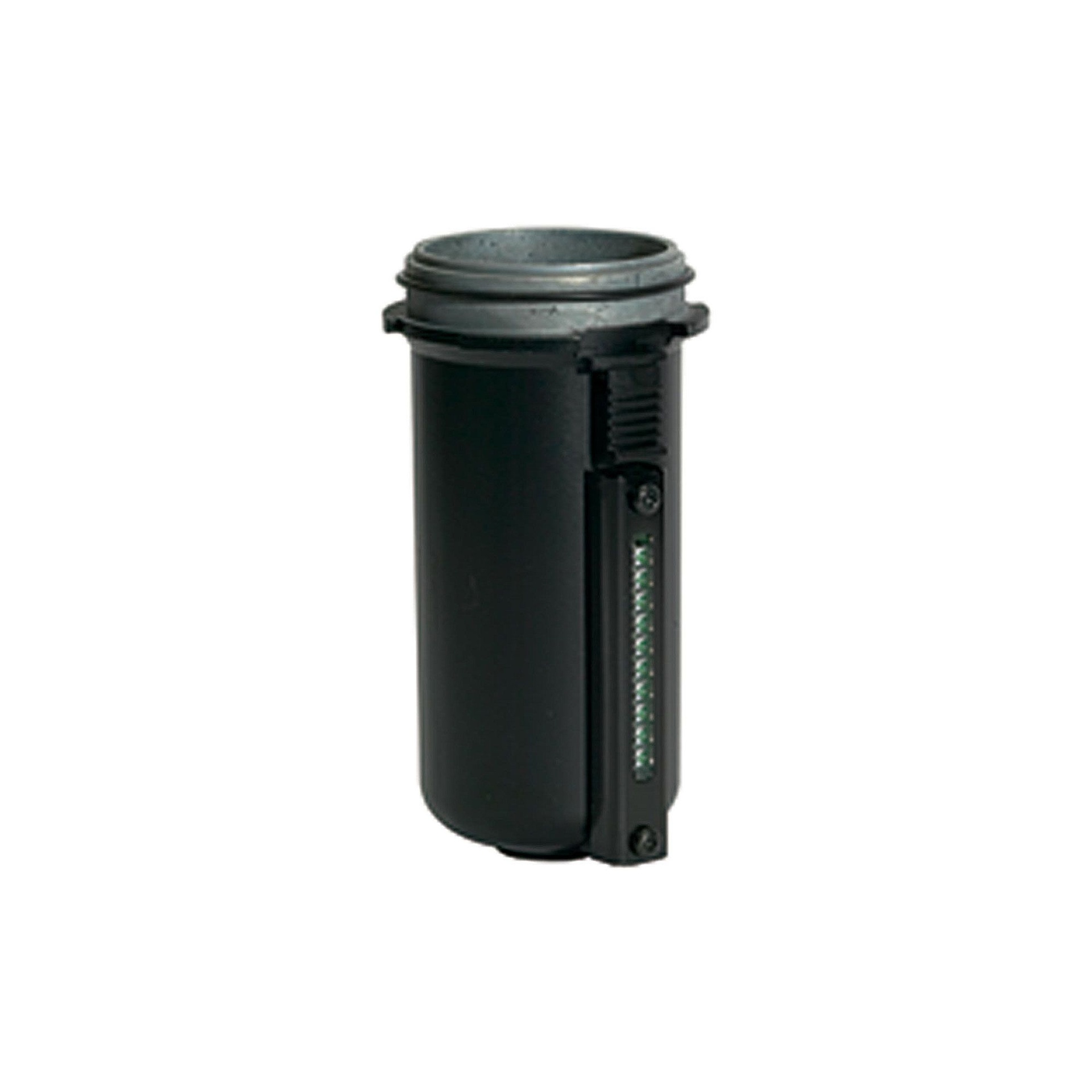

![[100549] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139984/image_128/%5B100549%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=8b0729a)
|
Type number: MS 33 NS |
32.64 € | |
