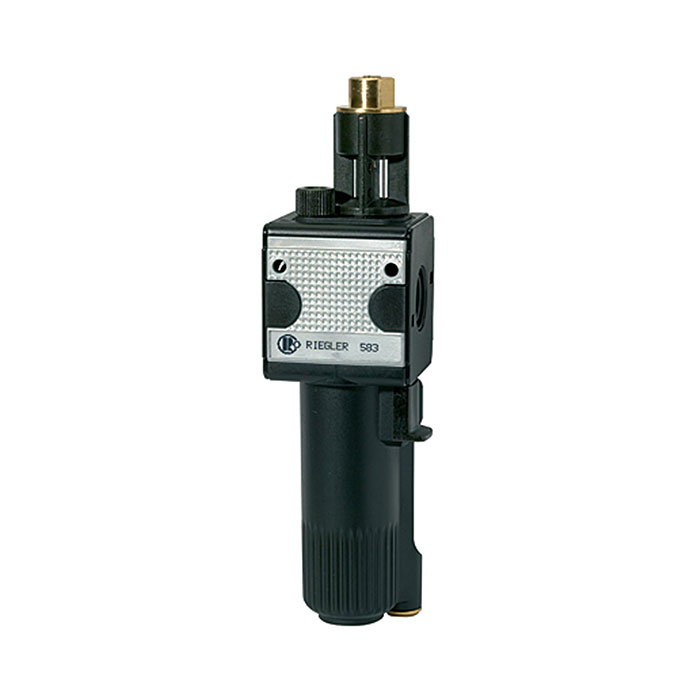

RIEGLER Mist oiler »multifix«, with metal container, Size 1, G 3/8
Type number: L 12 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "multifix" made of die-cast zinc, for compressed air treatment, G 3/8 - type L 12 M-SR
The RIEGLER mist lubricator "multifix", with metal container, sight tube, BG 1, G 3/8 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 20 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 1900 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Metal container with sight tube. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 1900 l/min |
| DN | 10 |
| BG | 1 |
| A | 47.8 mm |
| B | 181.3 mm |
| C | 71.3 mm |
| D | 110 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100561] RIEGLER Mist oiler »multifix«, with metal container, Size 1, G 1/4](/web/image/product.template/139996/image_128/%5B100561%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=e78518a)
|
Type number: L 11 M-SR |
57.16 € | |

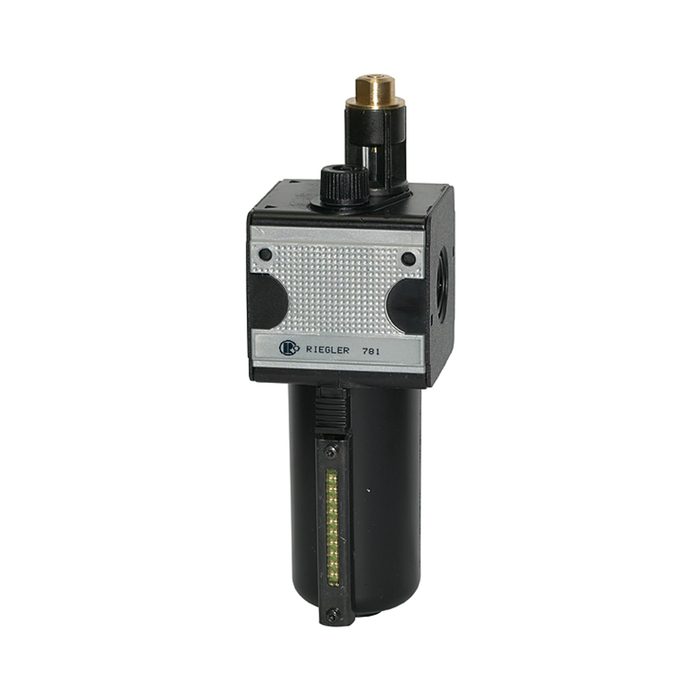

![[100563] RIEGLER Mist oiler »multifix«, with metal container, Size 3, G 1/2](/web/image/product.template/139998/image_128/%5B100563%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%203%2C%20G%201-2?unique=0c620f5)
|
Type number: L 33 M-SR |
72.98 € | |
![[100564] RIEGLER Mist oiler »multifix«, with metal container, Size 3, G 3/4](/web/image/product.template/139999/image_128/%5B100564%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%203%2C%20G%203-4?unique=a9ebb23)
|
Type number: L 34 M-SR |
72.98 € | |

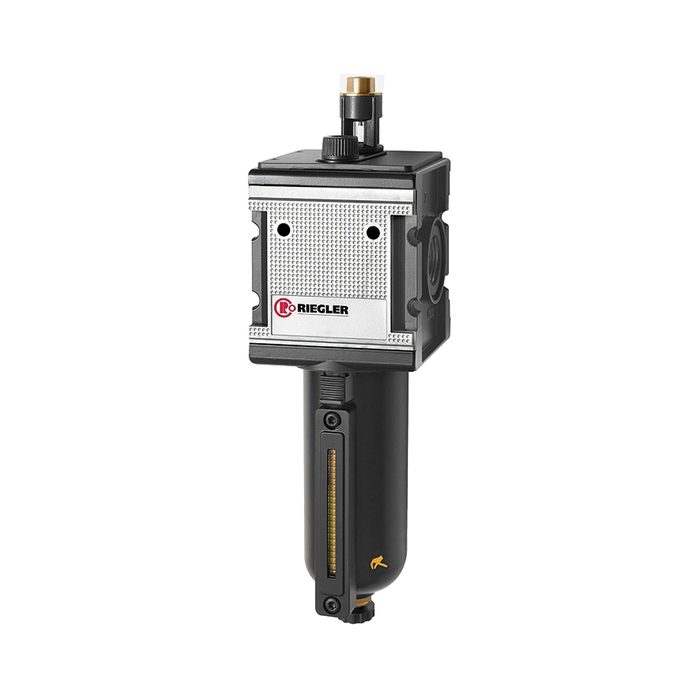

![[133122] RIEGLER Mist oiler »multifix«, with metal container, Size 4, G 1](/web/image/product.template/202772/image_128/%5B133122%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%204%2C%20G%201?unique=12fc982)
|
Type number: L 45 M-SR |
136.95 € | |
![[133121] RIEGLER Mist oiler »multifix«, with metal container, Size 4, G 3/4](/web/image/product.template/202771/image_128/%5B133121%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%204%2C%20G%203-4?unique=a14db7f)
|
Type number: L 44 M-SR |
136.95 € | |

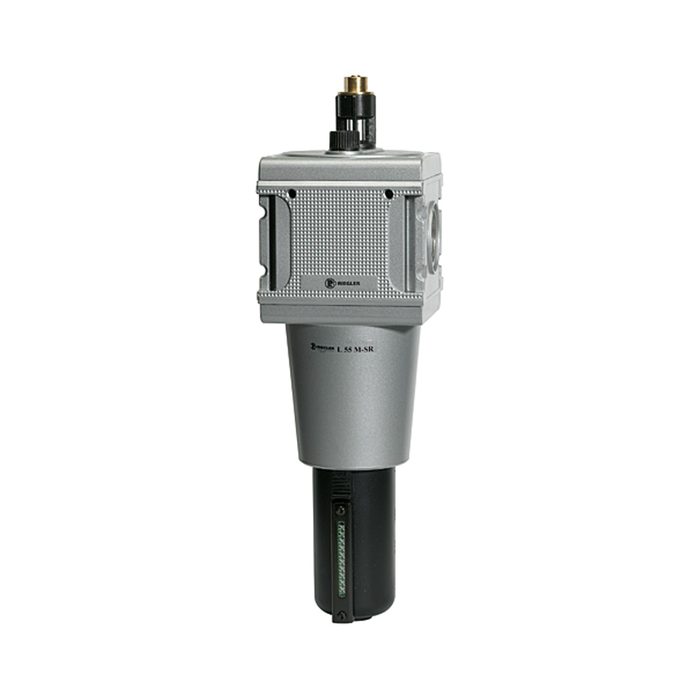

![[100565] RIEGLER Mist oiler »multifix«, with metal container, Size 5, G 1](/web/image/product.template/140000/image_128/%5B100565%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20with%20metal%20container%2C%20Size%205%2C%20G%201?unique=2da18ee)
|
Type number: L 55 M-SR |
154.57 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=36a168c)
|
Type number: 32 |
34.09 € | |

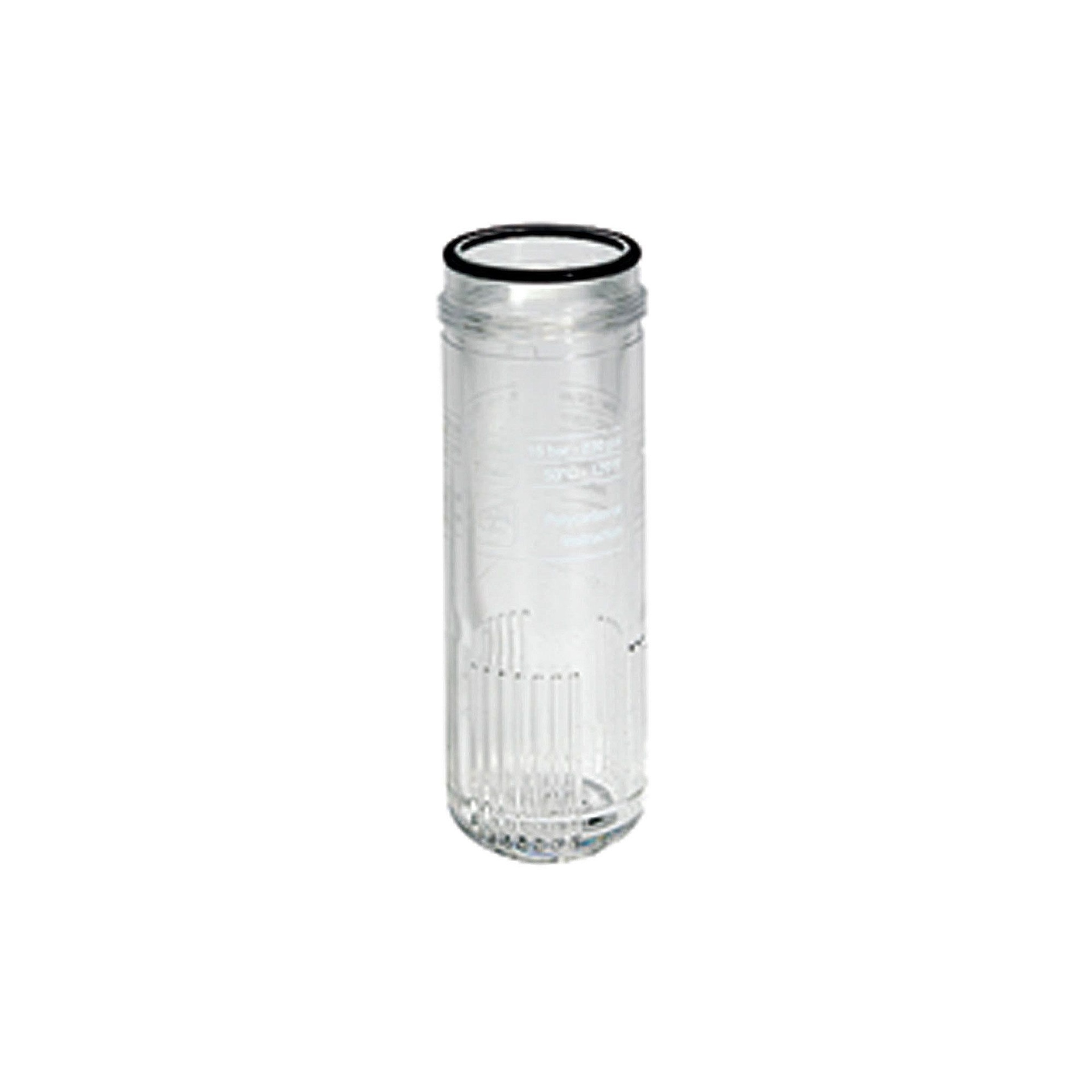

![[100385] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139819/image_128/%5B100385%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=3e2529b)
|
Type number: KS 11 N |
7.22 € | |

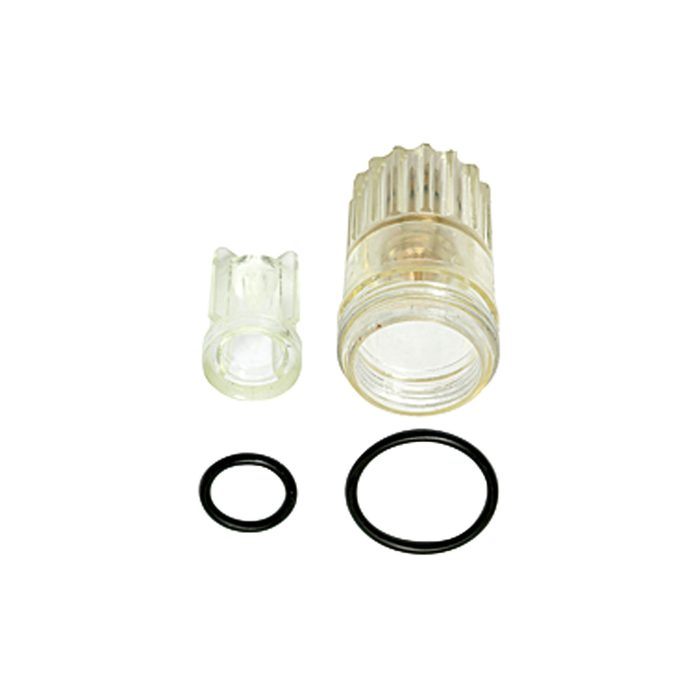

![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=867c282)
|
Type number: 1233.7.990 |
9.48 € | |
![[100435] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 1, G 1/4, G 3/8](/web/image/product.template/139869/image_128/%5B100435%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%20G%203-8?unique=209070c)
|
Type number: ZW 11 |
3.63 € | |
![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=7ad56d4)
|
Type number: KP 11 |
1.96 € | |
![[100501] RIEGLER Protective cage, for »multifix«, Size 1, G 1/4 and G 3/8](/web/image/product.template/139936/image_128/%5B100501%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=a9cd3cc)
|
Type number: SK 11 |
9.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=2eb5a13)
|
Type number: 1233.7.909 |
18.71 € | |

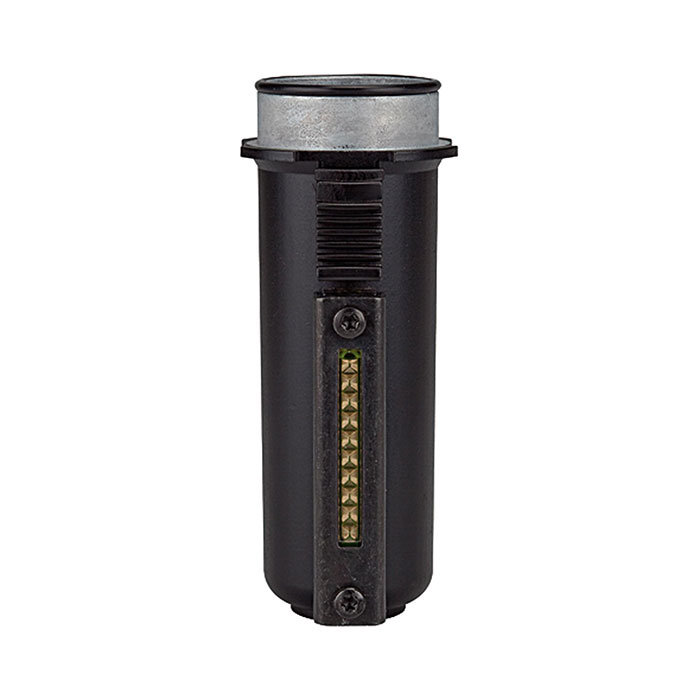

![[100547] RIEGLER Metal container with viewing tube, incl. O-ring, for »multifix«](/web/image/product.template/139982/image_128/%5B100547%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB?unique=efb9668)
|
