RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 3/4
Type number: VAK 25
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Active charcoal filter »variobloc« with PC container, 0.003 mg/m³, Size 2, G 3/4, Input pressure max. 16 bar, Temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Residual oil content | 0.003 mg/m³ |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 3/4 |
| Flow rate | 1300 l/min |
| BG | 2 |
| A | 70 mm |
| B | 193 mm |
| C | 26 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100692] RIEGLER Active charcoal filter »variobloc«, PC container, Size 1, G 1/4](/web/image/product.template/140127/image_128/%5B100692%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=ab3ec67)
|
Type number: VAK 22 |
112.80 € | |

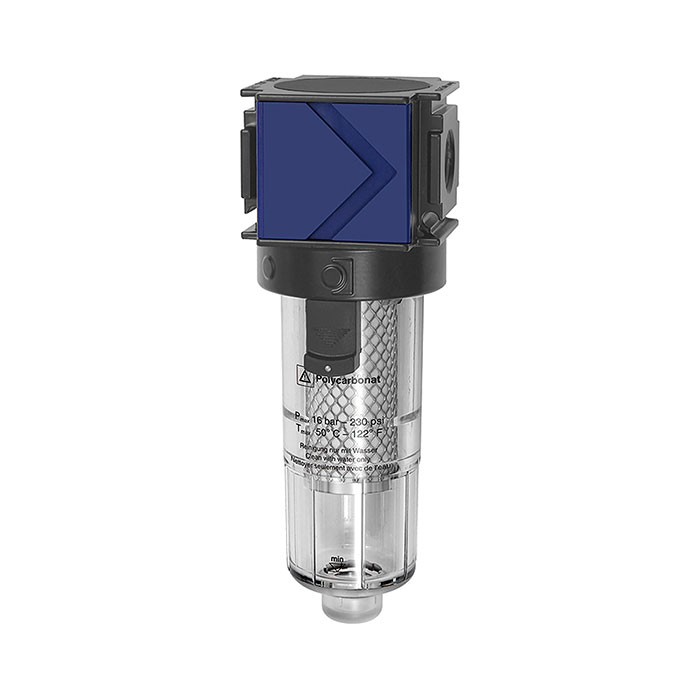

![[100693] RIEGLER Active charcoal filter »variobloc«, PC container, Size 1, G 3/8](/web/image/product.template/140128/image_128/%5B100693%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=d0bc141)
|
Type number: VAK 23 |
87.99 € | |
![[100696] RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 1](/web/image/product.template/140131/image_128/%5B100696%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%202%2C%20G%201?unique=f1551dd)
|
Type number: VAK 26 |
179.68 € | |
![[100694] RIEGLER Active charcoal filter »variobloc«, PC container, Size 2, G 1/2](/web/image/product.template/140129/image_128/%5B100694%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=38b517e)
|
Type number: VAK 24 |
131.80 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=3b3ea50)
|
Type number: VZ 532 |
18.43 € | |

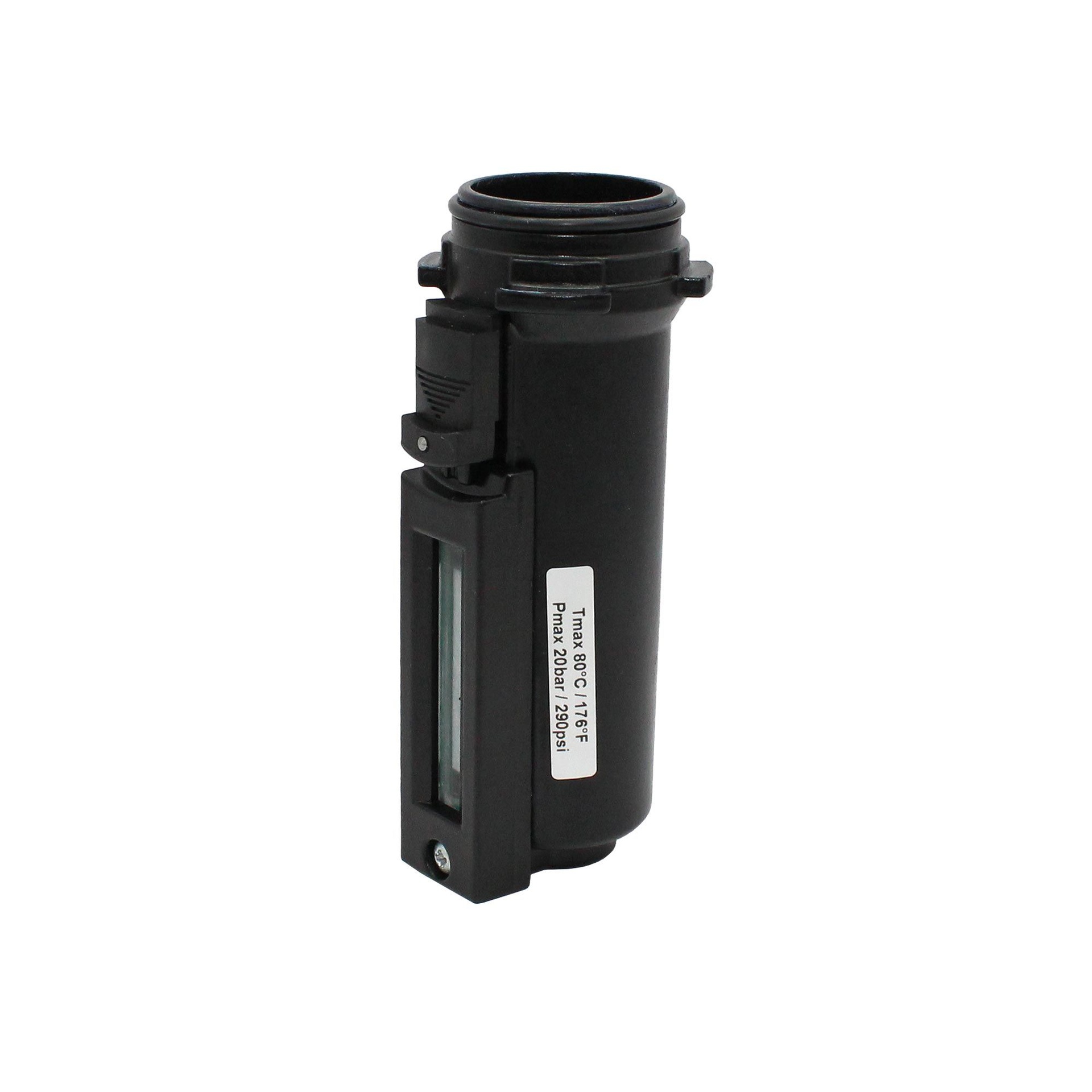

![[100700] RIEGLER Metal container incl. viewing tube](/web/image/product.template/140135/image_128/%5B100700%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube?unique=5d1740d)
|
Type number: VZ 652 |
49.04 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=c3c0f0b)
|
Type number: VZ 719 |
13.99 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=615cd42)
|
Type number: VZ 104 |
14.01 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=229c1f6)
|
Type number: VZ 204 |
23.11 € | |
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=1688a47)
|
Type number: VZ 500 |
29.85 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100702] RIEGLER Active charcoal filter element](/web/image/product.template/140138/image_128/%5B100702%5D%20RIEGLER%20Active%20charcoal%20filter%20element?unique=63e03e4)
|
Type number: VZ 772 |
95.76 € | |

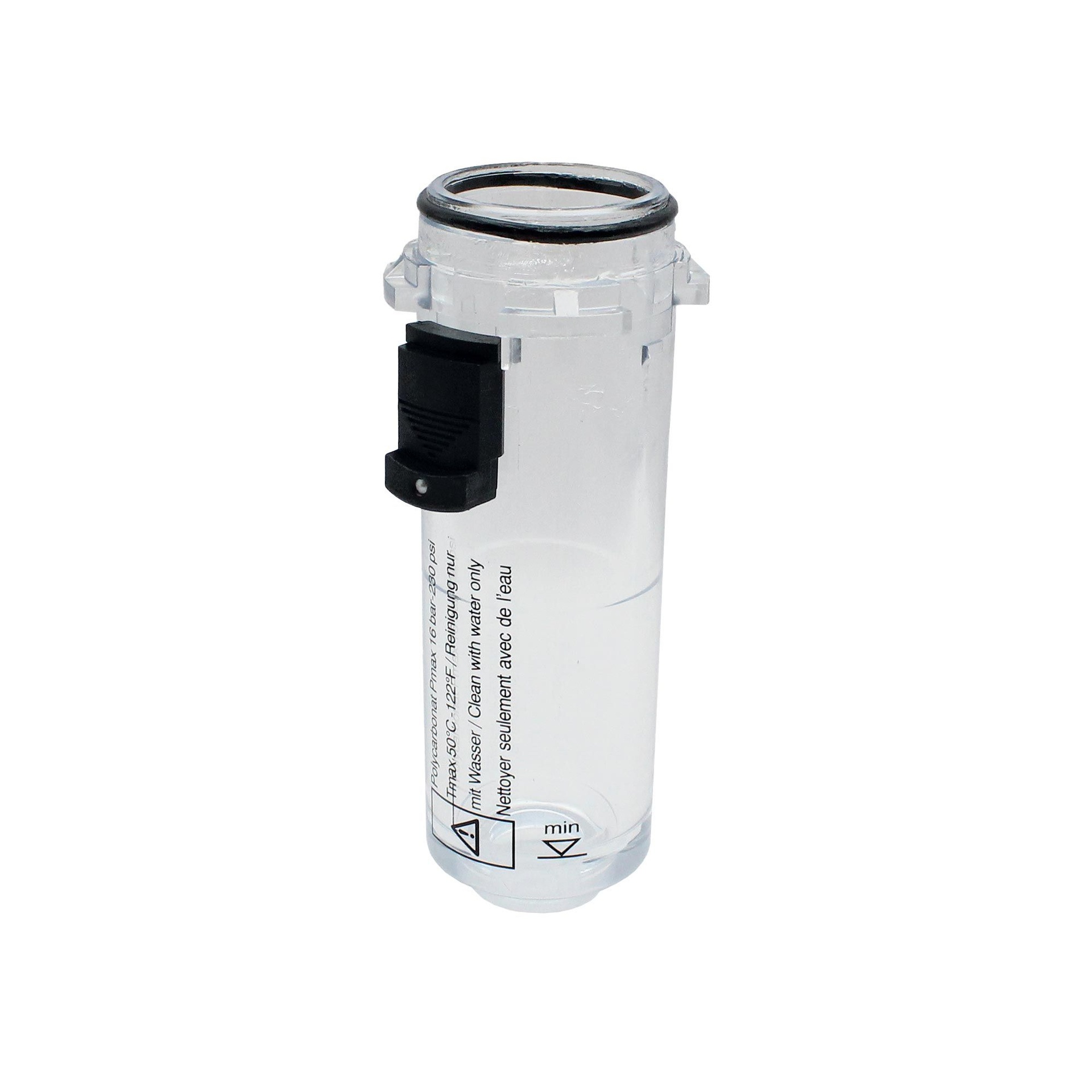

![[100698] RIEGLER Polycarbonate container](/web/image/product.template/140133/image_128/%5B100698%5D%20RIEGLER%20Polycarbonate%20container?unique=44dbe3c)
|
Type number: VZ 602 |
17.54 € | |
