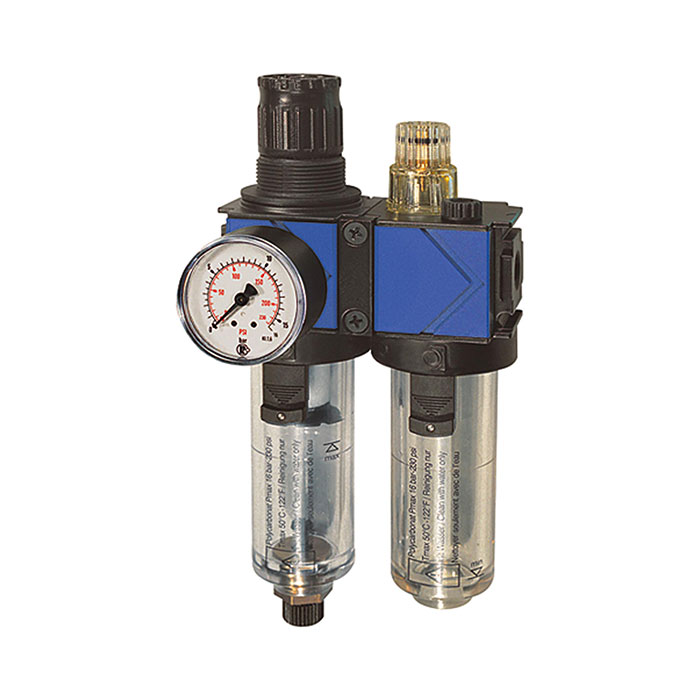

RIEGLER Service unit 2-part »variobloc« with PC container, Size 2, G 1
Type number: VW 26
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Service unit 2-part »variobloc« with PC container, Size 2, G 1, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | POM |
| Thread | G 1 |
| Flow rate | 5000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 194 mm |
| B | 273 mm |
| C | 98 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100717] RIEGLER Service unit 2-part »variobloc« with PC container, Size 1, G 1/4](/web/image/product.template/140153/image_128/%5B100717%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=b60f471)
|
Type number: VW 22 |
168.09 € | |
![[100718] RIEGLER Service unit 2-part »variobloc« with PC container, Size 1, G 3/8](/web/image/product.template/140154/image_128/%5B100718%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=7bfdf25)
|
Type number: VW 23 |
176.93 € | |
![[100719] RIEGLER Service unit 2-part »variobloc« with PC container, Size 2, G 1/2](/web/image/product.template/140155/image_128/%5B100719%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=ab3ec67)
|
Type number: VW 24 |
231.22 € | |
![[100720] RIEGLER Service unit 2-part »variobloc« with PC container, Size 2, G 3/4](/web/image/product.template/140156/image_128/%5B100720%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%203-4?unique=b60f471)
|
Type number: VW 25 |
190.41 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=e1bcc29)
|
Type number: 32 |
34.57 € | |
![[100665] RIEGLER PC container, Automatic bleeder valve (integrated design)](/web/image/product.template/140100/image_128/%5B100665%5D%20RIEGLER%20PC%20container%2C%20Automatic%20bleeder%20valve%20%28integrated%20design%29?unique=e3115a9)
|
Type number: VZ 512 |
46.16 € | |
![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=da60fe0)
|
Type number: VZ 532 |
18.43 € | |
![[100669] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 2](/web/image/product.template/140104/image_128/%5B100669%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=17215d4)
|
Type number: VZ 552 |
55.97 € | |
![[100671] RIEGLER Metal container incl. viewing tube, Automatic bleeder valve](/web/image/product.template/140106/image_128/%5B100671%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20Automatic%20bleeder%20valve?unique=16e5ed8)
|
Type number: VZ 562 |
78.14 € | |
![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=b59cc49)
|
Type number: VZ 751 |
9.63 € | |
![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=e28674d)
|
Type number: 65/0-N |
70.29 € | |
![[100700] RIEGLER Metal container incl. viewing tube](/web/image/product.template/140135/image_128/%5B100700%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube?unique=4f8c21b)
|
Type number: VZ 652 |
49.04 € | |
![[100711] RIEGLER Drip cap made of metal](/web/image/product.template/140147/image_128/%5B100711%5D%20RIEGLER%20Drip%20cap%20made%20of%20metal?unique=00cdbe3)
|
Type number: 1412.7.909 |
23.99 € | |
![[100747] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 2](/web/image/product.template/140183/image_128/%5B100747%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=05f1683)
|
Type number: 630/2-B |
13.52 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=00de79b)
|
Type number: VZ 719 |
13.99 € | |
![[100759] RIEGLER T-holder individual, for »variobloc«, Size 2, G 1/2, G 3/4, G 1](/web/image/product.template/140195/image_128/%5B100759%5D%20RIEGLER%20T-holder%20individual%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%2C%20G%201?unique=de50f0a)
|
Type number: VZ 302 |
11.06 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=ffb110c)
|
Type number: VZ 104 |
14.01 € | |
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=8e331bf)
|
Type number: VZ 500 |
29.85 € | |

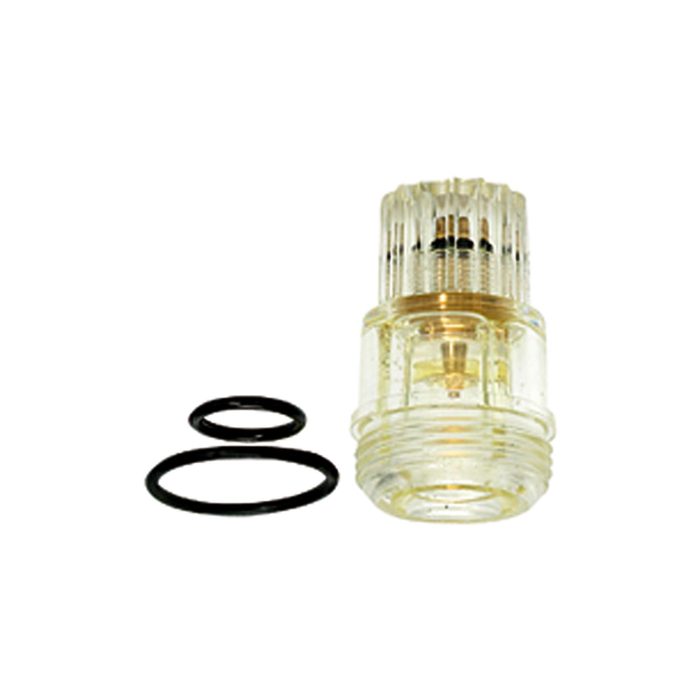

![[100709] RIEGLER Drip cap made of plastic, for mist oiler »variobloc«, Size 2](/web/image/product.template/140145/image_128/%5B100709%5D%20RIEGLER%20Drip%20cap%20made%20of%20plastic%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=092f56e)
|
Type number: VZ 722 |
10.28 € | |
![[100673] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140108/image_128/%5B100673%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=05a6bb2)
|
Type number: VZ 742 |
5.32 € | |

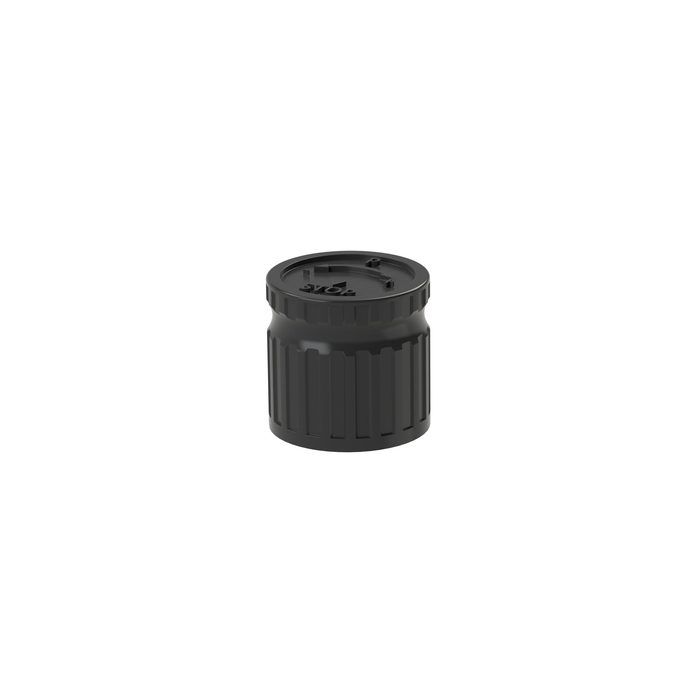

![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=5fd8d0a)
|
Type number: 443.3.94 |
2.36 € | |

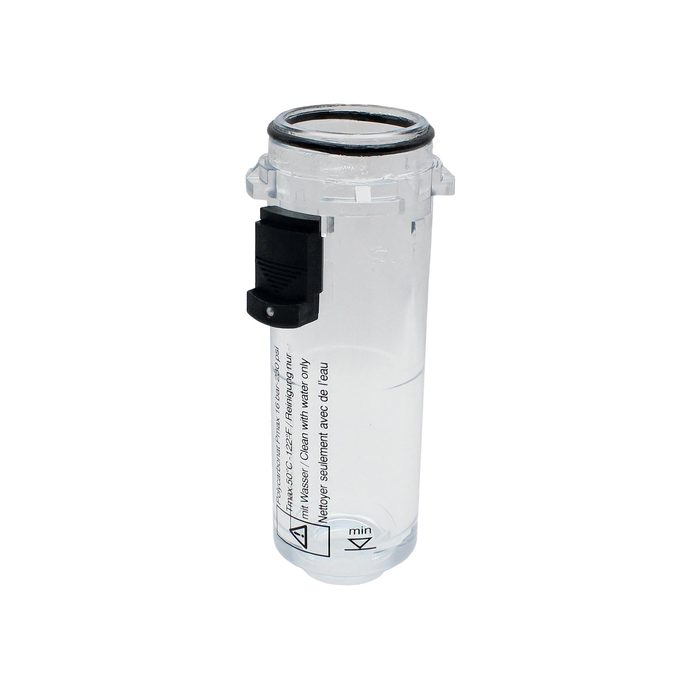

![[100698] RIEGLER Polycarbonate container](/web/image/product.template/140133/image_128/%5B100698%5D%20RIEGLER%20Polycarbonate%20container?unique=c5c4ce6)
|
Type number: VZ 602 |
17.54 € | |
![[100663] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140098/image_128/%5B100663%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=7ac6015)
|
Type number: VZ 502 |
18.90 € | |

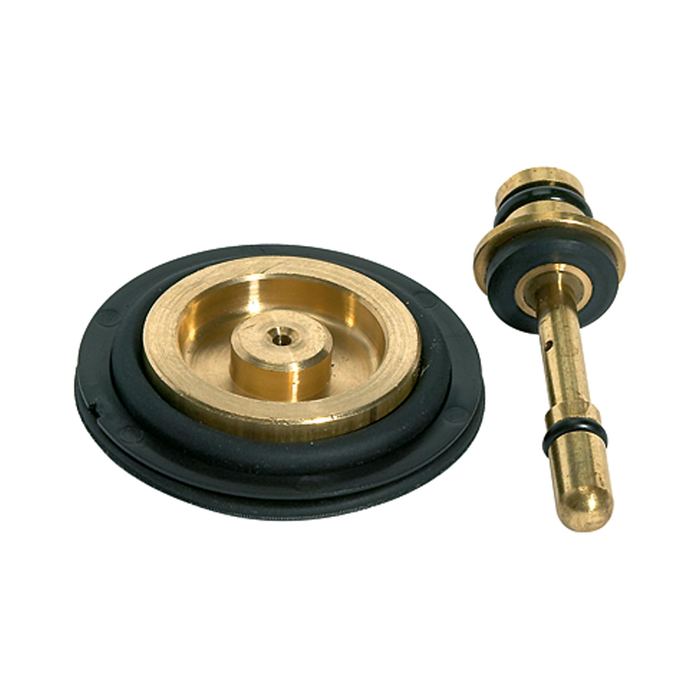

![[100650] RIEGLER Wear part set for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140085/image_128/%5B100650%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=dcadeeb)
|
Type number: VZ 782 |
22.31 € | |
