RIEGLER Filter »Standard-mini« with PC container, 8 µm, Size 0, G 1/8
Type number: 640.106 K-HA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard-mini" filter made of die-cast zinc, painted silver, for compressed air treatment - type 640.106 K-HA
The RIEGLER "Standard-mini" filter, polycarbonate container, 8 µm, BG 0, G 1/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/8 - suitable for common industry standards. The flow rate is 800 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 8 µm, polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard mini |
| Container | Polycarbonate container |
| Filter fineness | 8 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/8 |
| Flow rate | 800 l/min |
| Condensate drain | semi-automatic |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 112 mm |
| C | 10 mm |
| D | 102 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

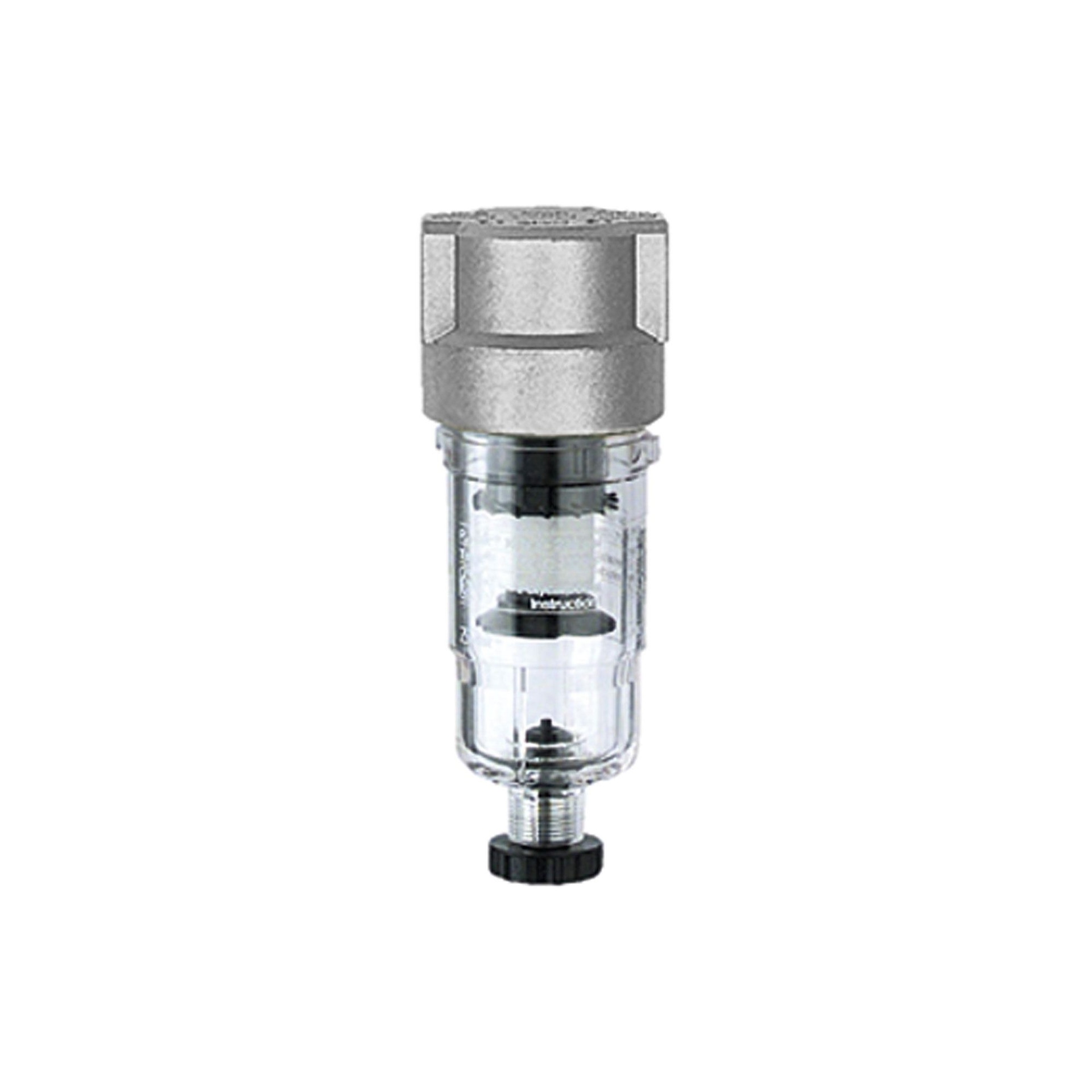

![[100787] RIEGLER Filter »Standard-mini« with PC container, 8 µm, Size 0, G 1/4](/web/image/product.template/140223/image_128/%5B100787%5D%20RIEGLER%20Filter%20%C2%BBStandard-mini%C2%AB%20with%20PC%20container%2C%208%20%C2%B5m%2C%20Size%200%2C%20G%201-4?unique=ae67013)
|
