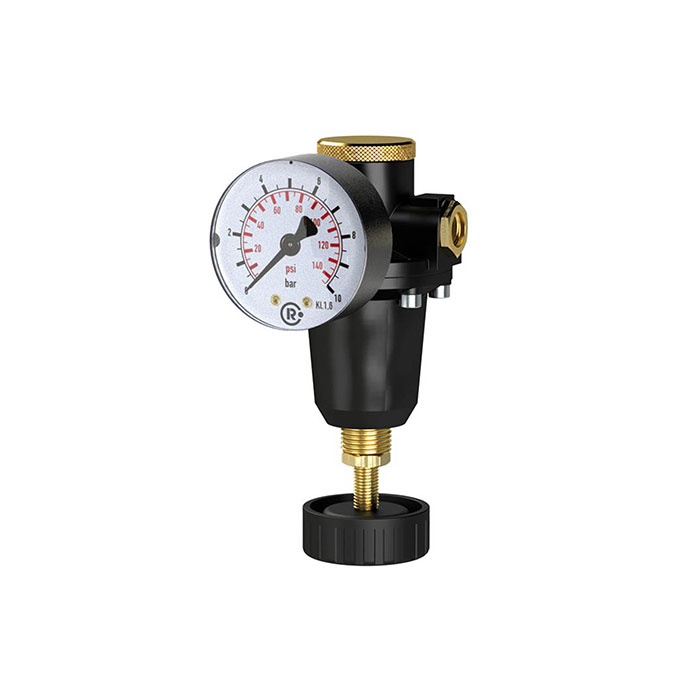

RIEGLER Constant pressure regulator, Size 1, G 1/4, 0.5 - 10 bar
Type number: 737.303
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Constant pressure regulator incl. pressure gauge, BG 1, G 1/4, PE max. 25 bar, medium temperature max. 90 °C, control range 0.5 - 10 bar
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | other |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| Thread | G 1/4 |
| Flow rate | 2000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| DN | 10 |
| BG | 1 |
| A | 77 mm |
| B | 165 mm |
| C | 33 mm |
| D | 132 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100872] RIEGLER Constant pressure regulator, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/140309/image_128/%5B100872%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=d30edfb)
|
Type number: 737.304 |
112.31 € | |
![[100870] RIEGLER Constant pressure regulator, Size 1, G 1/4, 0.5 - 6 bar](/web/image/product.template/140307/image_128/%5B100870%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%206%20bar?unique=92272ac)
|
Type number: 737.302 |
112.31 € | |
![[100875] RIEGLER Constant pressure regulator, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/140312/image_128/%5B100875%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=c5a9bf7)
|
Type number: 737.313 |
112.31 € | |
![[100876] RIEGLER Constant pressure regulator, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/140313/image_128/%5B100876%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=d0ef8bb)
|
Type number: 737.314 |
112.31 € | |
![[100874] RIEGLER Constant pressure regulator, Size 1, G 3/8, 0.5 - 6 bar](/web/image/product.template/140311/image_128/%5B100874%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%206%20bar?unique=1bf2e10)
|
Type number: 737.312 |
112.31 € | |
![[100883] RIEGLER Constant pressure regulator, Size 2, G 1/2, 0.5 - 10 bar](/web/image/product.template/140320/image_128/%5B100883%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=c4ebe44)
|
Type number: 737.503 |
73.89 € | |
![[100884] RIEGLER Constant pressure regulator, Size 2, G 1/2, 0.5 - 16 bar](/web/image/product.template/140321/image_128/%5B100884%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=7f41987)
|
Type number: 737.504 |
75.12 € | |
![[100882] RIEGLER Constant pressure regulator, Size 2, G 1/2, 0.5 - 6 bar](/web/image/product.template/140319/image_128/%5B100882%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%206%20bar?unique=accd769)
|
Type number: 737.502 |
73.89 € | |
![[100879] RIEGLER Constant pressure regulator, Size 2, G 3/8, 0.5 - 10 bar](/web/image/product.template/140316/image_128/%5B100879%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%202%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=7d68c5c)
|
Type number: 737.403 |
73.89 € | |
![[100878] RIEGLER Constant pressure regulator, Size 2, G 3/8, 0.5 - 6 bar](/web/image/product.template/140315/image_128/%5B100878%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%202%2C%20G%203-8%2C%200.5%20-%206%20bar?unique=95334db)
|
Type number: 737.402 |
73.89 € | |
![[100892] RIEGLER Constant pressure regulator, Size 3, G 1, 0.5 - 10 bar](/web/image/product.template/140329/image_128/%5B100892%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%201%2C%200.5%20-%2010%20bar?unique=4707830)
|
Type number: 737.703 |
236.30 € | |
![[100893] RIEGLER Constant pressure regulator, Size 3, G 1, 0.5 - 16 bar](/web/image/product.template/140330/image_128/%5B100893%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%201%2C%200.5%20-%2016%20bar?unique=4e84993)
|
Type number: 737.704 |
247.79 € | |
![[100894] RIEGLER Constant pressure regulator, Size 3, G 1, 0.5 - 25 bar](/web/image/product.template/140331/image_128/%5B100894%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%201%2C%200.5%20-%2025%20bar?unique=9e3b59f)
|
Type number: 737.705 |
240.11 € | |
![[100891] RIEGLER Constant pressure regulator, Size 3, G 1, 0.5 - 6 bar](/web/image/product.template/140328/image_128/%5B100891%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%201%2C%200.5%20-%206%20bar?unique=f30d5a1)
|
Type number: 737.702 |
240.11 € | |
![[100887] RIEGLER Constant pressure regulator, Size 3, G 3/4, 0.5 - 10 bar](/web/image/product.template/140324/image_128/%5B100887%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=d86cabe)
|
Type number: 737.603 |
235.20 € | |
![[100888] RIEGLER Constant pressure regulator, Size 3, G 3/4, 0.5 - 16 bar](/web/image/product.template/140325/image_128/%5B100888%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=e2f6acc)
|
Type number: 737.604 |
196.00 € | |
![[100889] RIEGLER Constant pressure regulator, Size 3, G 3/4, 0.5 - 25 bar](/web/image/product.template/140326/image_128/%5B100889%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2025%20bar?unique=d552a2c)
|
Type number: 737.605 |
235.20 € | |
![[100885] RIEGLER Constant pressure regulator, Size 3, G 3/4, 0.5 - 3 bar](/web/image/product.template/140322/image_128/%5B100885%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%203%20bar?unique=8f6d29f)
|
Type number: 737.601 |
233.25 € | |
![[100886] RIEGLER Constant pressure regulator, Size 3, G 3/4, 0.5 - 6 bar](/web/image/product.template/140323/image_128/%5B100886%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%206%20bar?unique=0fd7de0)
|
Type number: 737.602 |
227.42 € | |
![[100902] RIEGLER Constant pressure regulator, Size 4, G 1 1/2, 0.5 - 10 bar](/web/image/product.template/140339/image_128/%5B100902%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%204%2C%20G%201%201-2%2C%200.5%20-%2010%20bar?unique=723ddf3)
|
Type number: 737.903 |
376.47 € | |
![[100903] RIEGLER Constant pressure regulator, Size 4, G 1 1/2, 0.5 - 16 bar](/web/image/product.template/140340/image_128/%5B100903%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%204%2C%20G%201%201-2%2C%200.5%20-%2016%20bar?unique=2120489)
|
Type number: 737.904 |
376.47 € | |
![[100904] RIEGLER Constant pressure regulator, Size 4, G 1 1/2, 0.5 - 25 bar](/web/image/product.template/140341/image_128/%5B100904%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%204%2C%20G%201%201-2%2C%200.5%20-%2025%20bar?unique=20eeb51)
|
Type number: 737.905 |
376.47 € | |
![[100901] RIEGLER Constant pressure regulator, Size 4, G 1 1/2, 0.5 - 6 bar](/web/image/product.template/140338/image_128/%5B100901%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%204%2C%20G%201%201-2%2C%200.5%20-%206%20bar?unique=86b3f60)
|
Type number: 737.902 |
376.47 € | |
![[100897] RIEGLER Constant pressure regulator, Size 4, G 1 1/4, 0.5 - 10 bar](/web/image/product.template/140334/image_128/%5B100897%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%204%2C%20G%201%201-4%2C%200.5%20-%2010%20bar?unique=cb46781)
|
Type number: 737.803 |
355.51 € | |
![[100898] RIEGLER Constant pressure regulator, Size 4, G 1 1/4, 0.5 - 16 bar](/web/image/product.template/140335/image_128/%5B100898%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%204%2C%20G%201%201-4%2C%200.5%20-%2016%20bar?unique=cfea719)
|
Type number: 737.804 |
355.51 € | |
![[100899] RIEGLER Constant pressure regulator, Size 4, G 1 1/4, 0.5 - 25 bar](/web/image/product.template/140336/image_128/%5B100899%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%204%2C%20G%201%201-4%2C%200.5%20-%2025%20bar?unique=797ca8b)
|
Type number: 737.805 |
355.51 € | |
![[100896] RIEGLER Constant pressure regulator, Size 4, G 1 1/4, 0.5 - 6 bar](/web/image/product.template/140333/image_128/%5B100896%5D%20RIEGLER%20Constant%20pressure%20regulator%2C%20Size%204%2C%20G%201%201-4%2C%200.5%20-%206%20bar?unique=0430698)
|
Type number: 737.802 |
342.71 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

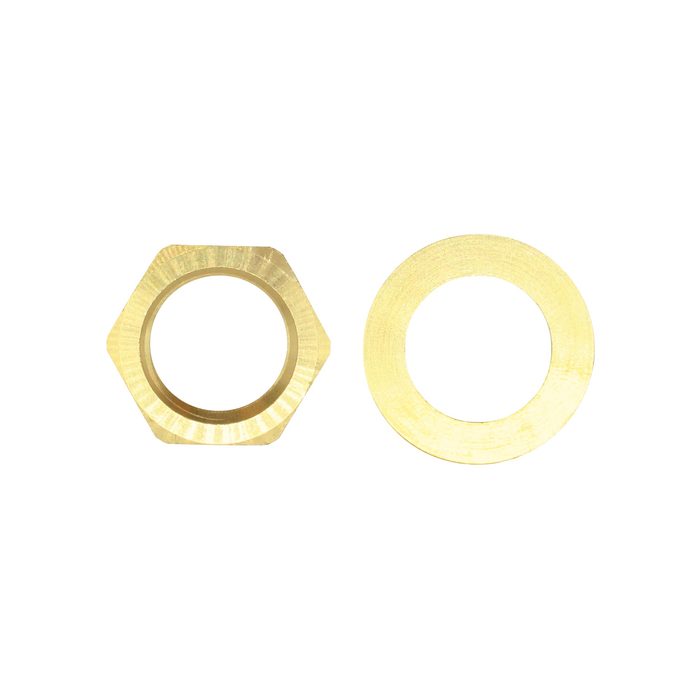

![[100831] RIEGLER Nut M20x1.5 and washer, for series »Standard«](/web/image/product.template/140267/image_128/%5B100831%5D%20RIEGLER%20Nut%20M20x1.5%20and%20washer%2C%20for%20series%20%C2%BBStandard%C2%AB?unique=7b1bd00)
|
Type number: 74/1 |
2.45 € | |

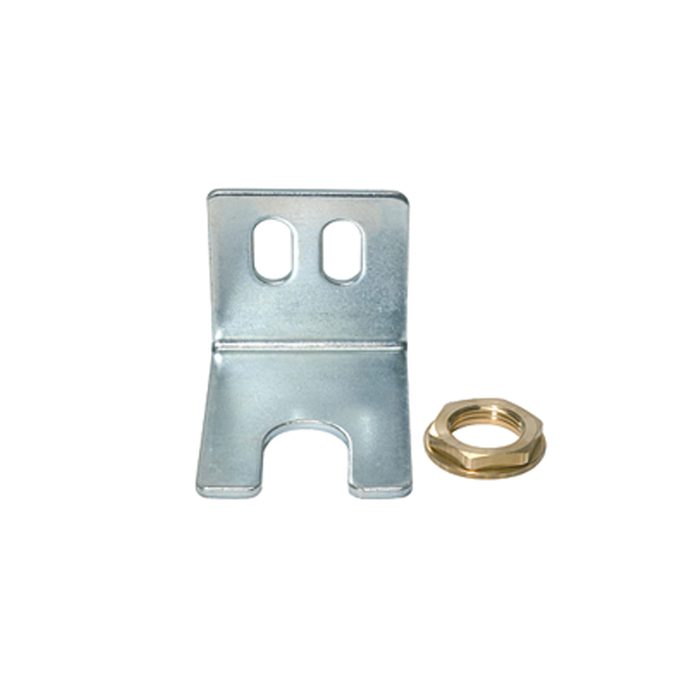

![[100836] RIEGLER Mounting bracket with nut and washer](/web/image/product.template/140272/image_128/%5B100836%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20and%20washer?unique=afa30ef)
|
Type number: 75/2 |
4.31 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

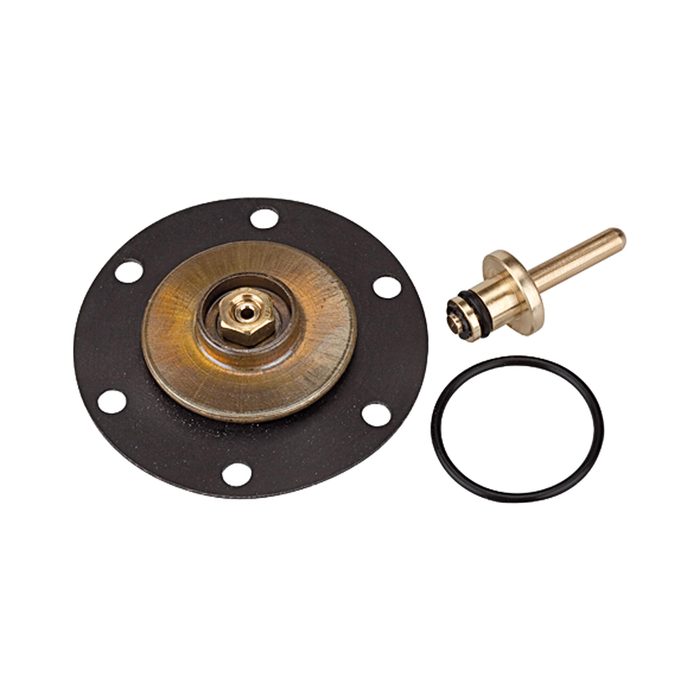

![[100905] RIEGLER Wear part set, for constant pressure regulator, Size 1](/web/image/product.template/140342/image_128/%5B100905%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20constant%20pressure%20regulator%2C%20Size%201?unique=2412671)
|
