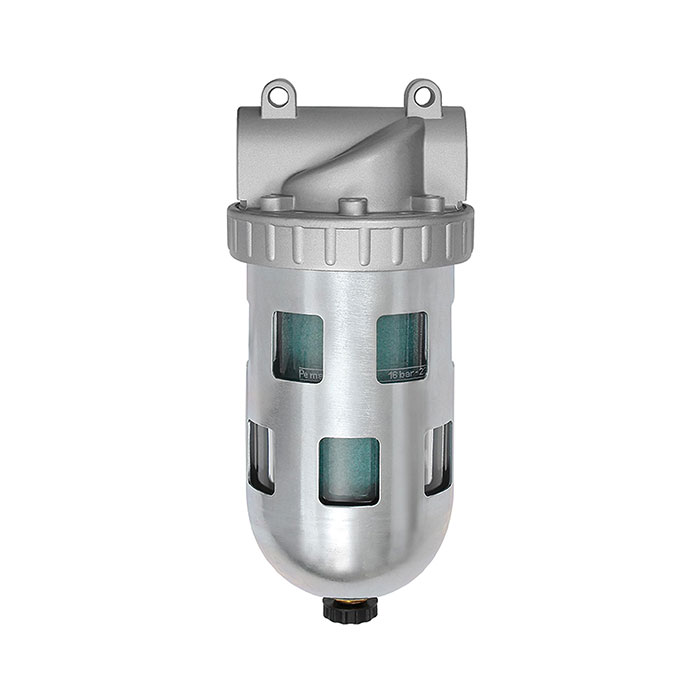

RIEGLER Special filter »Standard« Protective cage, 0.01 µm, Size 2, G 3/8
Type number: 675 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Special filter "Standard" with PC container and protective cage, 0.01 µm, BG 2, G 3/8, PE max. 16 bar, drain valve: HA
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 0.01 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Efficiency | 999.99 |
| Thread | G 3/8 |
| Flow rate | 720 l/min |
| Condensate drain | semi-automatic |
| DN | 10 |
| BG | 2 |
| A | 70 mm |
| C | 16 mm |
| D | 145.7 mm |
| H | 50 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100994] RIEGLER Special filter »Standard« Protective cage, 0.01 µm, Size 1, G 1/4](/web/image/product.template/140430/image_128/%5B100994%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=b4845b6)
|
Type number: 673 S |
58.74 € | |
![[100995] RIEGLER Special filter »Standard« Protective cage, 0.01 µm, Size 1, G 3/8](/web/image/product.template/140431/image_128/%5B100995%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=f269fbc)
|
Type number: 674 S |
68.58 € | |
![[100997] RIEGLER Special filter »Standard« Protective cage, 0.01 µm, Size 3, G 1/2](/web/image/product.template/140433/image_128/%5B100997%5D%20RIEGLER%20Special%20filter%20%C2%BBStandard%C2%AB%20Protective%20cage%2C%200.01%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=3b1e4fc)
|
Type number: 685 S |
108.90 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

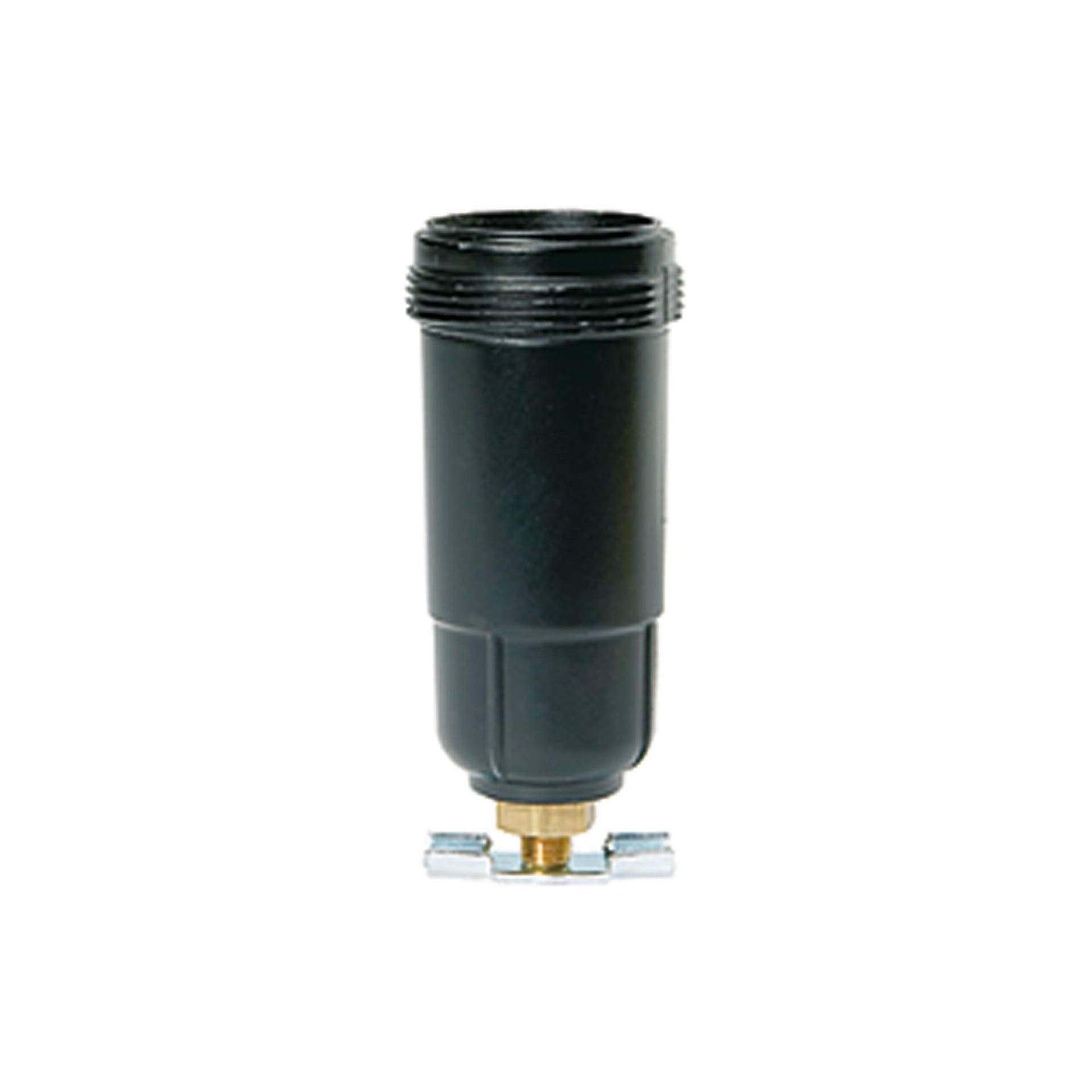

![[100947] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140383/image_128/%5B100947%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=c451e30)
|
Type number: 650/11 |
26.33 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=270c1de)
|
Type number: H 801 |
4.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

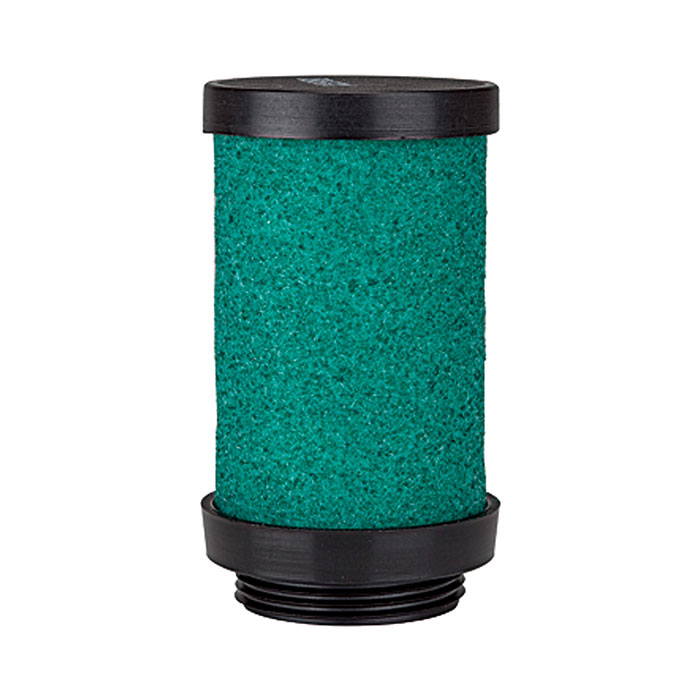

![[101007] RIEGLER Filter element 0.01 µm, Borosilicate-Aluminium](/web/image/product.template/140443/image_128/%5B101007%5D%20RIEGLER%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate-Aluminium?unique=a3671fa)
|
Type number: 360/2 |
35.46 € | |

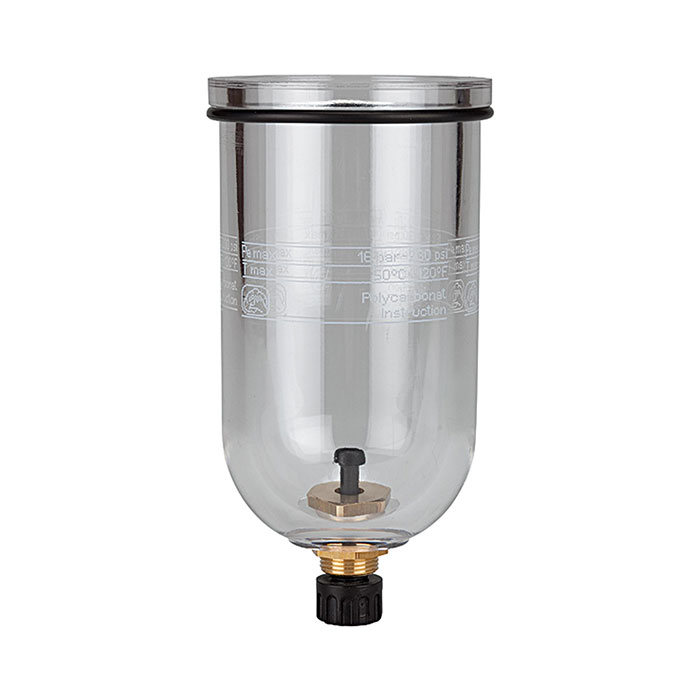

![[100946] RIEGLER PC container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140382/image_128/%5B100946%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=ddf25fe)
|
Type number: 650/1-HA |
18.58 € | |
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=49f5a49)
|
Type number: SK 02 |
20.37 € | |
