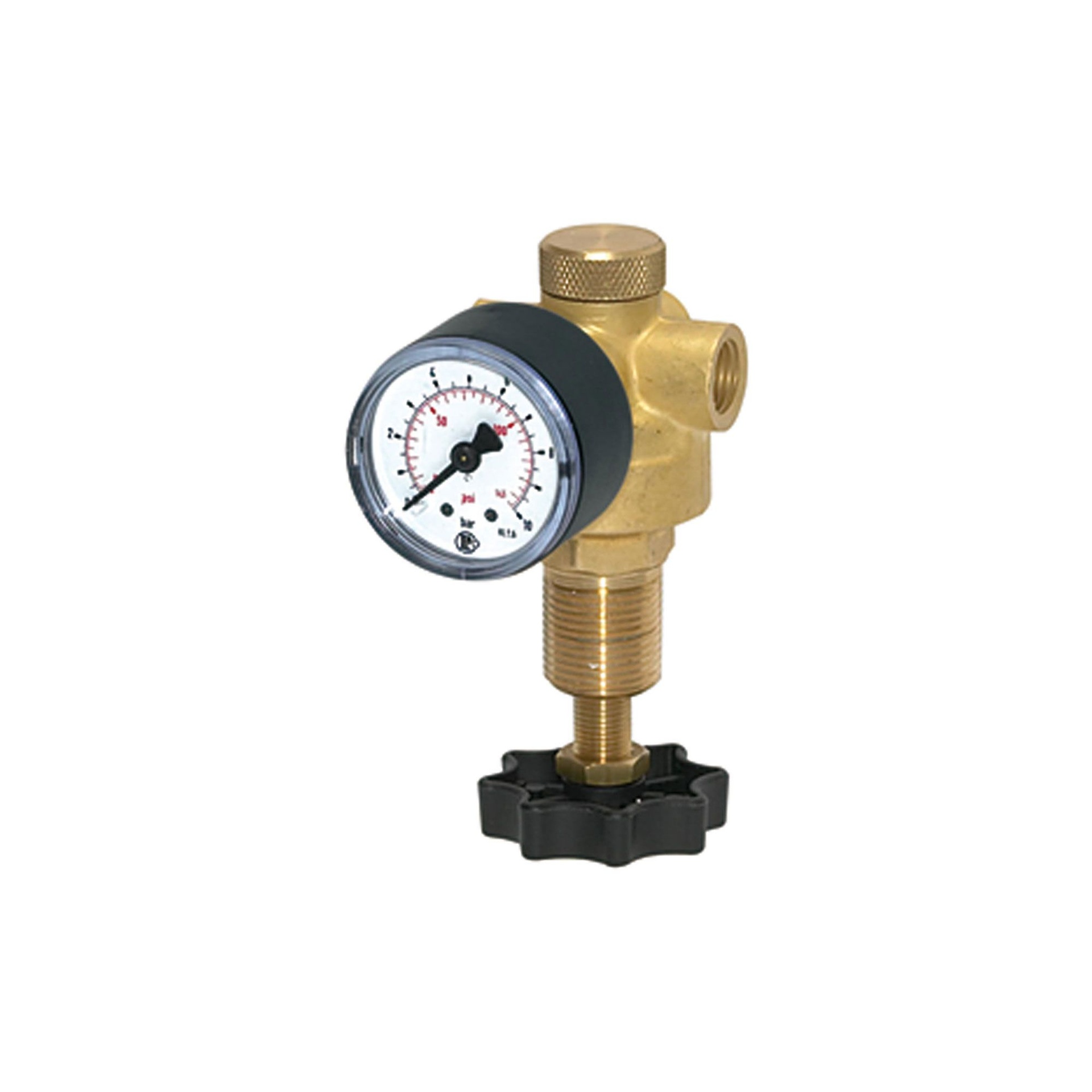

RIEGLER Pressure regulator for water, pressure gauge, G 1/4, 0.5 - 10 bar
Type number: 484.25 C
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator for water, incl. pressure gauge, G 1/4, control range 0.5 - 10 bar, max. inlet pressure 40 bar, temp. 5 °C to 90 °C
| Inlet pressure max. | 40 bar |
| Temperature range min. | 5 °C |
| Temperature range max. | 90 °C |
| Medium | Water, nitrogen and argon |
| Housing | Brass |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 7 bar, P<sub>2</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Handwheel | Plastic |
| Thread | G 1/4 |
| Flow rate | 2.5 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| A | 45 mm |
| B | 104 mm |
| C | 23 mm |
| D | 81 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101312] RIEGLER Pressure regulator for water, pressure gauge, G 1, 0.5 - 10 bar](/web/image/product.template/169286/image_128/%5B101312%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201%2C%200.5%20-%2010%20bar?unique=a48a560)
|
Type number: 484.45 C |
267.10 € | |
![[101311] RIEGLER Pressure regulator for water, pressure gauge, G 1, 0.5 - 6 bar](/web/image/product.template/169285/image_128/%5B101311%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201%2C%200.5%20-%206%20bar?unique=bd1dcba)
|
Type number: 484.45 B |
267.10 € | |
![[101314] RIEGLER Pressure regulator for water, pressure gauge, G 1 1/2, 0.5-10 bar](/web/image/product.template/169288/image_128/%5B101314%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201%201-2%2C%200.5-10%20bar?unique=cce58be)
|
Type number: 484.55 C |
436.77 € | |
![[101313] RIEGLER Pressure regulator for water, pressure gauge, G 1 1/2, 0.5-6 bar](/web/image/product.template/169287/image_128/%5B101313%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201%201-2%2C%200.5-6%20bar?unique=792ed9e)
|
Type number: 484.55 B |
553.86 € | |
![[101310] RIEGLER Pressure regulator for water, pressure gauge, G 1/2, 0.5 - 10 bar](/web/image/product.template/169284/image_128/%5B101310%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=db7a92e)
|
Type number: 484.35 C |
161.49 € | |
![[101309] RIEGLER Pressure regulator for water, pressure gauge, G 1/2, 0.5 - 6 bar](/web/image/product.template/169283/image_128/%5B101309%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201-2%2C%200.5%20-%206%20bar?unique=e062f6e)
|
Type number: 484.35 B |
161.49 € | |
![[101307] RIEGLER Pressure regulator for water, pressure gauge, G 1/4, 0.5 - 6 bar](/web/image/product.template/169281/image_128/%5B101307%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201-4%2C%200.5%20-%206%20bar?unique=a352eff)
|
Type number: 484.25 B |
89.40 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

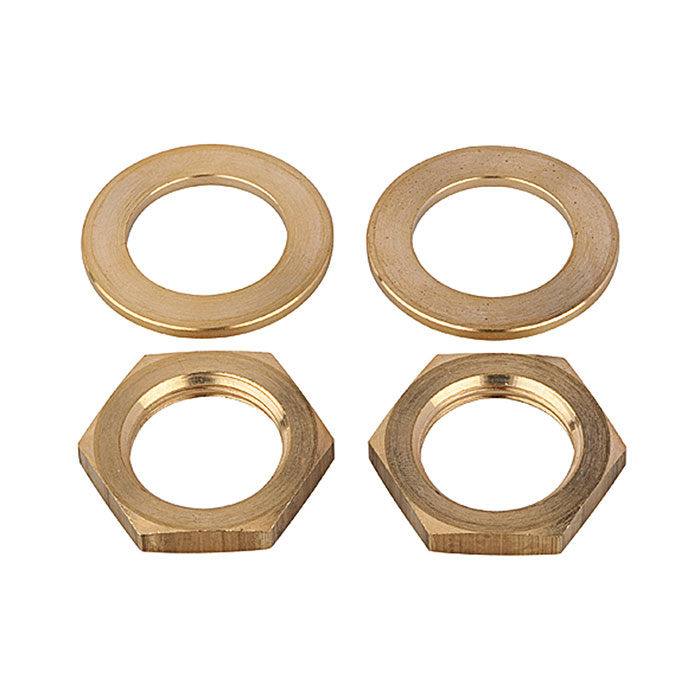

![[101315] RIEGLER 2 nuts M20x1.5 and 2 washers, for pressure reg. for water, G 1/4](/web/image/product.template/169289/image_128/%5B101315%5D%20RIEGLER%202%20nuts%20M20x1.5%20and%202%20washers%2C%20for%20pressure%20reg.%20for%20water%2C%20G%201-4?unique=9ba65dd)
|
Type number: 484.201 |
5.93 € | |
![[101316] RIEGLER Mounting bracket, for pressure regulator for water, G 1/4](/web/image/product.template/169290/image_128/%5B101316%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20pressure%20regulator%20for%20water%2C%20G%201-4?unique=4d25097)
|
Type number: 484.202 |
13.59 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101318] RIEGLER Diaphragm complete, for pressure regulator for water, G 1/4](/web/image/product.template/169292/image_128/%5B101318%5D%20RIEGLER%20Diaphragm%20complete%2C%20for%20pressure%20regulator%20for%20water%2C%20G%201-4?unique=408ff55)
|
Type number: 484.204 |
7.46 € | |
![[101317] RIEGLER Sealing cone assembly, for pressure regulator for water, G 1/4](/web/image/product.template/169291/image_128/%5B101317%5D%20RIEGLER%20Sealing%20cone%20assembly%2C%20for%20pressure%20regulator%20for%20water%2C%20G%201-4?unique=e376f3e)
|
Type number: 484.203 |
11.54 € | |
