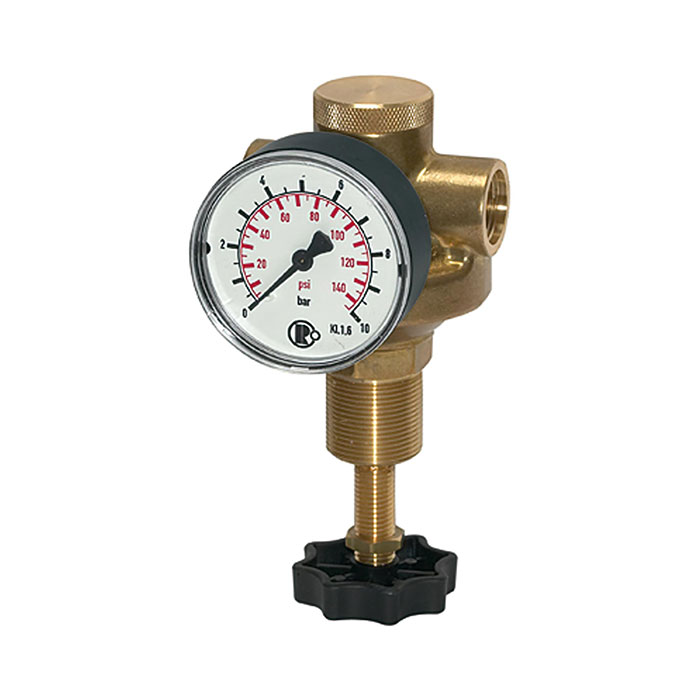

RIEGLER Pressure regulator for water, pressure gauge, G 1/2, 0.5 - 10 bar
Type number: 484.35 C
EAN: 4047322209809
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator for water, incl. pressure gauge, G 1/2, control range 0.5 - 10 bar, max. inlet pressure 40 bar, temp. 5 °C to 90 °C
| Inlet pressure max. | 40 bar |
| Temperature range min. | 5 °C |
| Temperature range max. | 90 °C |
| Medium | Water, nitrogen and argon |
| Housing | Brass |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 7 bar, P<sub>2</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Handwheel | Plastic |
| Thread | G 1/2 |
| Flow rate | 15 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| A | 72 mm |
| B | 153 mm |
| C | 30 mm |
| D | 123 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
