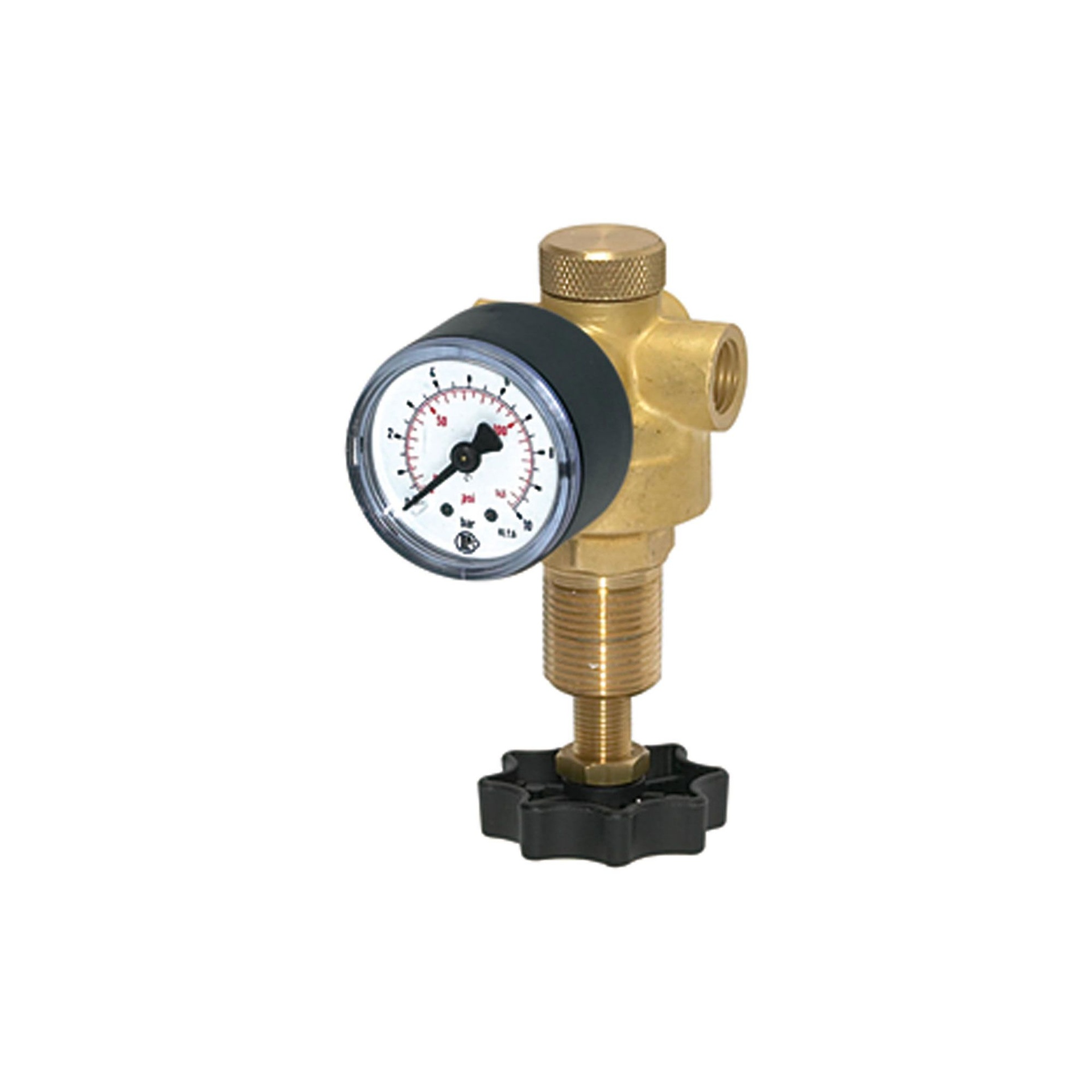

RIEGLER Pressure regulator for water, pressure gauge, G 1/4, 0.5 - 6 bar
Type number: 484.25 B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for water made of brass, 0.5 bar - Type 484.25 B
The RIEGLER pressure regulator for water, incl. pressure gauge, G 1/4, 0.5 - 6 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass with NBR seals. The control range extends from 0.5 bar to 6 bar with a maximum inlet pressure of 40 bar. The temperature range is between 5 °C and 90 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for water, nitrogen and argon. The flow rate is 2.5 l/min (at P1 = 7 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 40 bar |
| Temperature range min. | 5 °C |
| Temperature range max. | 90 °C |
| Medium | Water, nitrogen and argon |
| Housing | Brass |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 7 bar, P<sub>2</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Handwheel | Plastic |
| Thread | G 1/4 |
| Flow rate | 2.5 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 6 bar |
| A | 45 mm |
| B | 104 mm |
| C | 23 mm |
| D | 81 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101312] RIEGLER Pressure regulator for water, pressure gauge, G 1, 0.5 - 10 bar](/web/image/product.template/169286/image_128/%5B101312%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201%2C%200.5%20-%2010%20bar?unique=23064b7)
|
Type number: 484.45 C |
267.08 € | |
![[101311] RIEGLER Pressure regulator for water, pressure gauge, G 1, 0.5 - 6 bar](/web/image/product.template/169285/image_128/%5B101311%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201%2C%200.5%20-%206%20bar?unique=4c67a28)
|
Type number: 484.45 B |
267.08 € | |
![[101314] RIEGLER Pressure regulator for water, pressure gauge, G 1 1/2, 0.5-10 bar](/web/image/product.template/169288/image_128/%5B101314%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201%201-2%2C%200.5-10%20bar?unique=23064b7)
|
Type number: 484.55 C |
436.77 € | |
![[101313] RIEGLER Pressure regulator for water, pressure gauge, G 1 1/2, 0.5-6 bar](/web/image/product.template/169287/image_128/%5B101313%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201%201-2%2C%200.5-6%20bar?unique=23064b7)
|
Type number: 484.55 B |
398.78 € | |
![[101310] RIEGLER Pressure regulator for water, pressure gauge, G 1/2, 0.5 - 10 bar](/web/image/product.template/169284/image_128/%5B101310%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=23064b7)
|
Type number: 484.35 C |
116.27 € | |
![[101309] RIEGLER Pressure regulator for water, pressure gauge, G 1/2, 0.5 - 6 bar](/web/image/product.template/169283/image_128/%5B101309%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201-2%2C%200.5%20-%206%20bar?unique=23064b7)
|
Type number: 484.35 B |
116.27 € | |
![[101308] RIEGLER Pressure regulator for water, pressure gauge, G 1/4, 0.5 - 10 bar](/web/image/product.template/169282/image_128/%5B101308%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=e8d3a71)
|
Type number: 484.25 C |
83.05 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

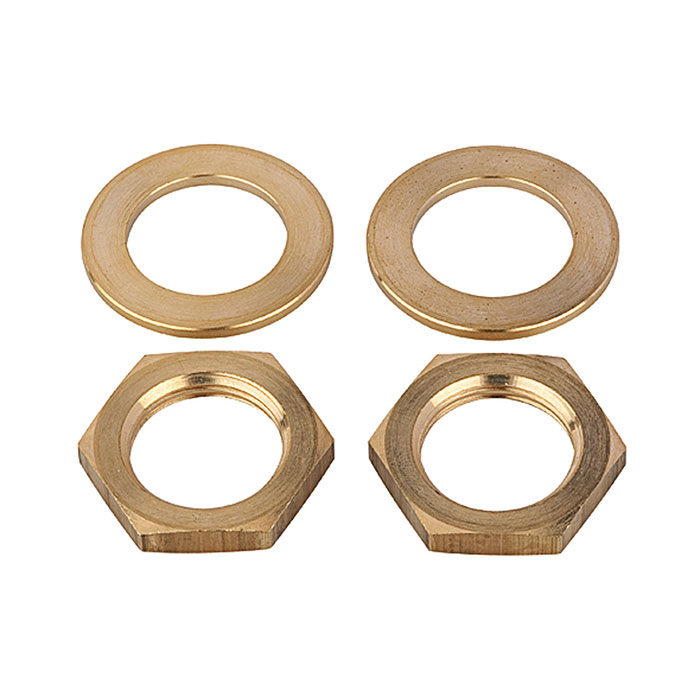

![[101315] RIEGLER 2 nuts M20x1.5 and 2 washers, for pressure reg. for water, G 1/4](/web/image/product.template/169289/image_128/%5B101315%5D%20RIEGLER%202%20nuts%20M20x1.5%20and%202%20washers%2C%20for%20pressure%20reg.%20for%20water%2C%20G%201-4?unique=922f921)
|
Type number: 484.201 |
5.91 € | |
![[101316] RIEGLER Mounting bracket, for pressure regulator for water, G 1/4](/web/image/product.template/169290/image_128/%5B101316%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20pressure%20regulator%20for%20water%2C%20G%201-4?unique=cf910cc)
|
Type number: 484.202 |
13.58 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101318] RIEGLER Diaphragm complete, for pressure regulator for water, G 1/4](/web/image/product.template/169292/image_128/%5B101318%5D%20RIEGLER%20Diaphragm%20complete%2C%20for%20pressure%20regulator%20for%20water%2C%20G%201-4?unique=b1ed01e)
|
Type number: 484.204 |
7.46 € | |

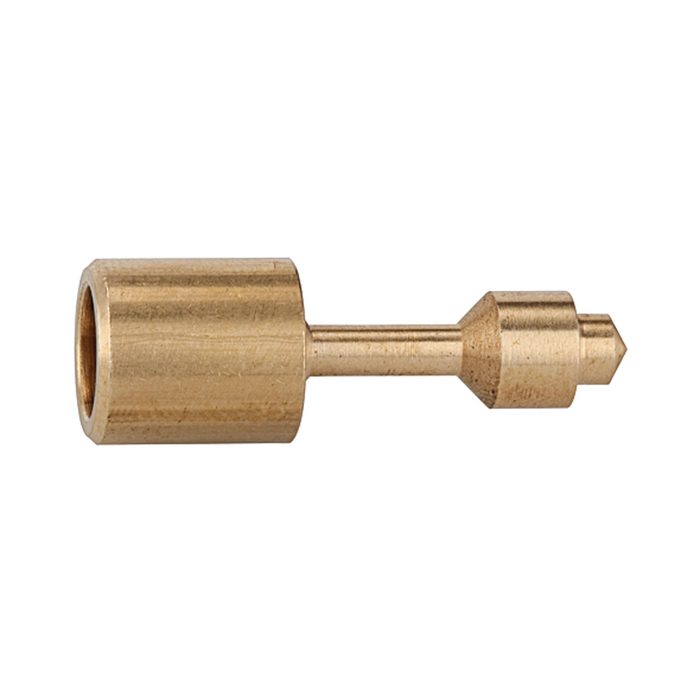

![[101317] RIEGLER Sealing cone assembly, for pressure regulator for water, G 1/4](/web/image/product.template/169291/image_128/%5B101317%5D%20RIEGLER%20Sealing%20cone%20assembly%2C%20for%20pressure%20regulator%20for%20water%2C%20G%201-4?unique=b93495b)
|
Type number: 484.203 |
11.53 € | |
