RIEGLER Pressure regulator »Saxonia« for potable water, DVGW tested, R 1
Type number: 100.33
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator "Saxonia" for drinking water made of brass, 1.5 bar - Type 100.33
The RIEGLER "Saxonia" pressure regulator for drinking water, DVGW-tested, R 1 reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass with NBR seals. The control range extends from 1.5 bar to 6 bar with a maximum inlet pressure of 16 bar. The ambient temperature is between 5 °C and 40 °C. Connection thread R 1 - suitable for common industry standards. Suitable for drinking water. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Medium | Drinking water |
| Housing | Brass |
| Sealing material | NBR |
| Series | Saxonia |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 40 °C |
| Spring cover | Plastic |
| Sieve cup | Plastic, with setting scale for back pressure |
| Water temperature min. | 5 °C |
| Water temperature max. | 30 °C |
| Thread | R 1 |
| Control range min. | 1.5 bar |
| Control range max. | 6 bar |
| Flow rate kvs-value | 5.3 m³/h |
| DN | 25 |
| A | 100 mm |
| B | 184 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101403] RIEGLER Pressure regulator »Saxonia«, potable water, DVGW tested, R 1 1/4](/web/image/product.template/169377/image_128/%5B101403%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBSaxonia%C2%AB%2C%20potable%20water%2C%20DVGW%20tested%2C%20R%201%201-4?unique=23064b7)
|
Type number: 100.34 |
198.91 € | |

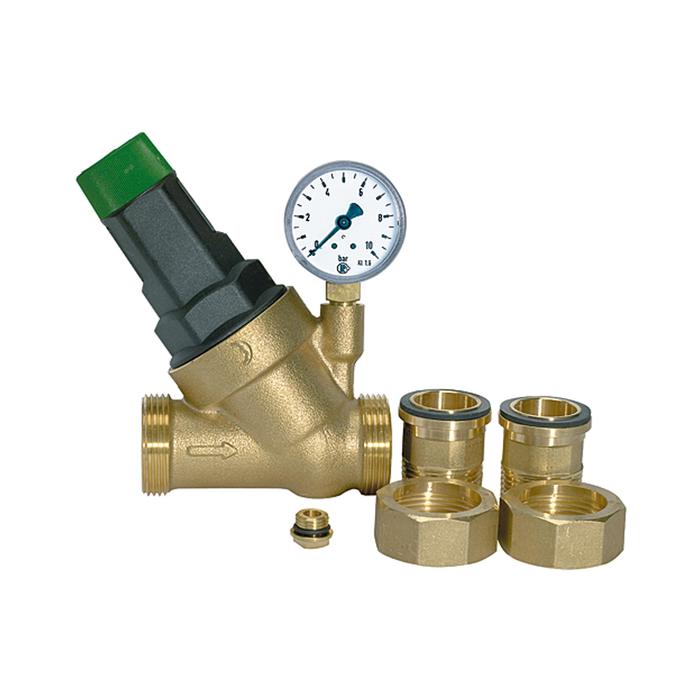

![[101401] RIEGLER Pressure regulator »Saxonia«, potable water, DVGW tested, R 3/4](/web/image/product.template/169375/image_128/%5B101401%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBSaxonia%C2%AB%2C%20potable%20water%2C%20DVGW%20tested%2C%20R%203-4?unique=2dba3c5)
|
Type number: 100.32 |
125.56 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

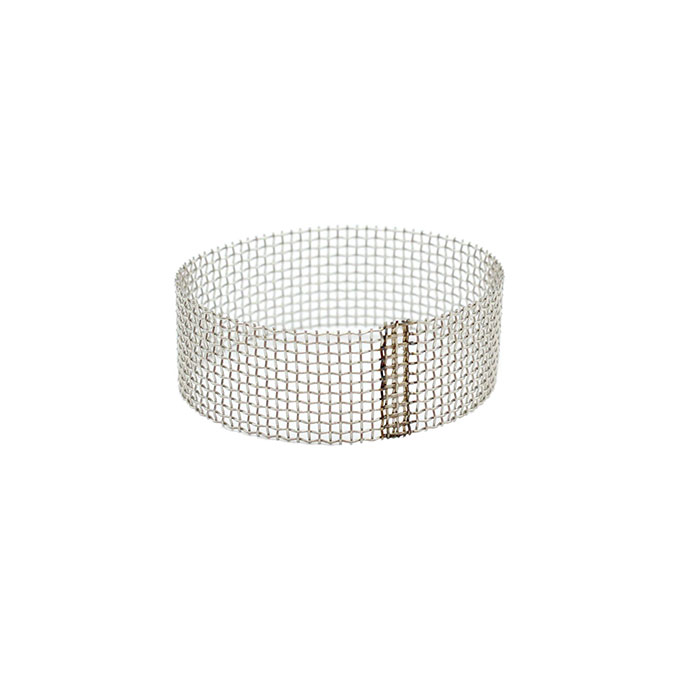

![[101406] RIEGLER Replacement sieve, for »Saxonia« for potable water, R 3/4 and R 1](/web/image/product.template/169380/image_128/%5B101406%5D%20RIEGLER%20Replacement%20sieve%2C%20for%20%C2%BBSaxonia%C2%AB%20for%20potable%20water%2C%20R%203-4%20and%20R%201?unique=b7bb1e9)
|
Type number: 100/321 |
2.51 € | |
![[101408] RIEGLER Standard pressure gauge, radial bottom, G 1/4, 0 - 10 bar, Ø 50](/web/image/product.template/169382/image_128/%5B101408%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2050?unique=351797c)
|
Type number: 106 |
6.87 € | |

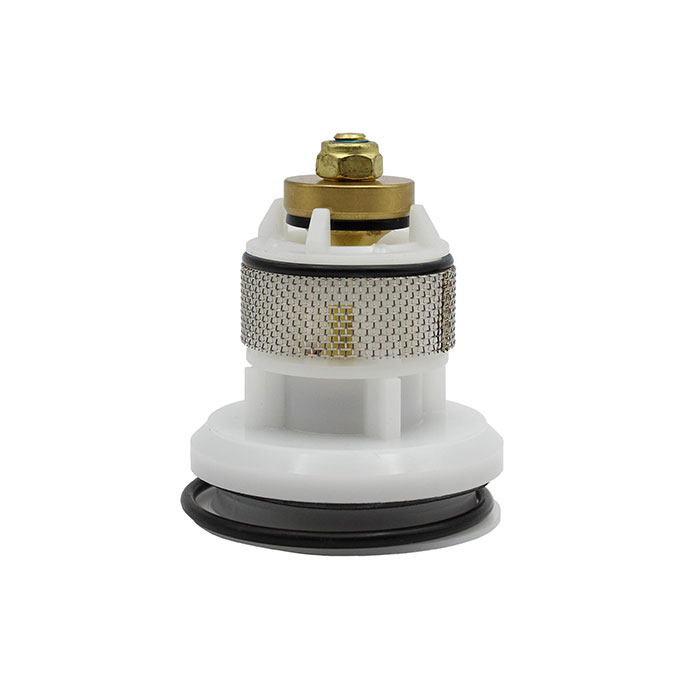

![[101404] RIEGLER Valve replacement set for »Saxonia« for potable water, R 3/4, R 1](/web/image/product.template/169378/image_128/%5B101404%5D%20RIEGLER%20Valve%20replacement%20set%20for%20%C2%BBSaxonia%C2%AB%20for%20potable%20water%2C%20R%203-4%2C%20R%201?unique=e3baca8)
|
Type number: 100/320 |
64.49 € | |
