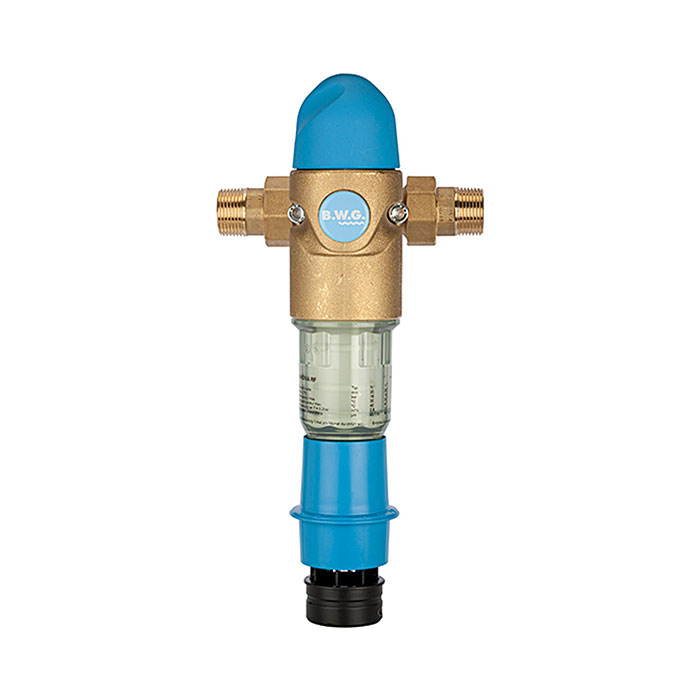

RIEGLER Back flush filter for potable water, DVGW tested, R 1
Type number: 100.43
EAN: 4047322011839
Backwash filter for drinking water, DVGW-tested, from 90 µm to 110 µm, R 1, PE max. 16 bar, ambient temp. 5 °C to 40 °C
| Inlet pressure max. | 16 bar |
| Housing | Brass |
| Flow rate measurement | with pressure drop ˆ†<sub>p</sub> = 0.2 bar |
| Filter fineness | 90 µm |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 40 °C |
| Sieve cup | impact-resistant plastic |
| Water temperature min. | 5 °C |
| Water temperature max. | 30 °C |
| Operating temperature max. | 0 °C |
| Lower passage width | 90 µm |
| Upper passage width | 110 µm |
| Thread | R 1 |
| Flow rate kvs-value | 3.5 m³/h |
| DN | 25 |
| A | 80 mm |
| B | 184 mm |
| C | 352.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
