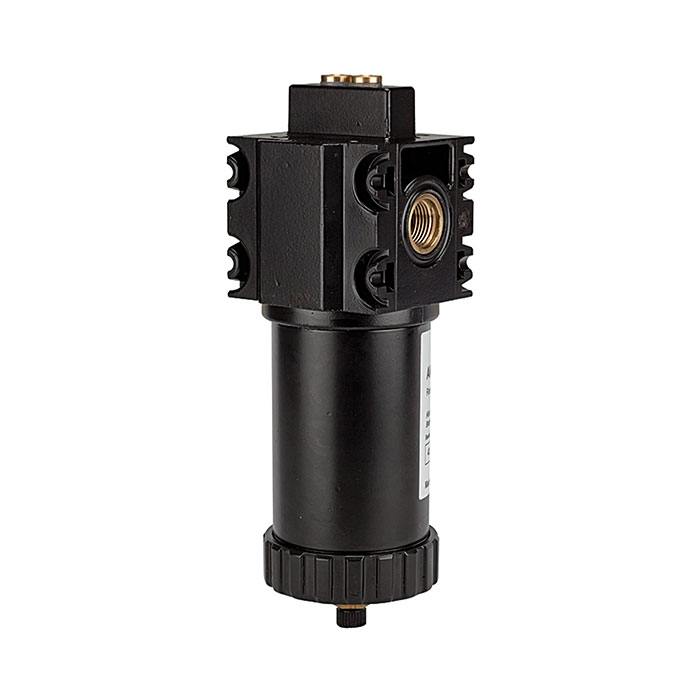

RIEGLER Active charcoal filter without differential press. gauge, G 1 1/2
Type number: 431.5511
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter without differential pressure mano. made of aluminum, for compressed air treatment - Type 431.5511
The RIEGLER activated carbon filter without differential pressure mano., 0.005 mg/m³, G 1 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 16 bar. The permissible medium temperature is between 5 °C and 60 °C. Connection thread G 1 1/2 - suitable for common industry standards. The flow rate is 4150 l/min (at P1 = 6 bar and pressure drop Δp = 0.5%). Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure min. | 4 bar |
| Inlet pressure max. | 16 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.5% |
| Filter element | Activated carbon |
| Residual oil content | 0.005 mg/m³ |
| Medium temperature min. | 5 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 5 °C |
| Ambient temperature max. | 60 °C |
| Filter container | Plastic |
| Thread | G 1 1/2 |
| Flow rate | 4150 l/min |
| A | 118 mm |
| C | 72 mm |
| D | 768 mm |
| B2 | 530 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101589] RIEGLER Active charcoal filter without differential press. gauge, G 1 1/4](/web/image/product.template/169563/image_128/%5B101589%5D%20RIEGLER%20Active%20charcoal%20filter%20without%20differential%20press.%20gauge%2C%20G%201%201-4?unique=23064b7)
|
Type number: 431.5410 |
441.84 € | |
![[101588] RIEGLER Active charcoal filter without differential pressure gauge, G 1](/web/image/product.template/169562/image_128/%5B101588%5D%20RIEGLER%20Active%20charcoal%20filter%20without%20differential%20pressure%20gauge%2C%20G%201?unique=b04985b)
|
Type number: 431.5309 |
421.27 € | |
![[101591] RIEGLER Active charcoal filter without differential pressure gauge, G 2](/web/image/product.template/169565/image_128/%5B101591%5D%20RIEGLER%20Active%20charcoal%20filter%20without%20differential%20pressure%20gauge%2C%20G%202?unique=86d95f4)
|
Type number: 431.5612 |
741.29 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

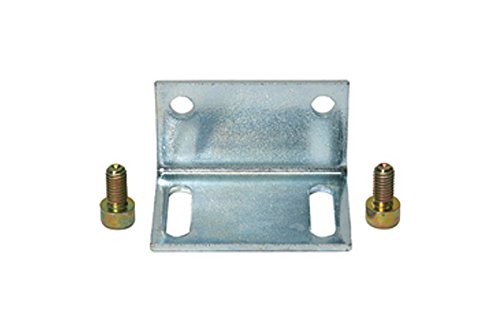

![[101170] RIEGLER Mounting set with 2 screws for G 1 to G 2](/web/image/product.template/140606/image_128/%5B101170%5D%20RIEGLER%20Mounting%20set%20with%202%20screws%20for%20G%201%20to%20G%202?unique=4c6e0cd)
|
Type number: 429/27 |
10.86 € | |
![[101599] RIEGLER Connection set for G 1 to G 2](/web/image/product.template/169573/image_128/%5B101599%5D%20RIEGLER%20Connection%20set%20for%20G%201%20to%20G%202?unique=111eb27)
|
Type number: 429/33 |
19.50 € | |

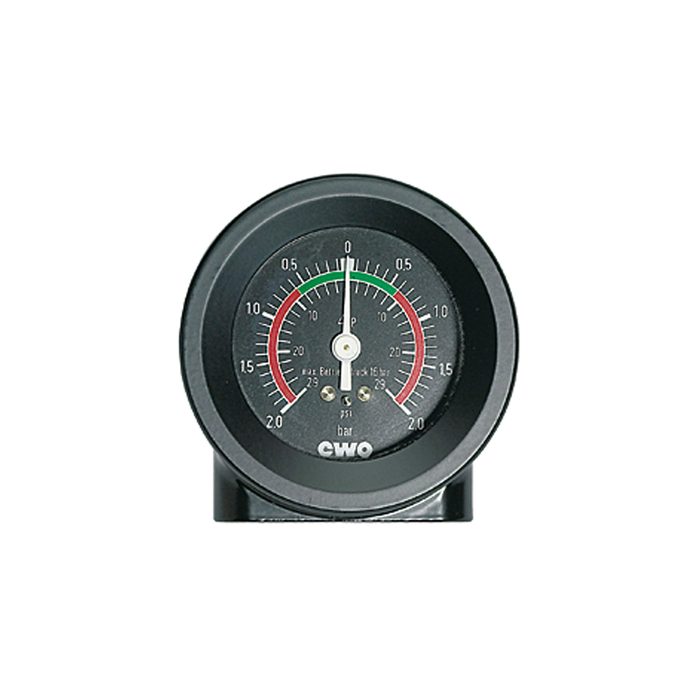

![[101601] RIEGLER Differential pressure gauge, 0 - 2 bar](/web/image/product.template/169575/image_128/%5B101601%5D%20RIEGLER%20Differential%20pressure%20gauge%2C%200%20-%202%20bar?unique=3f88a91)
|
Type number: 5429.10 |
125.14 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

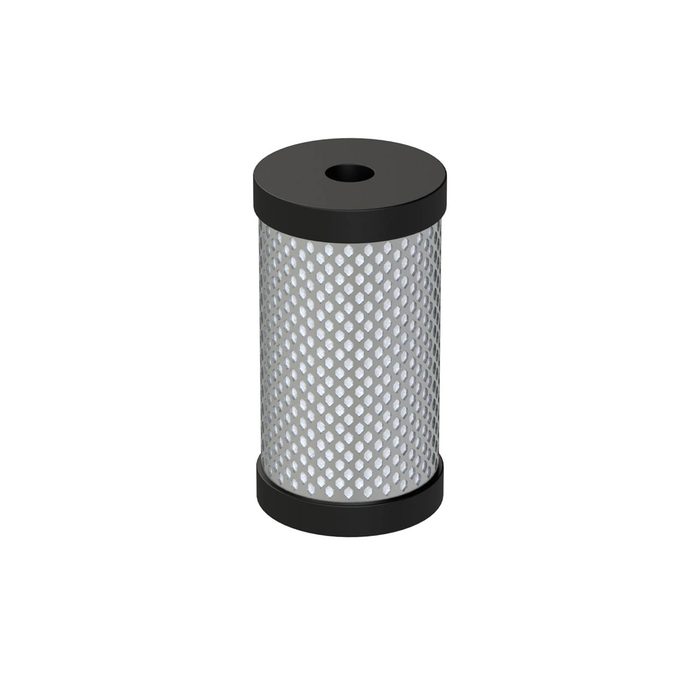

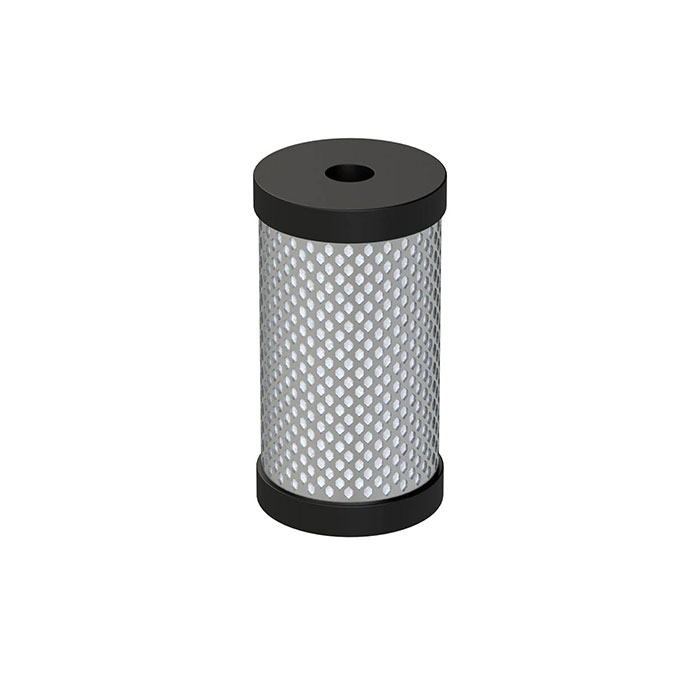

![[101613] RIEGLER Active charcoal filter element, for G 1 1/2](/web/image/product.template/169587/image_128/%5B101613%5D%20RIEGLER%20Active%20charcoal%20filter%20element%2C%20for%20G%201%201-2?unique=f910370)
|
