KAESER Screw compressor model ASK 40-8 SC2 OAL

Price:

15,281.03 €

KAESER Screw compressor model ASK 40-11 SC2 OAL
KAESER Screw compressor model ASK 40-11 SC2 OAL
15,281.03 €
15,281.03 €
KAESER Screw compressor model SK 25-8 SC2 OAL
KAESER Screw compressor model SK 25-8 SC2 OAL
11,729.95 €
11,729.95 €
10% follow-up discount + 5-year warranty

KAESER Screw compressor model ASK 40-8 SC2 OAL

https://www.filcom-technik.de/web/image/product.template/95849/image_1920?unique=9177873

Volume flow at overpressure: 4.05 l/min | Maximum overpressure: 8 bar | Rated power of drive motor: 22 KW | Electrical connection: 400 V / 3 Ph / 50 Hz

15,281.03 € 15281.03 EUR 15,281.03 € VAT Included

22,140.00 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE
KAESER Kompressoren SE

KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.


Product no. :
101907.01
Category :
Standard
Weight :
525.00 kg
Delivery area :
Germany

Equipment of KAESER screw compressors with belt drive:

Overall system
- Ready for immediate operation, fully automatic, super-silenced, vibration-insulated, powder-coated cladding parts; can be used at ambient temperatures up to +45 °C.
- Easy access to all maintenance points thanks to removable left housing cover.

Electric motor
- Premium Efficiency IE2, German quality brand, IP 54.Screw compressor block
- Compared to conventional profiles, SIGMA-PROFIL rotors require approx. 1 to 2 % less energy for the same compressed air output. 1 to 2 % less energy.

Highly effective cooling
- Dual-flow fan and separate, specially routed cooling air flows for motor, fluid/compressed air cooler and control cabinet.
- Cooling fluid and air circuit: Honeycomb intake filter, pneumatic inlet and vent valve, cooling fluid separator tank with triple separator system; safety valve, minimum pressure check valve, thermal valve and fluid filter in the cooling fluid circuit, fluid/compressed air combination cooler.

Electrical components
Control cabinet IP 54, control cabinet ventilation, automatic star-delta contactor combination, overload relay, control transformer.

Compressor control SIGMA CONTROL 2

The command center

The industry-standard control unit is equipped with a clear display and robust buttons. All relevant information is visible at a glance. The clear menu structure in combination with 3 selectable languages underlines the simple operation.

Security with RFID

SIGMA CONTROL 2 offers a high level of security thanks to the integrated RFID functionality (Radio Frequency Identification). It enables users and/or KAESER service technicians to log in securely and, in terms of operator liability, guarantees that no unauthorized person can operate the system or manipulate its settings.

Communication

SIGMA CONTROL 2 communicates internally with the compressor via inputs and outputs. The standard Ethernet interface enables integration into the SIGMA NETWORK. Connection to a network enables remote monitoring. The built-in web server allows the control panel, menu structure, operating parameters and message history to be displayed.

Update and save

Software updates and operating parameters can be installed or transferred quickly and easily via the SD card slot. This saves service costs. The SD card can also be used for (long-term) storage of important operating data.

Option "Connection to control technology prepared"

Optional (plug-in) bus communication modules (Profibus DP, Modbus-TCP, Profinet, Devicenet) enable external communication with building and control systems for remote control and remote monitoring of the compressor. Digital and analog inputs and digital outputs that can be defined via the operating unit enable the integration of external sensors and actuators.


Options

- Version with 8 bar overpressure
- Special color (RAL color / extended delivery time)
- As compressed air station (Aircenter)
- With refrigeration dryer T-system
- With frequency control

Volume flow at overpressure (m³/min) 4,05
Max. Overpressure (bar) 8
Rated power drive motor (kW) 22
Drive motor efficiency class IE3
Permissible pressure loss cooling channel (Pa) 40
Max. usable warm air volume (m³/h) 5.000
Max. usable heat output "warm air" (kW) 26,8
Max. usable heat output "warm water" (kW) 19,8
Required supply air opening (m2) 0,6
Drive motor protection class IP55
Electrical supply 400 V / 3 Ph / 50 Hz
Full load current 45 A
Fuse: Max current 50 A
Cooling fluid filling quantity (litres) 10,2
Width (mm) 800
Depth (mm) 1.110
Height (mm) 1.530
Weight (kg) 525
Compressed air connection G 1 1/4
Sound pressure level (dbA) 69
Model range - Screw compressors ASK
Refrigeration dryer option NO
KAESER Betriebsanleitung ASK
Download
KAESER Prospekt ASK
Download

Accessoires and suitable extensions

Product Price
[102120.10500] KAESER Filter adsorption model F46KA G 1 1/4"

Volumenstrom: 4,61 m³/min

697.94 €
[102123.10541] KAESER Filter Extra model F46KE G 1 1/4", ECO-DRAIN 31F

Volumenstrom: 4,61 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³

1,021.02 €

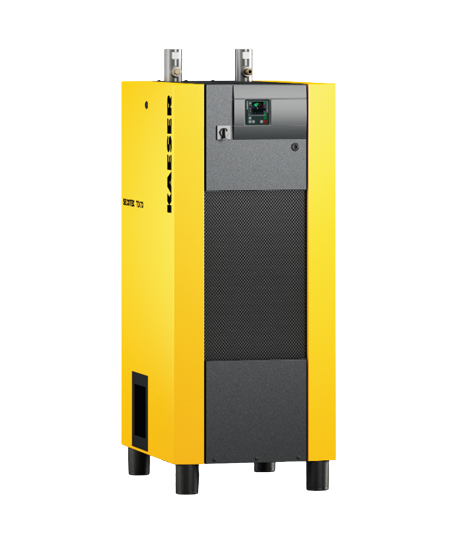

[1.2471.0] KAESER Energy-saving refrigeration dryer model TD 67

Volumenstrom: 6,70 (m³/min) | Drucktaupunkt: 3 (°C) | Kältemittel: R-513A

8,949.40 €
[3.5360.30061] KAESER Compressed air tank 2000/11 st. CE/PED

Bauform: stehend | Max. Überdruck: 11 bar | Volumen Druckluftbehälter: 2.000 ltr. | Oberflächenbeschichtung: verzinkt

5,917.28 €
[5.9900.0] KAESER Oil-water separator model Aquamat i.CF 10

max. Q in Klimazone 2: 10,3 m³/min

1,461.92 €
[920024.2] KAESER Pressure maintenance system Model DHS4.0 32G G1 1/4" PS16

KAESER DHS 4.0 pressure maintenance systems protect the treatment components and ensure reliable compressed air quality, even if the supply is completely switched off. They ensure the minimum pressure for safe operation when restarting. Thanks to the patented pulse-width modulated control system, they are optimally prepared for extreme pneumatic situations and are easy to install.

3,105.90 €
