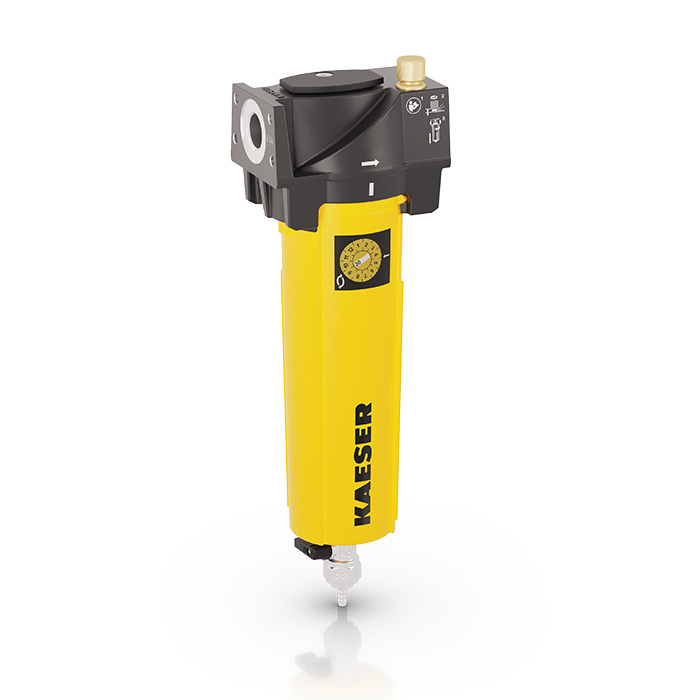

KAESER Filter adsorption model F46KA G 1 1/4"
Volumenstrom: 4,61 m³/min
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
102120.10500Category :
Compressed Air FiltersWeight :
7.20 kgDelivery area :
DeutschlandDer KAESER Aktivkohlefilter ist optimiert für die effektive Adsorption und Entfernung von Öldämpfen aus Druckluftsystemen. Dieser Filter gewährleistet eine hohe Luftqualität und schützt nachgeschaltete Geräte vor Verunreinigungen.
| Volume flow (m³/min) | 4,6 |
| Compressed air inlet connection | G 1 1/4" |
| Differential pressure in new condition | < 0,03 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Width (mm) | 198 |
| Height (mm) | 440 |
| Depth (mm) | 153 |
| Condensate drain | Ball valve |
| Min. ambient temperature (°C) | +3 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +3 |
| Max. Compressed air inlet temperature (°C) | +66 |
| Degree of filtration | KA - Activated carbon filter adsorption |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102120.10600] KAESER Filter adsorption model F46KA G 1 1/2"](/web/image/product.template/262303/image_128/%5B102120.10600%5D%20KAESER%20Filter%20adsorption%20model%20F46KA%20G%201%201-2%22?unique=4bdfd11)
|
Volumenstrom: 4,61 m³/min |
711.32 € | |

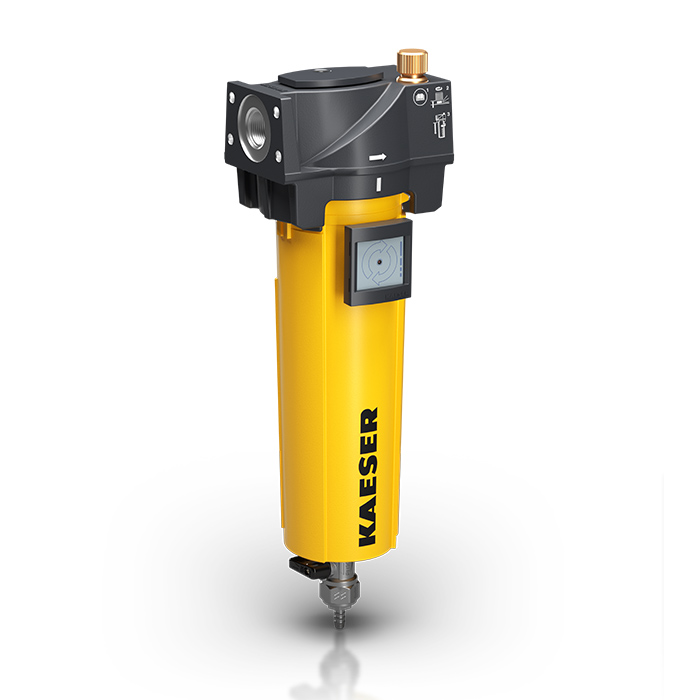

![[102120.10700] KAESER Filter adsorption model F46KA G 2"](/web/image/product.template/262304/image_128/%5B102120.10700%5D%20KAESER%20Filter%20adsorption%20model%20F46KA%20G%202%22?unique=4bdfd11)
|
Volumenstrom: 4,61 m³/min |
711.32 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

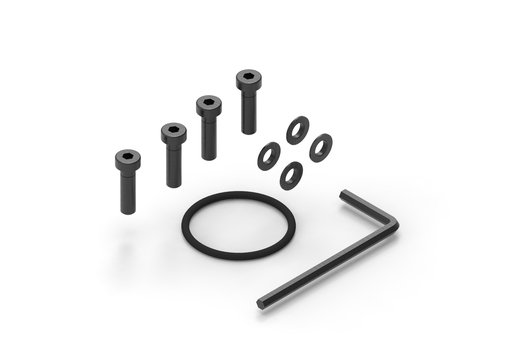

![[405343.0] KAESER Mounting KIT connecting flange KF3.2](/web/image/product.template/226216/image_128/%5B405343.0%5D%20KAESER%20Mounting%20KIT%20connecting%20flange%20KF3.2?unique=a4f8856)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
45.82 € | |

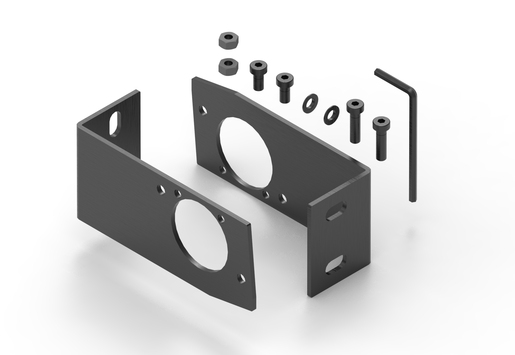

![[4E0521.0] KAESER Wall holder filter kit KF3.2](/web/image/product.template/234633/image_128/%5B4E0521.0%5D%20KAESER%20Wall%20holder%20filter%20kit%20KF3.2?unique=01a6b32)
|
KIT Wall bracket for KAESER compressed air filters |
104.72 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

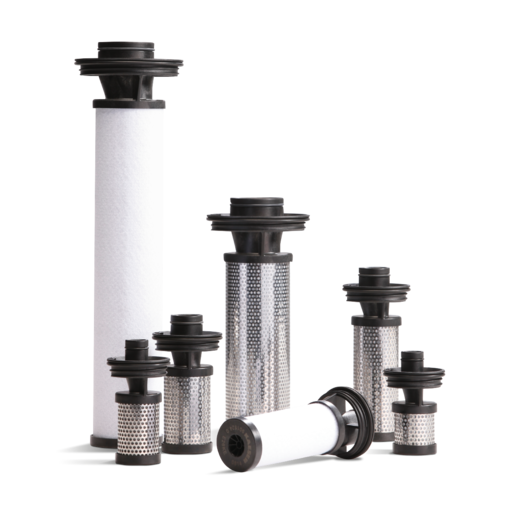

![[901565.0] KAESER Filter element E46KA](/web/image/product.template/16489/image_128/%5B901565.0%5D%20KAESER%20Filter%20element%20E46KA%20%20?unique=01a6b32)
|
Filterelement für KAESER Filter Adsorption Modell F46KA |
435.54 € | |
