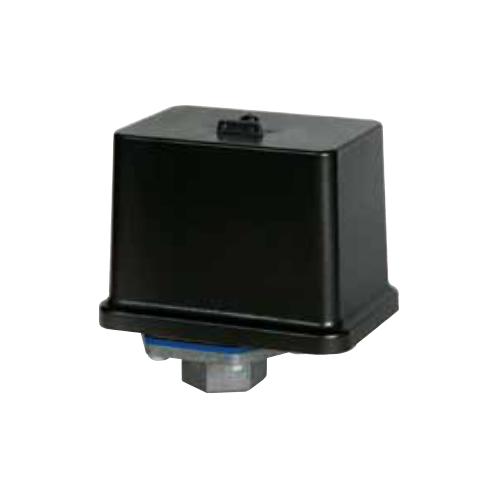

TIVAL Pressure switch FF 4-30 AC AAG 4 - 30 bar 1/4" stainless steel
max. operating pressure 30 bar
Upper switching point: adjustable 4 - 30 bar
Lower switching point: adjustable 1 - 26.4 bar
TIVAL Sensors
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology.
TIVAL pressure switch FF 4-30 AC AAG Ex 1030132
max. operating pressure 30 bar
with perbunan diaphragm
type of protection II 2G Ex ia IIC T6
pressure connection: G 1/4" female thread, corrugated stainless steel tube
for chemicals
with easy-to-read scale for simple adjustment
large connection space
high repeat accuracy
approved according to ATEX EN 60079
For further information, see Specifications
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 4 ... 30 |
| Lower switching point adjustable (bar) | 1 ... 26,4 |
| small pressure difference (bar) | 1,8 3,6 |
| Max. Operating pressure (bar) | 30 |
| Max. Test pressure (bar) | 42 |
| Factory setting (bar) | 16 / 20 |
| Pressure connection | G 1/4" stainless steel |
| Model range - Pressure switch | FF 4 / AAG |
