TIVAL Pressure switch FF 4-16 AC DAH 1 - 16 bar 3/8" silumin
max. operating pressure 36 bar
Upper switching point: adjustable 1 - 16 bar
Lower switching point: adjustable 0.4 - 15 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
TIVAL pressure switch FF 4-16 AC DAH Ex 1030145
max. operating pressure 36 bar
with perbunan diaphragm
type of protection II 2G Ex ia IIC T6
pressure connection: G 3/8" female thread, silumin
for chemicals
with easy-to-read scale for simple adjustment
large connection chamber
high repeat accuracy
approved according to ATEX EN 60079
For further information, see Technical data
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 1 ... 16 |
| Lower switching point adjustable (bar) | 0,4 ... 15 |
| small pressure difference (bar) | 0,6 1 |
| Max. Operating pressure (bar) | 36 |
| Max. Test pressure (bar) | 48 |
| Factory setting (bar) | 4 / 12 |
| Pressure connection | 3/8" Silumin |
| Model range - Pressure switch | FF 4 / ATEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

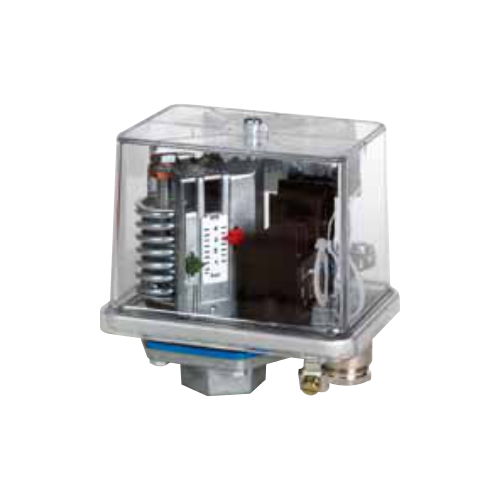

![[1030136] TIVAL Pressure switch FF 4-16 AB DAH](/web/image/product.template/149344/image_128/%5B1030136%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20AB%20DAH?unique=bc6b574)
|
max. operating pressure 36 bar |
270.27 € | |

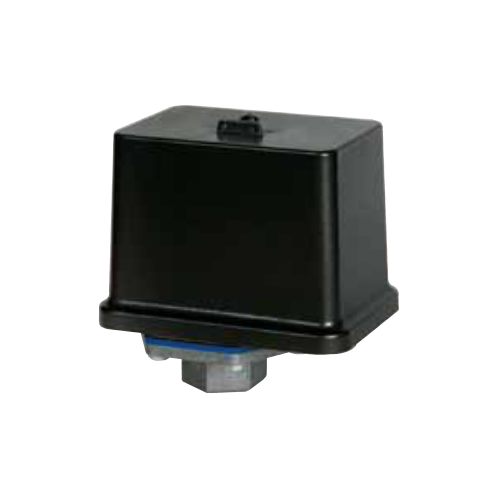

![[1010081] TIVAL Pressure switch FF 4-16 DAH 1 - 16 bar 3/8" silumin](/web/image/product.template/149297/image_128/%5B1010081%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20DAH%201%20-%2016%20bar%203-8%22%20silumin?unique=4c6c5c4)
|
max. operating pressure 36 bar |
110.15 € | |

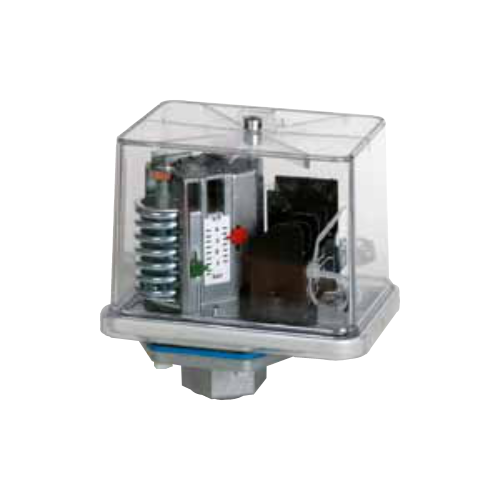

![[1010102] TIVAL pressure switch FF 4-16 DAH G 1 - 16 bar 3/8" silumin, gold-plated contacts Contacts](/web/image/product.template/149315/image_128/%5B1010102%5D%20TIVAL%20pressure%20switch%20FF%204-16%20DAH%20G%201%20-%2016%20bar%203-8%22%20silumin%2C%20gold-plated%20contacts%20Contacts?unique=812a86c)
|
[1010102] TIVAL pressure switch FF 4-16 DAH G 1 - 16 bar 3/8" silumin, gold-plated contacts Contacts
max. operating pressure 36 bar |
132.90 € | |

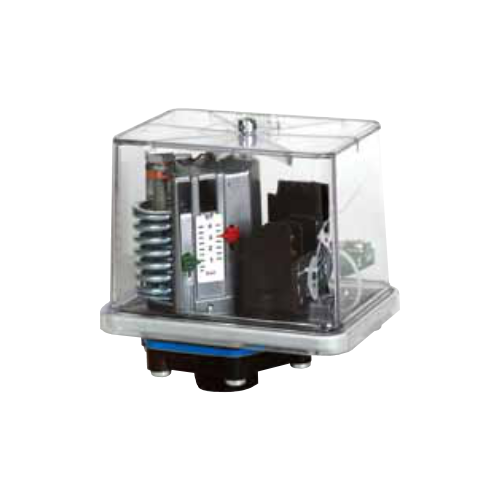

![[1010082] TIVAL Pressure switch FF 4-16 DAY 1 - 16 bar 3/8" polyamide](/web/image/product.template/149353/image_128/%5B1010082%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20DAY%201%20-%2016%20bar%203-8%22%20polyamide?unique=7297353)
|
max. operating pressure 20 bar |
110.15 € | |

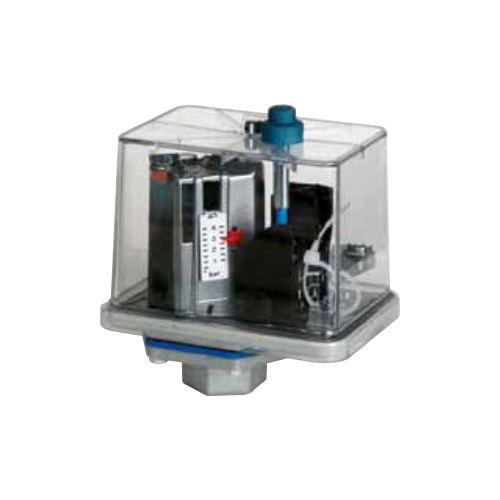

![[1010110] TIVAL Pressure switch FF 4-16 DRH 1 - 16 bar 3/8" silumin, Handreset max.](/web/image/product.template/149314/image_128/%5B1010110%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20DRH%201%20-%2016%20bar%203-8%22%20silumin%2C%20Handreset%20max.?unique=693a45f)
|
max. operating pressure 30 bar |
134.90 € | |

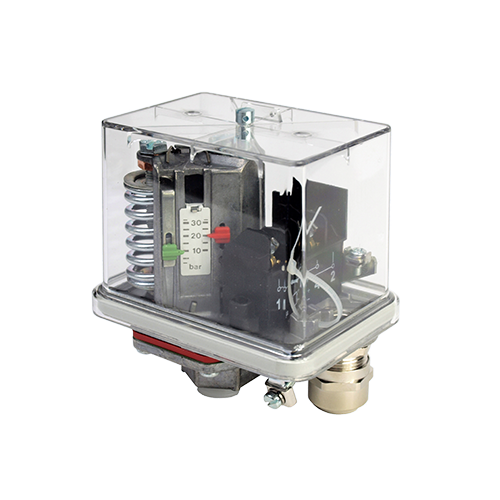

![[1010117] TIVAL Pressure switch FF 4-16 GL DAH 0 - 16 bar 3/8" Silumin](/web/image/product.template/149316/image_128/%5B1010117%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20GL%20DAH%200%20-%2016%20bar%203-8%22%20Silumin?unique=5263f2b)
|
max. operating pressure 36 bar |
141.75 € | |

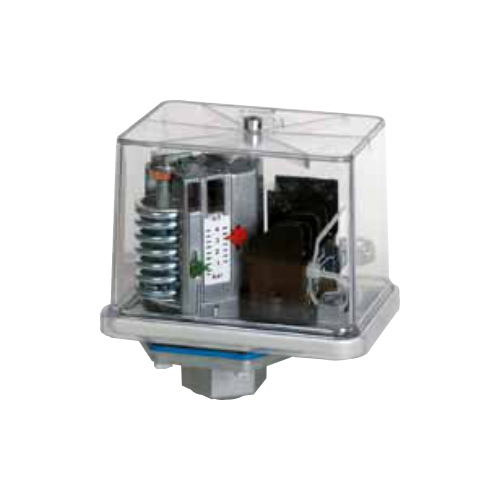

![[1020067] TIVAL Pressure switch FF 4-16 VdS DAI 1 - 16 bar](/web/image/product.template/149321/image_128/%5B1020067%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20VdS%20DAI%201%20-%2016%20bar?unique=df5f8cd)
|
max. operating pressure 36 bar |
126.81 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=89d8443)
|
TIVAL hood FF4 |
29.87 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=43f43f4)
|
TIVAL throttle FF4-2....32 |
4.19 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=89d8443)
|
TIVAL throttle FF4-12....250 |
10.35 € | |
![[1071004] TIVAL Manometer screw connection H 124 - 114 steel, G 3/8" - G 1/2"](/web/image/product.template/149368/image_128/%5B1071004%5D%20TIVAL%20Manometer%20screw%20connection%20H%20124%20-%20114%20steel%2C%20G%203-8%22%20-%20G%201-2%22?unique=89d8443)
|
TIVAL screw connection H 124-114 |
25.47 € | |
