TIVAL Pressure switch FF 4-12 AC AAG 1 - 12 bar 1/4" stainless steel
max. operating pressure 12 bar
Upper switching point: adjustable 1 - 12 bar
Lower switching point: adjustable 0.5 - 11.2 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-12 AC AAG ATEX pressure switch 1 - 12 bar - chemical, up to +200 °C | Art. 1030131
The TIVAL ATEX high temperature switch is ATEX-certified according to EN 60079 and offers maximum safety for explosive atmospheres. The upper switching point is adjustable from 1 ... 12, the lower switching point can be set from 0.5 ... 11.2. Connection: G 1/4" stainless steel - robust design in matching material variant. Application range: High temperature & explosive atmospheres - with full conformity documentation. max. operating pressure: 12 bar, medium temperature: up to +200°C. Standards & approvals: ATEX EN 60079, II 2G Ex ia IIC T6 Gb. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 1 ... 12 |
| Lower switching point adjustable (bar) | 0,5 ... 11,2 |
| small pressure difference (bar) | 0,5 0,8 |
| Max. Operating pressure (bar) | 12 |
| Max. Test pressure (bar) | 16 |
| Factory setting (bar) | 6 / 7 |
| Pressure connection | G 1/4" stainless steel |
| Model range - Pressure switch | FF 4 / AAG |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

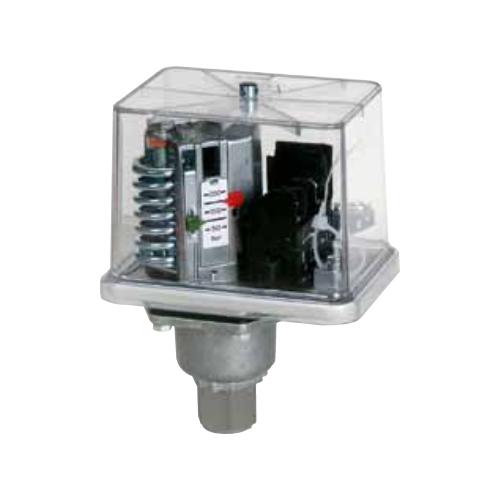

![[1010074] TIVAL Pressure switch FF 4-12 AAG 1 - 12 bar 1/4" stainless steel](/web/image/product.template/149303/image_128/%5B1010074%5D%20TIVAL%20Pressure%20switch%20FF%204-12%20AAG%201%20-%2012%20bar%201-4%22%20stainless%20steel?unique=8f5c035)
|
