TIVAL Pressure switch FF 4-120 AC PAH 30 - 250 bar 3/8" silumin
max. operating pressure 400 bar
Upper switching point: adjustable 30 - 250 bar
Lower switching point: adjustable 14 - 226 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-120 AC PAH ATEX high-pressure switch 30 - 250 bar - Chemical (Ex ia IIC) | Art. 1030150
The TIVAL ATEX high-pressure switch is ATEX-certified in accordance with EN 60079 and offers maximum safety for explosive atmospheres. The upper switching point is adjustable from 30 ... 250, the lower switching point can be set from 14 ... 226. Connection: G 3/8" stainless steel - robust design in matching material variant. Application range: High-pressure chemical & explosive atmospheres - with full conformity documentation. max. operating pressure: 400 bar, medium temperature: up to +70°C. Standards & approvals: ATEX EN 60079, II 2G Ex ia IIC T6 Gb. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 30 ... 250 |
| Lower switching point adjustable (bar) | 14 ... 226 |
| small pressure difference (bar) | 12 24 |
| Max. Operating pressure (bar) | 400 |
| Max. Test pressure (bar) | 500 |
| Factory setting (bar) | 100 / 200 |
| Pressure connection | 3/8" Silumin |
| Model range - Pressure switch | FF 4 / PAH |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1030139] TIVAL Pressure switch FF 4-120 AB PAH 16 - 120 bar 3/8" zinc](/web/image/product.template/149374/image_128/%5B1030139%5D%20TIVAL%20Pressure%20switch%20FF%204-120%20AB%20PAH%2016%20-%20120%20bar%203-8%22%20zinc?unique=7261014)
|
max. operating pressure 200 bar |
431.83 € | |
![[1030149] TIVAL Pressure switch FF 4-120 AC PAH 16 - 120 bar 3/8" silumin](/web/image/product.template/149377/image_128/%5B1030149%5D%20TIVAL%20Pressure%20switch%20FF%204-120%20AC%20PAH%2016%20-%20120%20bar%203-8%22%20silumin?unique=b46fc4d)
|
max. operating pressure 200 bar |
476.19 € | |

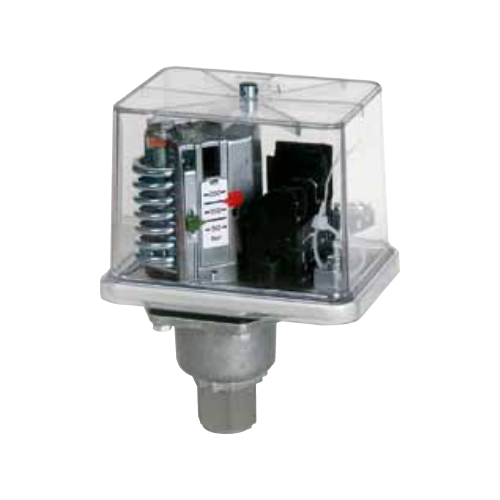

![[1010079] TIVAL Pressure switch FF 4-120 PAH 16 - 120 bar 3/8" stainless steel](/web/image/product.template/149307/image_128/%5B1010079%5D%20TIVAL%20Pressure%20switch%20FF%204-120%20PAH%2016%20-%20120%20bar%203-8%22%20stainless%20steel?unique=333464a)
|
max. operating pressure 200 bar |
220.20 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=4f73d7f)
|
TIVAL hood FF4 |
29.87 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=4f73d7f)
|
TIVAL throttle FF4-2....32 |
4.19 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=4f73d7f)
|
TIVAL throttle FF4-12....250 |
10.35 € | |
![[1071004] TIVAL Manometer screw connection H 124 - 114 steel, G 3/8" - G 1/2"](/web/image/product.template/149368/image_128/%5B1071004%5D%20TIVAL%20Manometer%20screw%20connection%20H%20124%20-%20114%20steel%2C%20G%203-8%22%20-%20G%201-2%22?unique=4f73d7f)
|
TIVAL screw connection H 124-114 |
25.47 € | |
