RIEGLER Ball valve heavy duty design, Manual lever, ET/ET, R 1 1/2
Type number: 3351.88
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve, heavy-duty version, nickel-plated brass, for industrial systems, R 1 1/2 - Type 3351.88
The RIEGLER heavy-duty ball valve, hand lever, AG/AG, MS nickel-plated, R 1 1/2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -20 °C and 130 °C. Connection thread R 1 1/2 (R-thread according to DIN EN 10226 (ISO 7-1)) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | R 1 1/2 |
| DN | 40 |
| SW | 57 mm |
| PN | 100 bar |
| Thread standard | R-thread according to DIN EN 10226 (ISO 7-1) |
| A | 150 mm |
| B | 102.9 mm |
| L | 136 mm |
| E | 21.2 mm |
| F | 21.2 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103283] RIEGLER Ball valve heavy duty design, Manual lever, ET/ET, R 1](/web/image/product.template/171250/image_128/%5B103283%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20ET-ET%2C%20R%201?unique=025300d)
|
Type number: 3351.66 |
31.02 € | |
![[103284] RIEGLER Ball valve heavy duty design, Manual lever, ET/ET, R 1 1/4](/web/image/product.template/171251/image_128/%5B103284%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20ET-ET%2C%20R%201%201-4?unique=9cfb738)
|
Type number: 3351.77 |
45.90 € | |
![[103281] RIEGLER Ball valve heavy duty design, Manual lever, ET/ET, R 1/2](/web/image/product.template/171248/image_128/%5B103281%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20ET-ET%2C%20R%201-2?unique=daf172c)
|
Type number: 3351.44 |
12.91 € | |

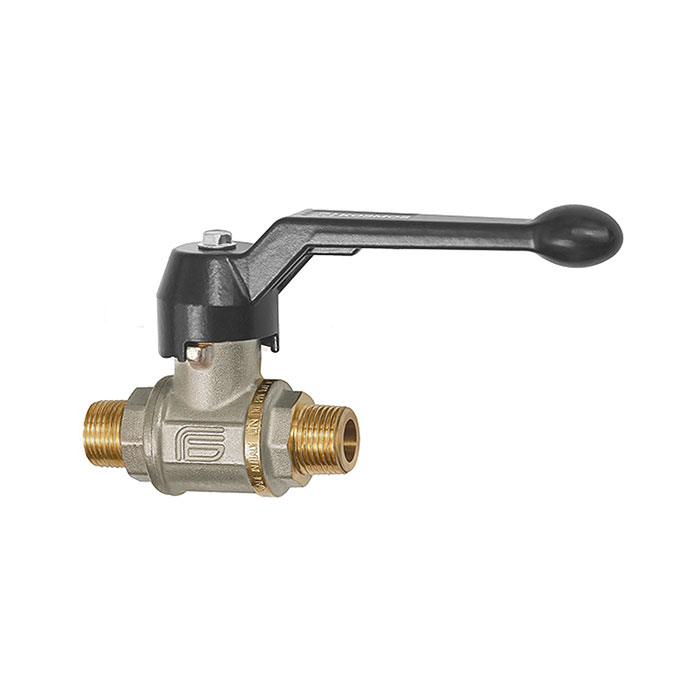

![[103279] RIEGLER Ball valve heavy duty design, Manual lever, ET/ET, R 1/4](/web/image/product.template/171246/image_128/%5B103279%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20ET-ET%2C%20R%201-4?unique=848a2e2)
|
