RIEGLER KFE ball valve, bright brass, G 1/2, Sleeve I.D. 13
Type number: KFE-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER KFE ball valve made of bare brass, for industrial systems, max. 10 bar - type KFE-12
The RIEGLER KFE ball valve, bare brass, G 1/2, spout LW 13 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of bright brass. Designed for a maximum operating pressure of 10 bar. The operating temperature is between 0 °C and 110 °C. G 1/2 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Brass bright |
| Max. operating pressure | 10 bar |
| Ball | Brass bright |
| Ball seal | PTFE |
| Spindle seal | EPDM |
| Rotary handle | Zinc die casting |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 110 °C |
| Cutting ring seal | PTFE |
| Hose nozzle seal | EPDM |
| Cap seal | EPDM |
| Thread | G 1/2 |
| for hose | LW 13 mm |
| B | 37 mm |
| C | 20 mm |
| L | 74.6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

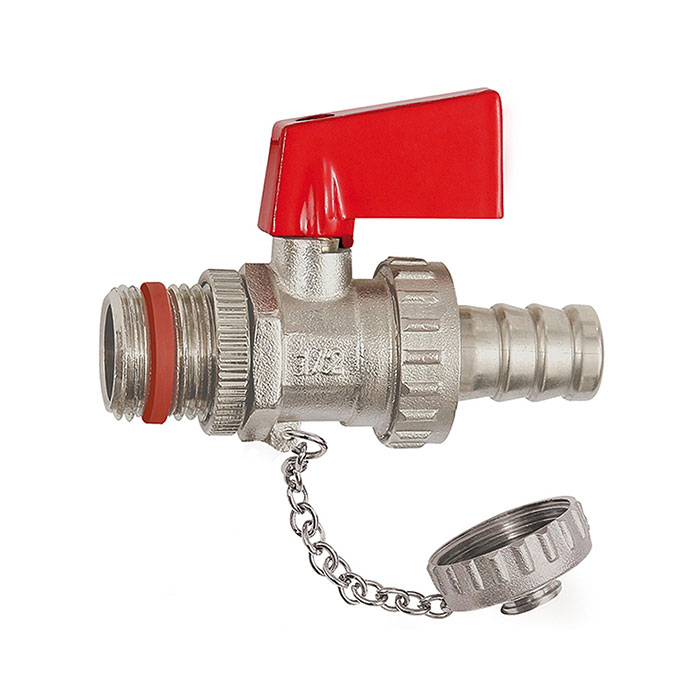

![[103415] RIEGLER KFE ball valve, nickel-plated brass, G 1/2, Sleeve I.D. 13](/web/image/product.template/171381/image_128/%5B103415%5D%20RIEGLER%20KFE%20ball%20valve%2C%20nickel-plated%20brass%2C%20G%201-2%2C%20Sleeve%20I.D.%2013?unique=4f226e2)
|
Type number: KFE-12N |
9.60 € | |
