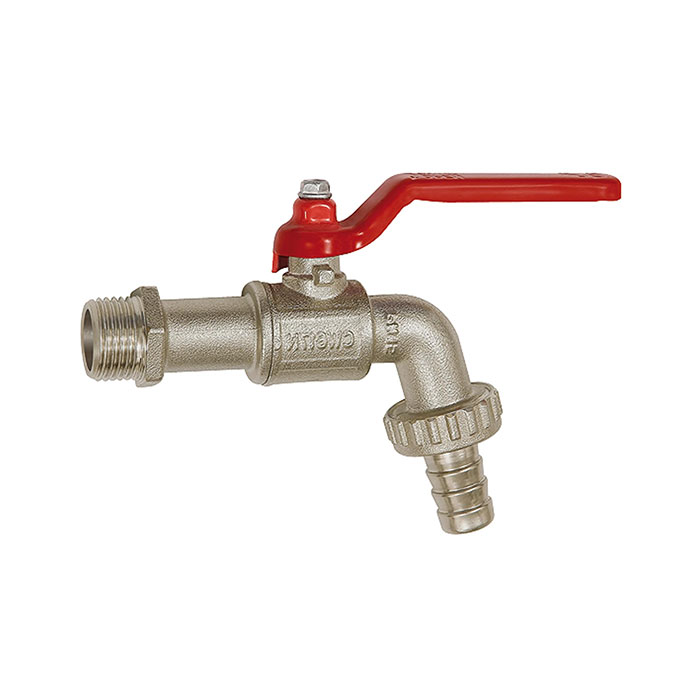

RIEGLER Ball drain valve, nickel-plated brass, G 3/8 ET, DN 10
Type number: KAH.38
EAN: 4047322395106
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, nickel-plated brass, temperature range -20 °C to 80 °C, G 3/8 AG, DN 10, PN max. 15 bar
| Sealing material | NBR |
| Material | Nickel-plated brass |
| Area of application | Water, gaseous and non-aggressive media, compressed air |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| DN | 10 |
| PN | 15 bar |
| Thread standard | G-thread according to ISO 228-1 |
| for hose | LW 13 mm |
| A | 80 mm |
| L | 135 mm |
| H | 93 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Grommet connection thread | G 3/4 |
| Class name | FLEX |
