RIEGLER Ball drain valve, nickel-plated brass, G 1/2 ET, DN 15
Type number: KAH.12
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball drain valve, nickel-plated brass, Temperature range -20 °C to 80 °C, G 1/2 ET, DN 15, PN max. 15 bar
| Sealing material | NBR |
| Material | Nickel-plated brass |
| Area of application | Water, gaseous and non-aggressive media, compressed air |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| DN | 15 |
| PN | 15 bar |
| Thread standard | G-thread according to ISO 228-1 |
| for hose | LW 13 mm |
| A | 80 mm |
| L | 137 mm |
| H | 93 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Grommet connection thread | G 3/4 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103419] RIEGLER Ball drain valve, nickel-plated brass, G 1 ET, DN 25](/web/image/product.template/171385/image_128/%5B103419%5D%20RIEGLER%20Ball%20drain%20valve%2C%20nickel-plated%20brass%2C%20G%201%20ET%2C%20DN%2025?unique=d26ee36)
|
Type number: KAH.10 |
31.00 € | |
![[103418] RIEGLER Ball drain valve, nickel-plated brass, G 3/4 ET, DN 20](/web/image/product.template/171384/image_128/%5B103418%5D%20RIEGLER%20Ball%20drain%20valve%2C%20nickel-plated%20brass%2C%20G%203-4%20ET%2C%20DN%2020?unique=69f91ba)
|
Type number: KAH.34 |
20.16 € | |

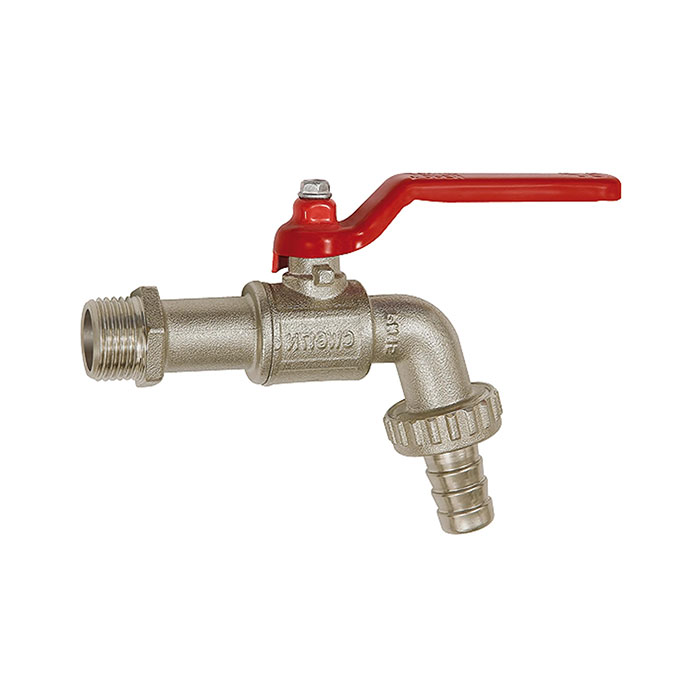

![[103416] RIEGLER Ball drain valve, nickel-plated brass, G 3/8 ET, DN 10](/web/image/product.template/171382/image_128/%5B103416%5D%20RIEGLER%20Ball%20drain%20valve%2C%20nickel-plated%20brass%2C%20G%203-8%20ET%2C%20DN%2010?unique=9db6afd)
|
Type number: KAH.38 |
14.08 € | |
