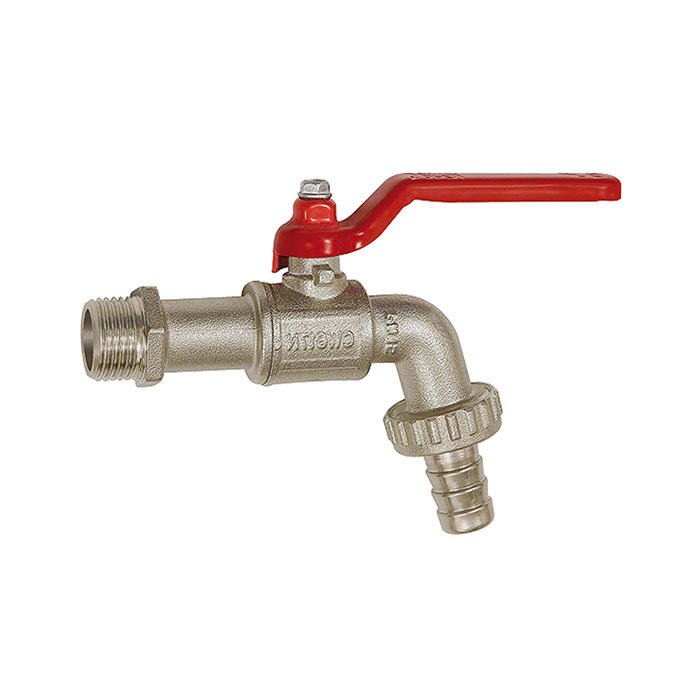

RIEGLER Ball drain valve, nickel-plated brass, G 3/4 ET, DN 20
Type number: KAH.34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve made of nickel-plated brass, for industrial systems, G 3/4 AG - type KAH.34
The RIEGLER ball outlet valve, nickel-plated brass, G 3/4 AG, DN 20 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass with NBR seals. The operating temperature is between -20 °C and 80 °C. Connection thread G 3/4 AG (G thread to ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Sealing material | NBR |
| Material | Nickel-plated brass |
| Area of application | Water, gaseous and non-aggressive media, compressed air |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| DN | 20 |
| PN | 15 bar |
| Thread standard | G-thread according to ISO 228-1 |
| for hose | LW 19 mm |
| A | 88.5 mm |
| L | 148.5 mm |
| H | 109 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/4 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Grommet connection thread | G 1 |
| Class name | FLEX |
