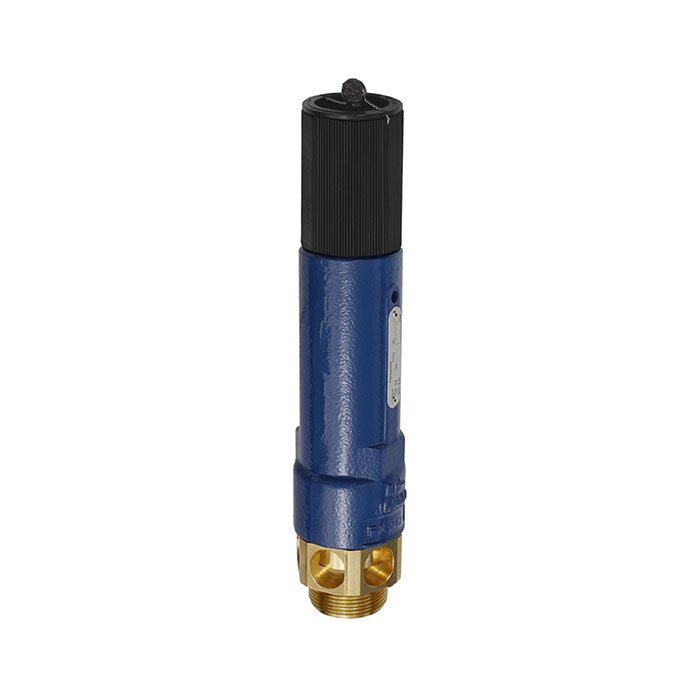

RIEGLER High performance safety valve, G 1 1/2, Trigger pressure 3.3 bar
Type number: 1145.02-3,3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
105345EAN :
4047322020091Category :
Safety Valves & Pressure Relief ValvesWeight :
3.10 kgRIEGLER High-performance safety valve MS made of brass, for industrial systems, max. 30 bar - Type 1145.02-3,3
The RIEGLER high-performance safety valve MS, G 1 1/2 response pressure 3.3 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of brass. The operating pressure range is 0.5 bar to 30 bar. Connection thread G 1 1/2 - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Housing | Brass |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 30 bar |
| Spring cover | Gray cast iron, powder-coated blue |
| Operating temperature max. | 260 °C |
| Thread | G 1 1/2 |
| SW | 60 mm |
| Response pressure min. | 3.3 bar |
| A | 20 mm |
| H | 293 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| do | 32 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
