RIEGLER 3/2-way mini valve, manual, Rotating lever, NC bistable M5 side
Type number: 512.314
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way miniature valve, manual, Rotating lever, NC, bistable, M5 (side), Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves VME series |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| Function | 3/2 NC |
| Actuation | bistable |
| Nominal Ø | 2.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 internal thread on the side |
| RoHS material information | RoHS compliant |
| Flow rate | 35 Nl/min |
| Flow rate | 60 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and ˆ†p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Î "p 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

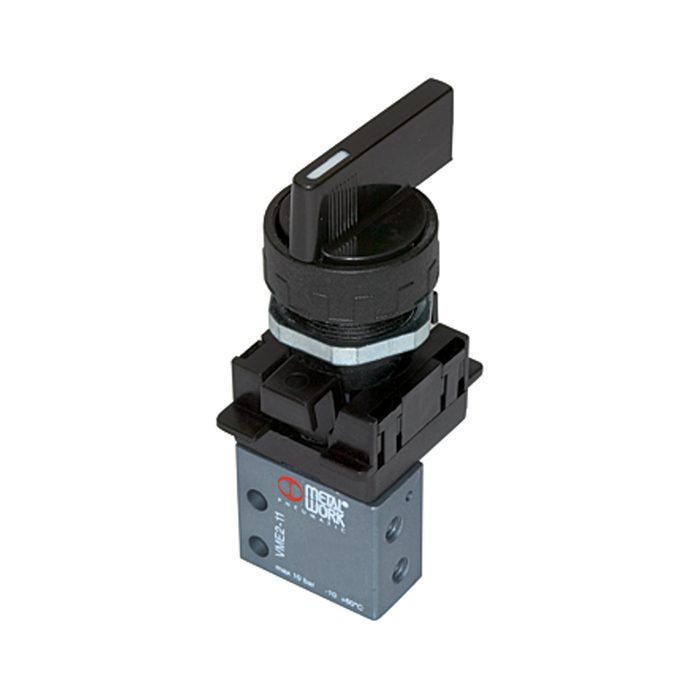

![[106407] RIEGLER 3/2-way mini valve, manual, Rotating lever, NC bistable 4 mm side](/web/image/product.template/175464/image_128/%5B106407%5D%20RIEGLER%203-2-way%20mini%20valve%2C%20manual%2C%20Rotating%20lever%2C%20NC%20bistable%204%20mm%20side?unique=e06ce4a)
|
Type number: 512.313 |
45.68 € | |
![[106405] RIEGLER 3/2-way mini valve manual, Rotating lever, NC monostable 4mm side](/web/image/product.template/175462/image_128/%5B106405%5D%20RIEGLER%203-2-way%20mini%20valve%20manual%2C%20Rotating%20lever%2C%20NC%20monostable%204mm%20side?unique=f05e561)
|
Type number: 512.303 |
45.68 € | |
![[106406] RIEGLER 3/2-way mini valve, manual, Rotating lever, NC monostable M5 side](/web/image/product.template/175463/image_128/%5B106406%5D%20RIEGLER%203-2-way%20mini%20valve%2C%20manual%2C%20Rotating%20lever%2C%20NC%20monostable%20M5%20side?unique=f05e561)
|
Type number: 512.304 |
44.57 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106386] RIEGLER 3/2-way miniature valve, Mechanical, Tappet, NO, M5 (side)](/web/image/product.template/175443/image_128/%5B106386%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20Mechanical%2C%20Tappet%2C%20NO%2C%20M5%20%28side%29?unique=54ffdb2)
|
Type number: 511.122 |
20.78 € | |

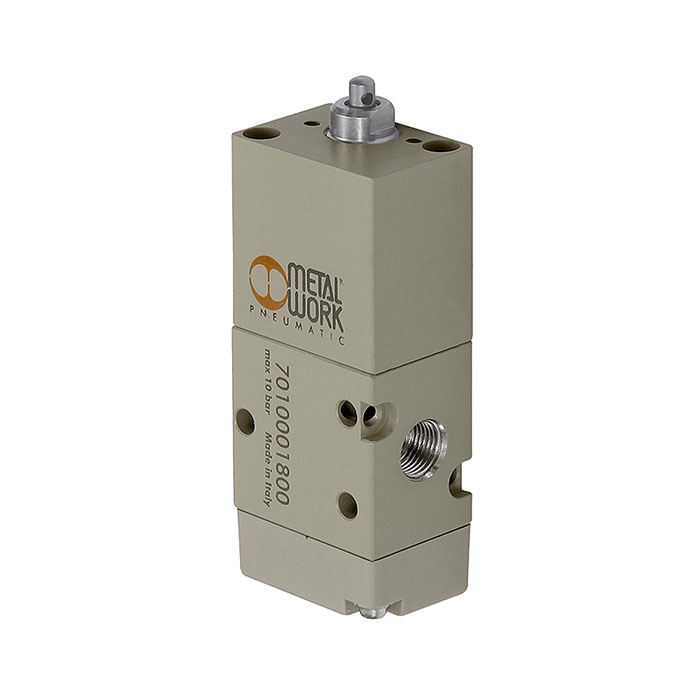

![[106441] RIEGLER Stem actuated valve, 3/2-way, monostable, NC, G 1/8](/web/image/product.template/175498/image_128/%5B106441%5D%20RIEGLER%20Stem%20actuated%20valve%2C%203-2-way%2C%20monostable%2C%20NC%2C%20G%201-8?unique=3b7fa52)
|
Type number: 515.101 |
51.74 € | |

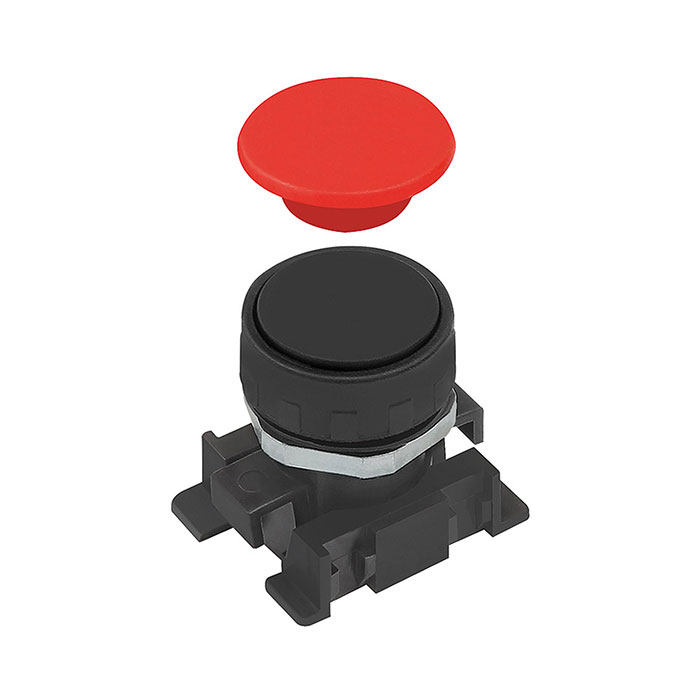

![[106444] RIEGLER Push button with red and black discs, monostable](/web/image/product.template/175501/image_128/%5B106444%5D%20RIEGLER%20Push%20button%20with%20red%20and%20black%20discs%2C%20monostable?unique=8bd87d1)
|
Type number: DK-M |
12.34 € | |

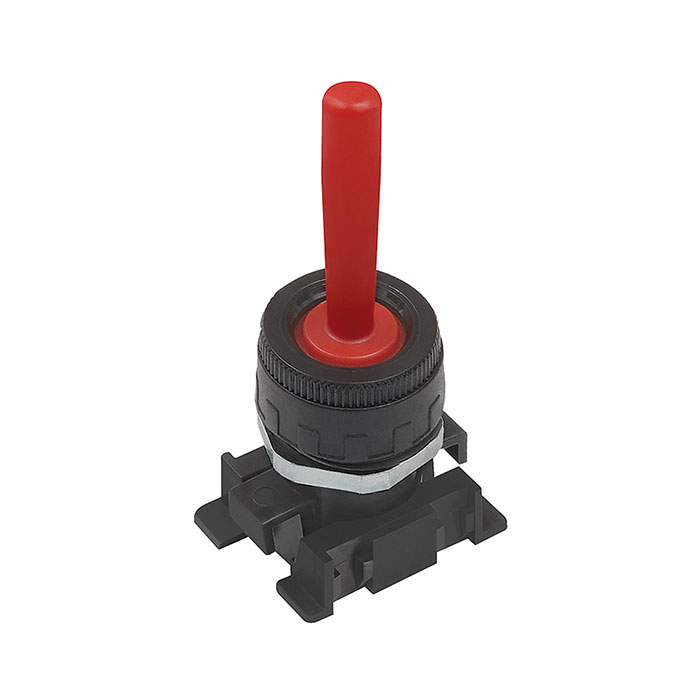

![[106445] RIEGLER Manual lever, red, monostable](/web/image/product.template/175502/image_128/%5B106445%5D%20RIEGLER%20Manual%20lever%2C%20red%2C%20monostable?unique=6fe9fb6)
|
Type number: HH-M |
24.75 € | |
![[106446] RIEGLER Short rotating lever, black, 2 positions, monostable](/web/image/product.template/175503/image_128/%5B106446%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%202%20positions%2C%20monostable?unique=dfa6cc9)
|
Type number: KDH-2M |
21.96 € | |

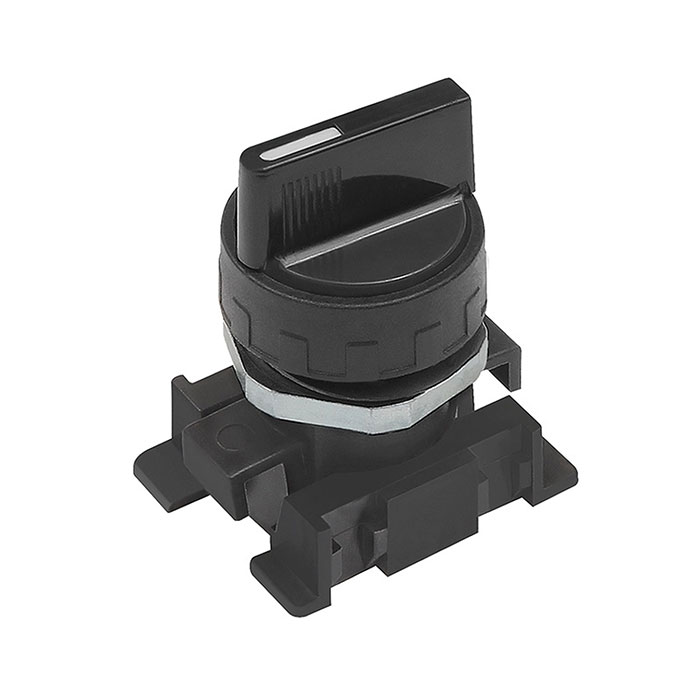

![[106447] RIEGLER Short rotating lever, black, 2 positions, bistable](/web/image/product.template/175504/image_128/%5B106447%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%202%20positions%2C%20bistable?unique=8aa83dc)
|
Type number: KDH-2B |
21.96 € | |
![[106448] RIEGLER Short rotating lever, black, 3 positions, monostable](/web/image/product.template/175505/image_128/%5B106448%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%203%20positions%2C%20monostable?unique=a257d73)
|
Type number: KDH-3M |
21.96 € | |
![[106449] RIEGLER Short rotating lever, black, 3 positions, bistable](/web/image/product.template/175506/image_128/%5B106449%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%203%20positions%2C%20bistable?unique=11347f7)
|
Type number: KDH-3B |
21.96 € | |

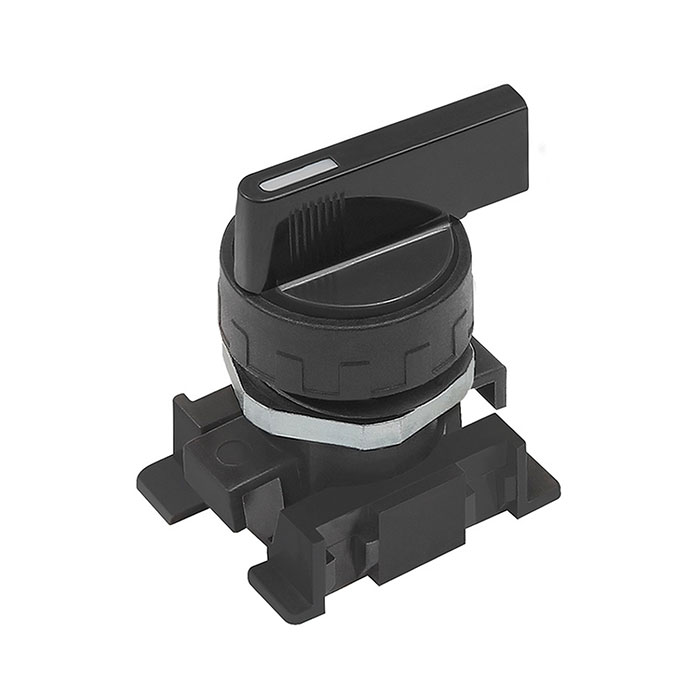

![[106450] RIEGLER Long rotating lever, black, 2 positions, monostable](/web/image/product.template/175507/image_128/%5B106450%5D%20RIEGLER%20Long%20rotating%20lever%2C%20black%2C%202%20positions%2C%20monostable?unique=9db6432)
|
Type number: LDH-2M |
23.01 € | |
![[106452] RIEGLER Long rotating lever, black, 3 positions, monostable](/web/image/product.template/175509/image_128/%5B106452%5D%20RIEGLER%20Long%20rotating%20lever%2C%20black%2C%203%20positions%2C%20monostable?unique=a77d41e)
|
Type number: LDH-3M |
23.01 € | |
![[106453] RIEGLER Long rotating lever, black, 3 positions, bistable](/web/image/product.template/175510/image_128/%5B106453%5D%20RIEGLER%20Long%20rotating%20lever%2C%20black%2C%203%20positions%2C%20bistable?unique=792942b)
|
Type number: LDH-3B |
23.01 € | |
![[106454] RIEGLER Lockable 2 position switch with key removal in all positions](/web/image/product.template/175511/image_128/%5B106454%5D%20RIEGLER%20Lockable%202%20position%20switch%20with%20key%20removal%20in%20all%20positions?unique=896463e)
|
Type number: V2SS-JS |
36.74 € | |

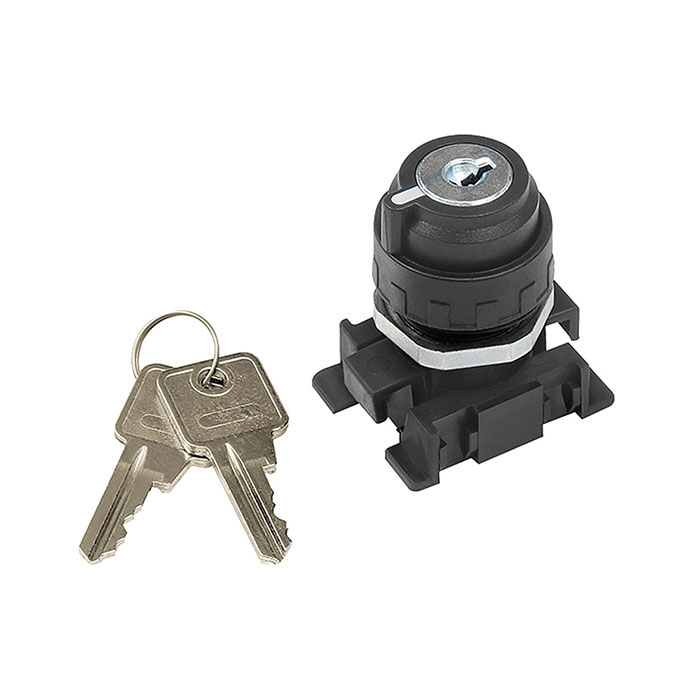

![[106455] RIEGLER Lockable 2 position switch with key removal in home position](/web/image/product.template/175512/image_128/%5B106455%5D%20RIEGLER%20Lockable%202%20position%20switch%20with%20key%20removal%20in%20home%20position?unique=7f390c0)
|
Type number: V2SS-GS |
34.96 € | |

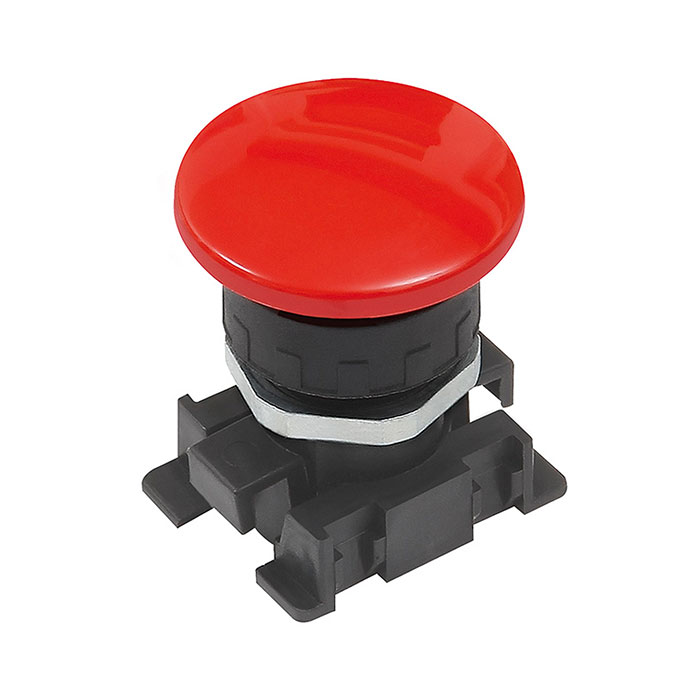

![[106456] RIEGLER Red palm button, monostable](/web/image/product.template/175513/image_128/%5B106456%5D%20RIEGLER%20Red%20palm%20button%2C%20monostable?unique=89bdff1)
|
Type number: RPT-M |
17.64 € | |
![[106457] RIEGLER Red palm button with emergency locking](/web/image/product.template/175514/image_128/%5B106457%5D%20RIEGLER%20Red%20palm%20button%20with%20emergency%20locking?unique=f7a9134)
|
Type number: RPT-NR |
28.91 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

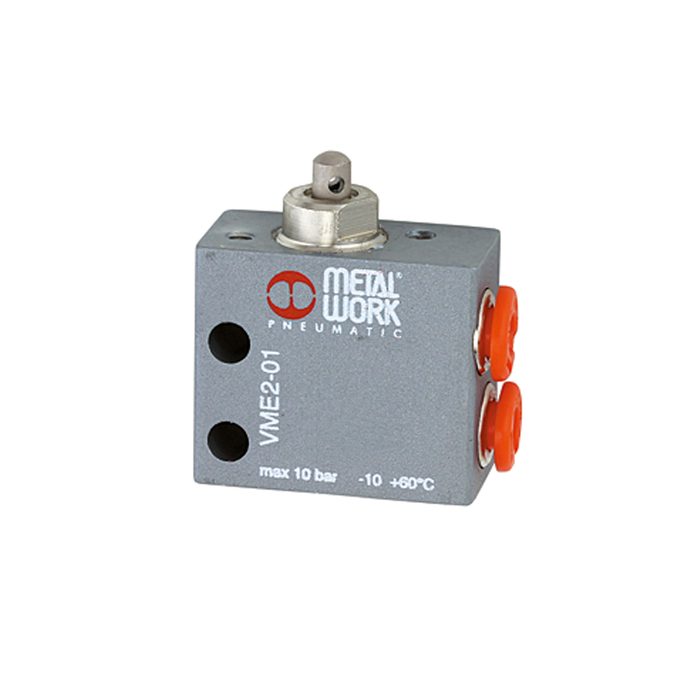

![[106388] RIEGLER 3/2-way miniature valve, Mechanical, Tappet, NC, M5](/web/image/product.template/175445/image_128/%5B106388%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20Mechanical%2C%20Tappet%2C%20NC%2C%20M5?unique=327584f)
|
Type number: 511.132 |
18.75 € | |

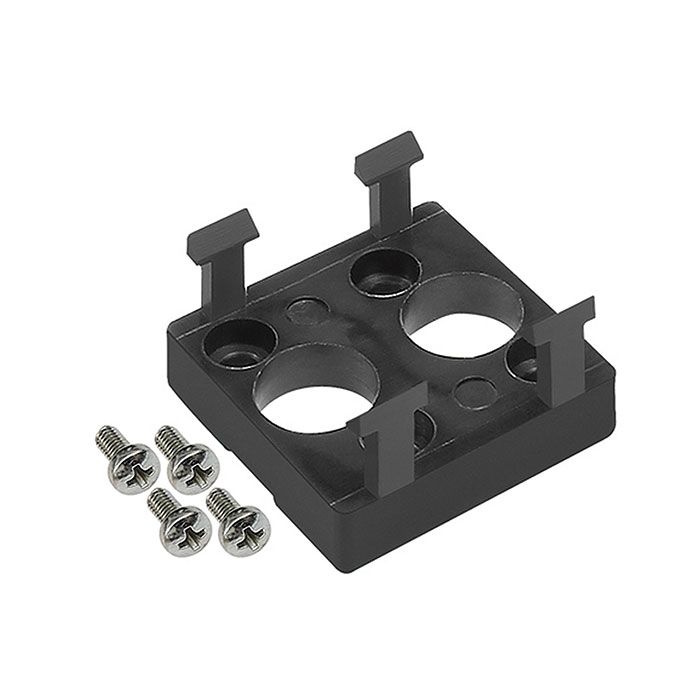

![[106443] RIEGLER Adapter max. 2 valves, required for mounting on basic valve](/web/image/product.template/175500/image_128/%5B106443%5D%20RIEGLER%20Adapter%20max.%202%20valves%2C%20required%20for%20mounting%20on%20basic%20valve?unique=3bd1f09)
|
