RIEGLER 5/2-way valve, Single-sided electromagn. monost. G1/4, 230V,50Hz
Type number: 517.425
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106594EAN :
4047322278560Category :
Valves Electropneumatically OperatedWeight :
0.39 kgRIEGLER 5/2-way valve single solenoid mono. made of anodized aluminium, blue - Type 517.425
The RIEGLER 5/2-way valve single directional electromagnetic mono. G 1/4 230V,50Hz controls the direction of the compressed air flow for targeted movement sequences. The housing is made of anodized aluminium, blue with NBR seals. The operating pressure range is 2.5 bar to 10 bar. The temperature range is between -10 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 1500 Nl/min. Operating voltage 230 V AC, 50 Hz, protection class IP 65 (DIN 46244). Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Housing | Anodized aluminium, blue |
| Sealing material | NBR |
| Protection class | IP 65 (DIN 46244) |
| Electrical connection | Device plug PG 9, form B |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Piston slide | Stainless steel |
| Manual override | groping |
| DN | 45419 |
| Function | 5/2 |
| Actuation | monostable |
| Symbol | 35 |
| Tension | 230 V AC, 50 Hz |
| Connection | G 1/4 |
| Flow rate | 1500 Nl/min |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

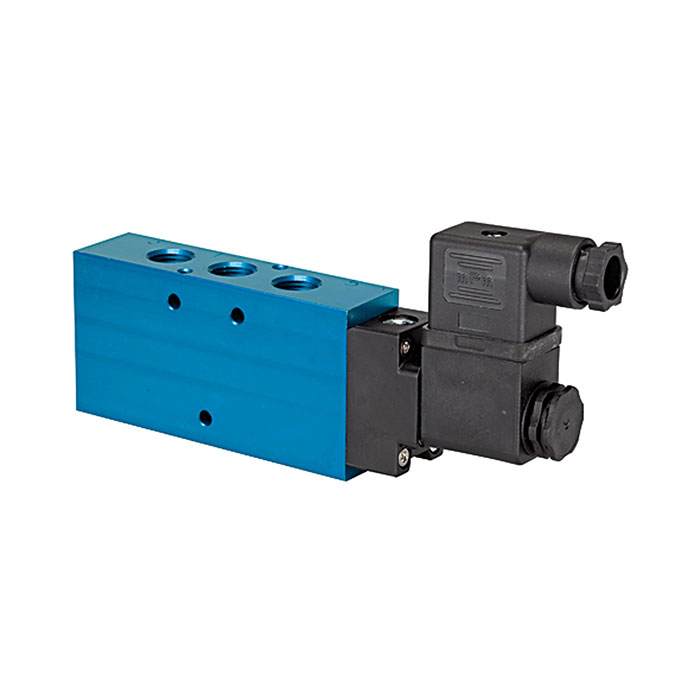

![[106593] RIEGLER 5/2-way valve, Single-sided electromagnetic, monost. G1/2 24VDC](/web/image/product.template/175650/image_128/%5B106593%5D%20RIEGLER%205-2-way%20valve%2C%20Single-sided%20electromagnetic%2C%20monost.%20G1-2%2024VDC?unique=df04848)
|
