RIEGLER 5/2-way valve, Both sides pneumatic, bistable, G 1/2, DN 15

https://www.filcom-technik.de/web/image/product.template/175660/image_1920?unique=be7ff21

Type number: 517.633

254.01 € 254.01000000000002 EUR 254.01 € VAT Included

296.46 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

106603

EAN :

4047322278676

Category :

Valves Electropneumatically Operated

Weight :

0.79 kg

RIEGLER 5/2-way valve made of anodized aluminium, blue, for pneumatic control, max. 10 bar - Type 517.633

The RIEGLER 5/2-way valve, pneumatic on both sides, bistable, G 1/2, DN 15 controls the direction of the compressed air flow for targeted movement sequences. The housing is made of anodized aluminium, blue with NBR seals. The operating pressure range is 2.5 bar to 10 bar. The temperature range is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 4600 Nl/min. Protection class IP 65 (DIN 46244). Precise directional control for defined movement sequences.

Field of application

Typical areas of application: Pneumatic controls and mechanical engineering.

Temperature range min. -10 °C
Temperature range max. 60 °C
Housing Anodized aluminium, blue
Sealing material NBR
Protection class IP 65 (DIN 46244)
Electrical connection Device plug PG 9, form B
Operating pressure min. 2.5 bar
Max. operating pressure 10 bar
Control pressure min. 2.5 bar
Piston slide Stainless steel
Manual override groping
DN 15
Function 5/2
Actuation bistable
Symbol 28
Connection G 1/2
Flow rate 4600 Nl/min
Flow rate measurement 1 Flow rate at 6 bar and Δp 1.0 bar
Class name MAX

Variants / Alternatives

Product Price

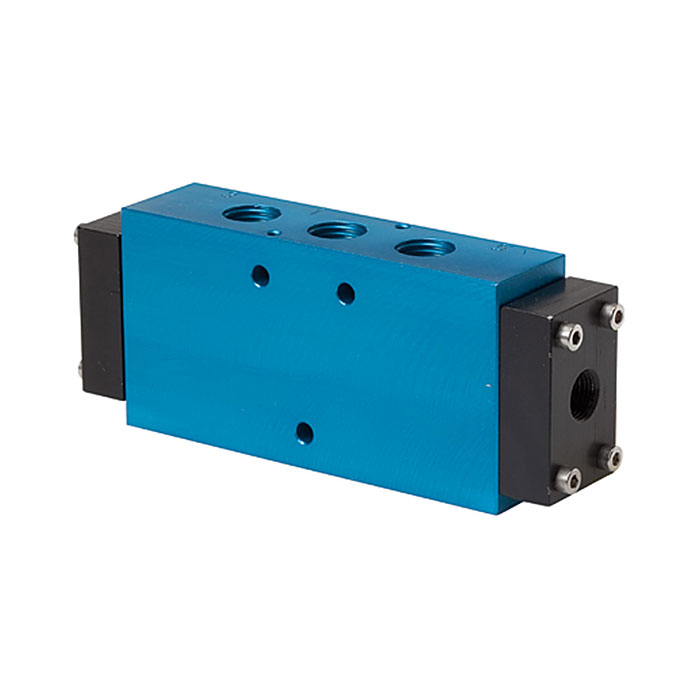

[106602] RIEGLER 5/2-way valve, Both sides pneumatic, bistable, G 1/4, DN 7.5

Type number: 517.632

 120.24 €
