RIEGLER 3/2-way mini solenoid valve directly controlled, NO, 12 VDC cable
Type number: MV 1062.2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106648EAN :
4047322156561Category :
Valves Electropneumatically OperatedWeight :
0.04 kgRIEGLER 3/2 mini solenoid valve direct operated NO made of plastic, for pneumatic control - type MV 1062.2
The RIEGLER 3/2 mini solenoid valve direct operated NO, 12 VDC, cable 30 cm controls the direction of the compressed air flow for targeted movement sequences. The housing is made of plastic with seals made of NBR, stainless steel. The operating pressure range is 0 bar to 5 bar. The temperature range is between -10 °C and 50 °C. Connection thread cable (30 cm) - suitable for common industry standards. Suitable for filtered, unlubricated compressed air. The flow rate value is QN (p1 = 6 bar, Î "p = 1 bar) = 50 Nl/min. Operating voltage 12 V DC, power consumption 2.5 W. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | filtered, unlubricated compressed air |
| Sealing material | NBR, stainless steel |
| Power consumption | 2,5 W |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 5 bar |
| Flow rate | QN (p1 = 6 bar, Î "p = 1 bar) = 50 Nl/min |
| Material | Plastic |
| Switching frequency | max. 2400/min |
| Opening and closing times | 10 - 12 ms (depending on pressure) |
| Coil power | 2.5 W |
| Manual override | groping |
| Height | 42 mm |
| Width | 15 mm |
| Function | 3/2 NO |
| Actuation | electric with manual override |
| Type of construction | directly controlled |
| Application | Mounting on base plate |
| Tension | 12 V DC |
| Nominal Ø | 1.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | Cable (30 cm) |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Manual override plate | black |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

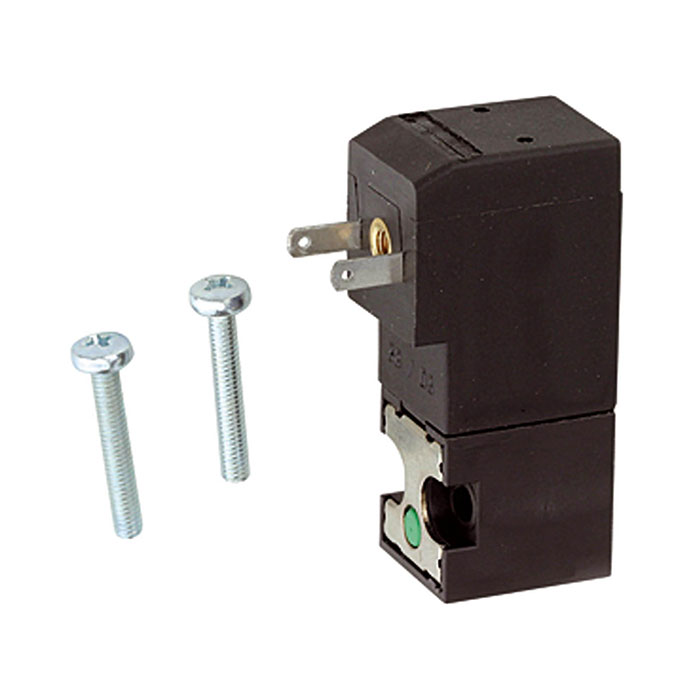

![[106645] RIEGLER 3/2-way mini solenoid valve directly controlled, NC, 12 VDC](/web/image/product.template/175702/image_128/%5B106645%5D%20RIEGLER%203-2-way%20mini%20solenoid%20valve%20directly%20controlled%2C%20NC%2C%2012%20VDC?unique=13bdf1f)
|
