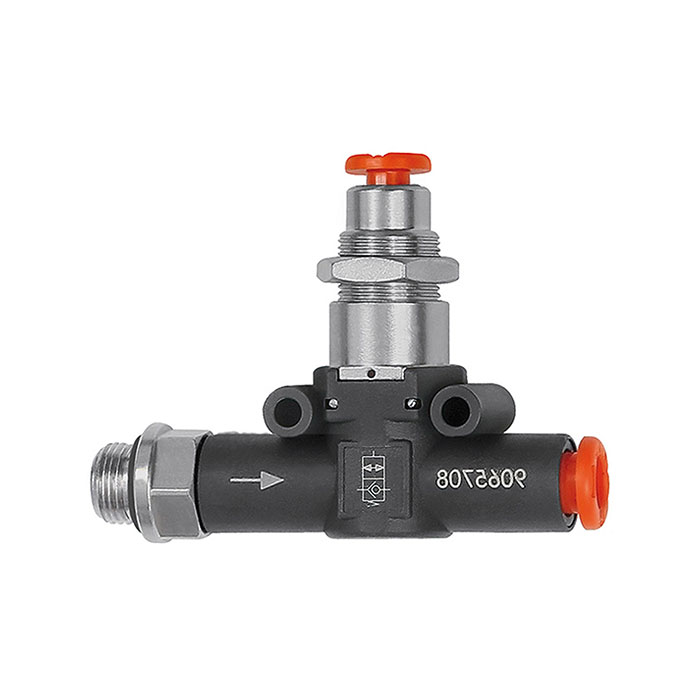

RIEGLER Pneumatically releasable check valve, thread - hose, G 3/8 hose 8
Type number: 494.038-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106825EAN :
4047322390200Weight :
0.14 kgRIEGLER Pneumatic pilot operated check valve, threaded port for pneumatic control, max. 10 bar, G 3/8 - Type 494.038-8
The RIEGLER pneumatic pilot operated check valve, G 3/8, slot 8 controls the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between -20 °C and 60 °C. G 3/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pilot air connection | 4 mm |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 3/8 |
| for hose Ø | 8 mm |
| A | 72.2 mm |
| B | 49.7 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 790 Nl/min |
| I | 18.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106823] RIEGLER Pneumatically releasable check valve, thread - hose, G 1/4 hose 6](/web/image/product.template/175880/image_128/%5B106823%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%2C%20thread%20-%20hose%2C%20G%201-4%20hose%206?unique=5314e09)
|
Type number: 494.014-6 |
29.55 € | |
![[106824] RIEGLER Pneumatically releasable check valve, thread - hose, G 1/4 hose 8](/web/image/product.template/175881/image_128/%5B106824%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%2C%20thread%20-%20hose%2C%20G%201-4%20hose%208?unique=05b170f)
|
Type number: 494.014-8 |
30.29 € | |
![[106821] RIEGLER Pneumatically releasable check valve, thread - hose, G 1/8 hose 6](/web/image/product.template/175878/image_128/%5B106821%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%2C%20thread%20-%20hose%2C%20G%201-8%20hose%206?unique=f33b416)
|
Type number: 494.018-6 |
29.04 € | |
![[106822] RIEGLER Pneumatically releasable check valve, thread - hose, G 1/8 hose 8](/web/image/product.template/175879/image_128/%5B106822%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%2C%20thread%20-%20hose%2C%20G%201-8%20hose%208?unique=cd907fb)
|
Type number: 494.018-8 |
29.74 € | |
