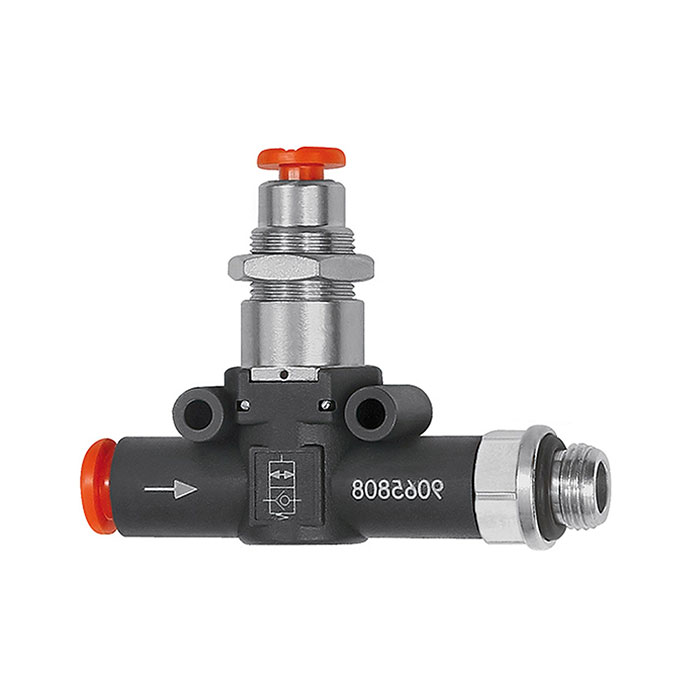

RIEGLER Pneumatically releasable check valve hose-thread, G 1/8 hose 8
Type number: 495.018-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106827EAN :
4047322390248Weight :
0.07 kgRIEGLER Pneum. pilot-operated check valve Slotted thread for pneumatic control, max. 10 bar, G 1/8 - Type 495.018-8
The RIEGLER pneumatic pilot operated check valve, G 1/8, port 8 controls the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between -20 °C and 60 °C. G 1/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pilot air connection | 4 mm |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/8 |
| for hose Ø | 8 mm |
| A | 66.2 mm |
| B | 49.7 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 790 Nl/min |
| I | 18.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106828] RIEGLER Pneumatically releasable check valve hose-thread, G 1/4 hose 6](/web/image/product.template/175885/image_128/%5B106828%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%20hose-thread%2C%20G%201-4%20hose%206?unique=c860c98)
|
Type number: 495.014-6 |
29.55 € | |
![[106829] RIEGLER Pneumatically releasable check valve hose-thread, G 1/4 hose 8](/web/image/product.template/175886/image_128/%5B106829%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%20hose-thread%2C%20G%201-4%20hose%208?unique=ff38621)
|
Type number: 495.014-8 |
30.29 € | |
![[106826] RIEGLER Pneumatically releasable check valve hose-thread, G 1/8 hose 6](/web/image/product.template/175883/image_128/%5B106826%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%20hose-thread%2C%20G%201-8%20hose%206?unique=a11dfd4)
|
Type number: 495.018-6 |
29.04 € | |
![[106830] RIEGLER Pneumatically releasable check valve hose-thread, G 3/8 hose 8](/web/image/product.template/175887/image_128/%5B106830%5D%20RIEGLER%20Pneumatically%20releasable%20check%20valve%20hose-thread%2C%20G%203-8%20hose%208?unique=6eb7707)
|
Type number: 495.038-8 |
31.38 € | |
