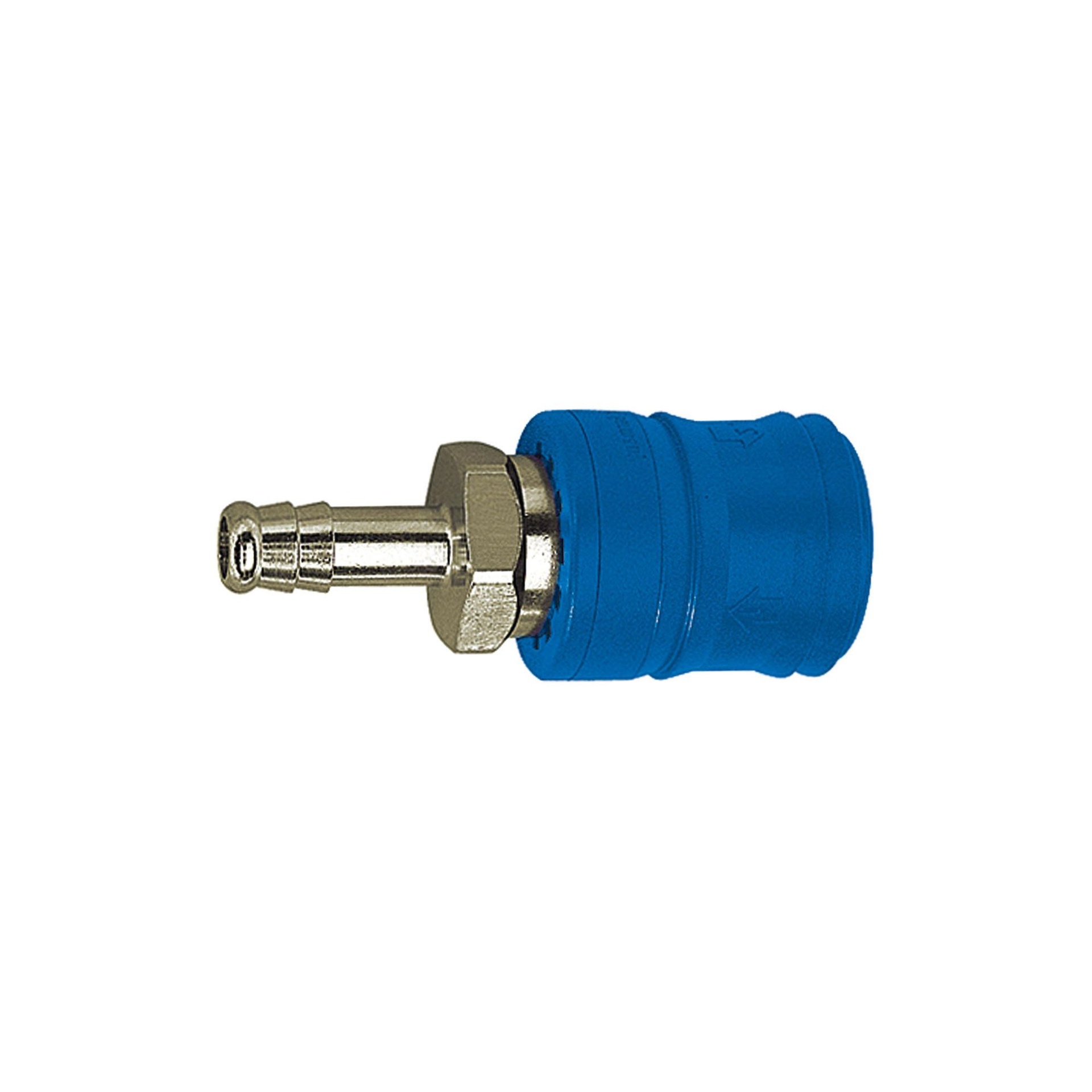

RIEGLER Safety coupling I.D. 7.4, KE type, nickel-plated brass, I.D. 13
Type number: 249.85
EAN: 4047322062640
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Safety coupling NW 7.4, type KE, nickel-plated brass, spout LW 13, max. operating pressure 12 bar, medium/ambient temp. -20°C to 60°C
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Flow rate | 1300 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve pin | Stainless steel |
| Valve body | Nickel-plated brass |
| Snap ring | Stainless steel |
| Unlocking sleeve | Plastic |
| Valve | Brass |
| Operating pressure | max. 12 bar, static operating pressure (without pulsation) |
| SW | 22 mm |
| NW | 7.4 |
| Length | 71.2 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 13 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
