RIEGLER Storz coupling, Hose supports, rotating, Storz size 65, I.D. 52
Type number: 2401.8152
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Storz-Kupplung, Schlauchstutzen, drehbar, Alu, Storz-Größe 65, LW 52, Betriebsdruck max. 16 bar, Betriebstemp. -40 °C bis 110 °C
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Aluminum |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 110 °C |
| Length | 99 mm |
| Storz size | 65 |
| Bend spacing | 81 mm |
| Hose LW | 52 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108195] RIEGLER Storz coupling, Hose supports, rotating, Storz 110-A, I.D. 100](/web/image/product.template/192093/image_128/%5B108195%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20110-A%2C%20I.D.%20100?unique=429e95a)
|
Type number: 2401.133100 |
48.48 € | |

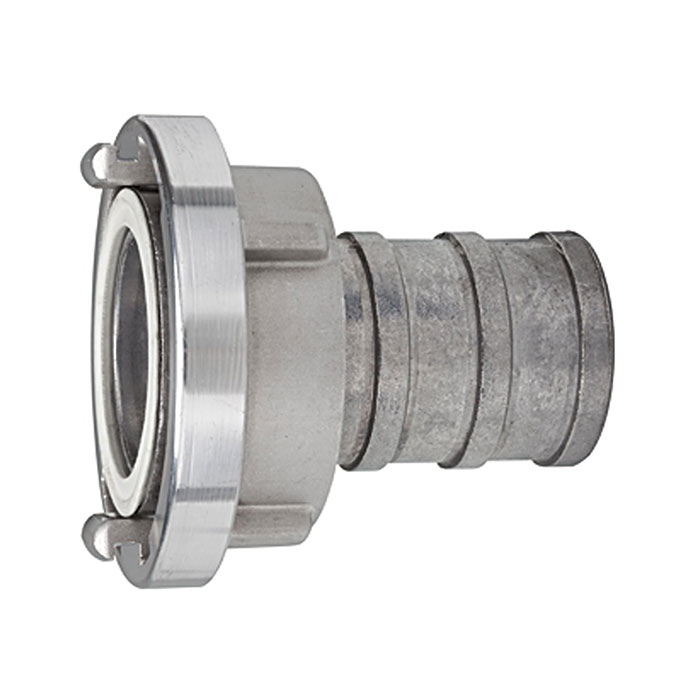

![[108194] RIEGLER Storz coupling, Hose supports, rotating, Storz 110-A, I.D. 90](/web/image/product.template/192092/image_128/%5B108194%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20110-A%2C%20I.D.%2090?unique=bda0078)
|
Type number: 2401.13390 |
68.46 € | |
![[108193] RIEGLER Storz coupling, Hose supports, rotating, Storz size 100, I.D. 100](/web/image/product.template/192091/image_128/%5B108193%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%20100%2C%20I.D.%20100?unique=c548e64)
|
Type number: 2401.115100 |
50.43 € | |
![[108171] RIEGLER Storz coupling, Hose supports, rotating, Storz size 25-D, I.D. 19](/web/image/product.template/192069/image_128/%5B108171%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2025-D%2C%20I.D.%2019?unique=95651ab)
|
Type number: 2401.3119 |
13.03 € | |
![[108172] RIEGLER Storz coupling, Hose supports, rotating, Storz size 25-D, I.D. 25](/web/image/product.template/192070/image_128/%5B108172%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2025-D%2C%20I.D.%2025?unique=0874a8e)
|
Type number: 2401.3125 |
10.26 € | |
![[108173] RIEGLER Storz coupling, Hose supports, rotating, Storz size 32, I.D. 19](/web/image/product.template/192071/image_128/%5B108173%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2032%2C%20I.D.%2019?unique=fb842b8)
|
Type number: 2401.4419 |
26.54 € | |
![[108174] RIEGLER Storz coupling, Hose supports, rotating, Storz size 32, I.D. 25](/web/image/product.template/192072/image_128/%5B108174%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2032%2C%20I.D.%2025?unique=b66a6e9)
|
Type number: 2401.4425 |
26.54 € | |
![[108175] RIEGLER Storz coupling, Hose supports, rotating, Storz size 32, I.D. 32](/web/image/product.template/192073/image_128/%5B108175%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2032%2C%20I.D.%2032?unique=dc72777)
|
Type number: 2401.4432 |
20.60 € | |
![[108176] RIEGLER Storz coupling, Hose supports, rotating, Storz size 38, I.D. 25](/web/image/product.template/192074/image_128/%5B108176%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2038%2C%20I.D.%2025?unique=71944f3)
|
Type number: 2401.5125 |
26.54 € | |
![[108177] RIEGLER Storz coupling, Hose supports, rotating, Storz size 38, I.D. 32](/web/image/product.template/192075/image_128/%5B108177%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2038%2C%20I.D.%2032?unique=407ea93)
|
Type number: 2401.5132 |
26.54 € | |
![[108178] RIEGLER Storz coupling, Hose supports, rotating, Storz size 38, I.D. 38](/web/image/product.template/192076/image_128/%5B108178%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2038%2C%20I.D.%2038?unique=fdd2a51)
|
Type number: 2401.5138 |
17.96 € | |
![[108179] RIEGLER Storz coupling, Hose supports, rotating, Storz size 52-C, I.D. 25](/web/image/product.template/192077/image_128/%5B108179%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2052-C%2C%20I.D.%2025?unique=5c183fe)
|
Type number: 2401.6625 |
19.94 € | |
![[108180] RIEGLER Storz coupling, Hose supports, rotating, Storz size 52-C, I.D. 32](/web/image/product.template/192078/image_128/%5B108180%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2052-C%2C%20I.D.%2032?unique=3a9fb97)
|
Type number: 2401.6632 |
17.43 € | |
![[108181] RIEGLER Storz coupling, Hose supports, rotating, Storz size 52-C, I.D. 38](/web/image/product.template/192079/image_128/%5B108181%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2052-C%2C%20I.D.%2038?unique=c4c9d01)
|
Type number: 2401.6638 |
17.43 € | |
![[108182] RIEGLER Storz coupling, Hose supports, rotating, Storz size 52-C, I.D. 42](/web/image/product.template/192080/image_128/%5B108182%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2052-C%2C%20I.D.%2042?unique=0d34031)
|
Type number: 2401.6642 |
19.94 € | |
![[108183] RIEGLER Storz coupling, Hose supports, rotating, Storz size 52-C, I.D. 52](/web/image/product.template/192081/image_128/%5B108183%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2052-C%2C%20I.D.%2052?unique=76f07b5)
|
Type number: 2401.6652 |
14.38 € | |
![[108184] RIEGLER Storz coupling, Hose supports, rotating, Storz size 65, I.D. 38](/web/image/product.template/192082/image_128/%5B108184%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2065%2C%20I.D.%2038?unique=289e360)
|
Type number: 2401.8138 |
28.14 € | |
![[108186] RIEGLER Storz coupling, Hose supports, rotating, Storz size 65, I.D. 65](/web/image/product.template/192084/image_128/%5B108186%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2065%2C%20I.D.%2065?unique=d1f9395)
|
Type number: 2401.8165 |
21.56 € | |

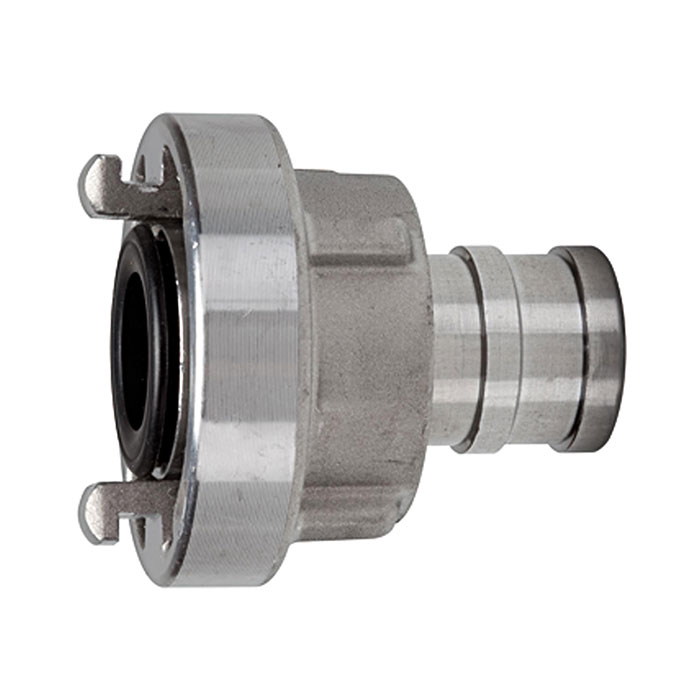

![[108187] RIEGLER Storz coupling, Hose supports, rotating, Storz size 65, I.D. 75](/web/image/product.template/192085/image_128/%5B108187%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2065%2C%20I.D.%2075?unique=267fe8e)
|
Type number: 2401.8175 |
22.18 € | |
![[108188] RIEGLER Storz coupling, Hose supports, rotating, Storz size 75-B, I.D. 65](/web/image/product.template/192086/image_128/%5B108188%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2075-B%2C%20I.D.%2065?unique=9f9710b)
|
Type number: 2401.8965 |
25.63 € | |
![[108189] RIEGLER Storz coupling, Hose supports, rotating, Storz size 75-B, I.D. 70](/web/image/product.template/192087/image_128/%5B108189%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2075-B%2C%20I.D.%2070?unique=64fad48)
|
Type number: 2401.8970 |
33.63 € | |
![[108190] RIEGLER Storz coupling, Hose supports, rotating, Storz size 75-B, I.D. 75](/web/image/product.template/192088/image_128/%5B108190%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2075-B%2C%20I.D.%2075?unique=323710d)
|
Type number: 2401.8975 |
21.56 € | |
![[108191] RIEGLER Storz coupling, Hose supports, rotating, Storz size 75-B, I.D. 80](/web/image/product.template/192089/image_128/%5B108191%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2075-B%2C%20I.D.%2080?unique=972e7bb)
|
Type number: 2401.8980 |
26.54 € | |
![[108192] RIEGLER Storz coupling, Hose supports, rotating, Storz size 90, I.D. 90](/web/image/product.template/192090/image_128/%5B108192%5D%20RIEGLER%20Storz%20coupling%2C%20Hose%20supports%2C%20rotating%2C%20Storz%20size%2090%2C%20I.D.%2090?unique=ce15a16)
|
Type number: 2401.10590 |
60.31 € | |
